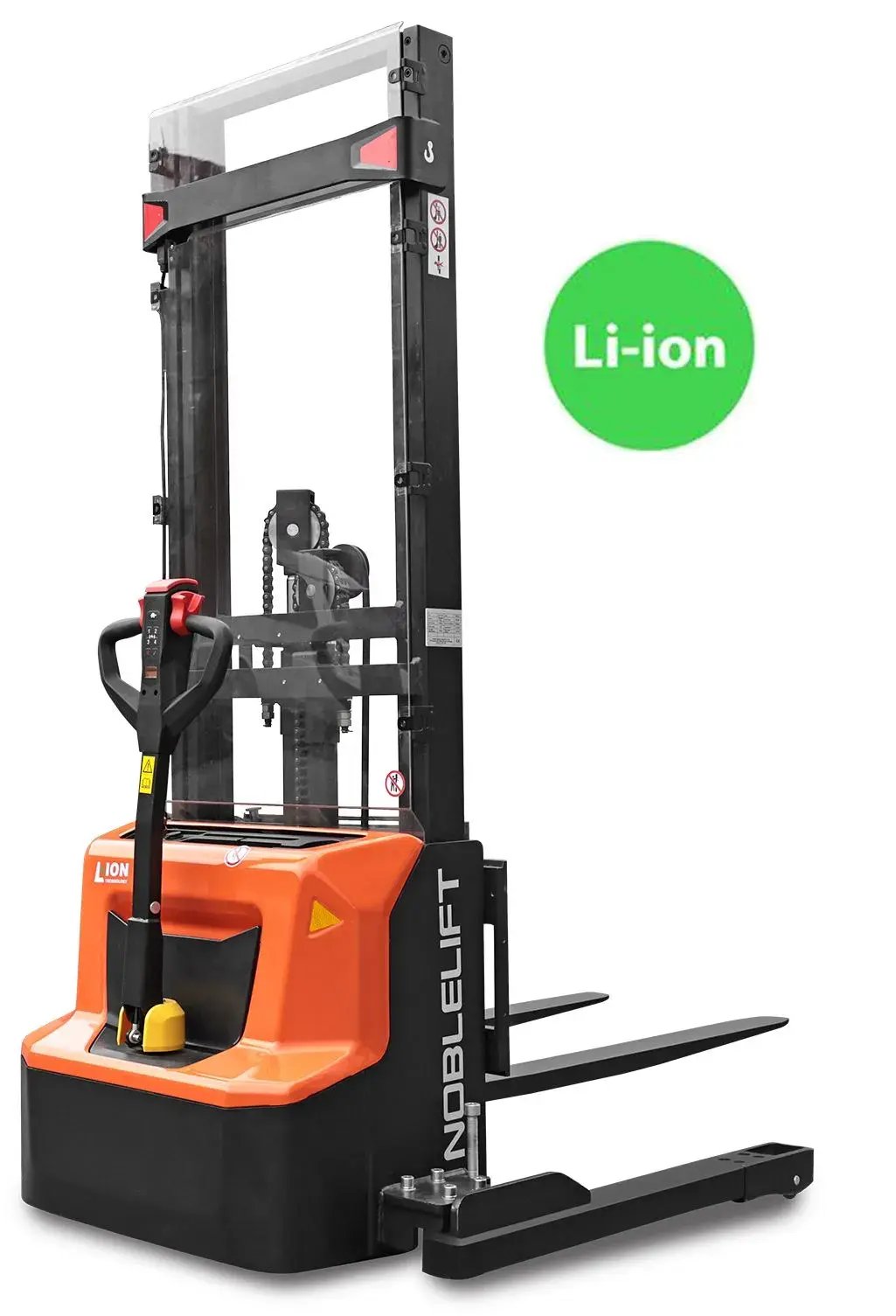

Noblelift PSX30 Lithium Straddle Stacker

The PSX30 Lithium Walkie Straddle Stackers, capable of 3,000 lbs. load capacities, are economical, quiet, very low maintenance, ultra-smooth, and are perfect for light and medium duty material handling. They offer Full Free Lift heights from 51.2" to 70.9" and lifting heights from 100" to 167". Their compact design, small turning radius and full free lifting mast make them ideal for supermarkets, internal workshops, loading docks, narrow aisles, and applications within confined spaces like retail stores, trailers, containers, and warehouses.

This ergonomic stacker has a fast-charging maintenance-free lithium battery, a built-in charger, and can be opportunity charged, allowing for longer use throughout multiple work shifts. Highly Productive - Competitively priced - One of the best values on the market.

Full Free Lift Mast - The full free lift mast allows the forks to be raised to a significant height without extending the inner mast channels, allowing operation within spaces with limited overhead clearance.

Soft Start Technology - Engineered with soft start technology for enhanced stability and controlled lifting.

Auto Speed ReductionAutomatic speed reduction, while turning, helps to prevent product damage.

Smart Lithium BatteryEquipped with a maintenance-free Lithium battery and a built-in charger, the PSX30 offers fast charging and opportunity charging, allowing you to charge between operations and during breaks.

The integrated BMS (Battery Management System) - controls all important parameters and performance of the lithium battery.

3-Point Structure Design - Centered drive wheel provides excellent traction and stability. Casters are located to the left and right for additional stability. Straddle legs are equipped with single rollers.

Increased Strength and Durability - Innovative steel CJ channel mast design delivers added strength, stability and performance.

Smart Ergonomic Tiller with Keyless PIN Code Panel and RFID Card - Ergonomic design for comfortable daily operation. Includes battery discharge indicator, operating hour counter, and on-board diagnostics via error codes.

Turtle Speed Button - Pinwheel Capability - By holding the Turtle button down, the stacker will operate with the handle in the upright position, providing safe and easy operation within confined spaces.

Dual Butterfly-Style Thumb Controls for traveling. Emergency reverse, horn and electric lifting and lowering buttons.

Increased Safety – Wide MastA wide mast provides operator with a clear view of the forks.

Adjustable Straddle Legs - Adjustable straddle leg design is suitable for diverse pallet sizes and the legs are made of solid steel for stability and safety.

Curtis Controller and CAN-BUS Technology - CAN-BUS technology makes analysis and adjustments easier, reducing downtime.

Easy-Maintenance - Convenient and fast access to any component of the truck. No Special tools are required.

MODEL PSX30-100 PSX30-112 PSX30-124 PSX30-140 PSX30-167

Unit Type Lithium Electric Walkie Straddle Stacker

Load Capacity 3,000lb 3,000lb 3,000lb 3,000lb 3,000lb

Load Center 24" 24" 24" 24" 24"

Power 24 volt / 100Ah Lithium-iron LFP Battery

Battery Charger Built-in 24V/25A 110V

Fork Dimensions 42" Standard

Max Lift Height 100" 110" 122" 138" 167"

Min Lift Height 2" 2" 2" 2" 2"

Mast Stages 2 2 2 2 3

Turning Radius 53" 53" 53" 53" 53"

Vehicle Dimensions Download Brochure

Travel Speed Download Brochure
