Why should I switch from manual hand-wrapping to a pallet stretch wrapper machine?

Pallet stretch wrapper machines provide consistent tension that manual wrapping cannot achieve, reducing shipping damage caused by shifting loads. They also use up to 50% less film, helping offset costs through material savings and reduced labor.

What is pre-stretch in a pallet stretch wrapper machine and why does it matter?

Pre-stretch refers to the mechanical stretching of film—often up to 250%—before it is applied to a pallet. This maximizes film yield and strength, allowing more pallets to be wrapped with less material while maintaining load stability.

Can pallet stretch wrapper machines handle irregular or unstable loads?

Yes, pallet stretch wrapper machines feature programmable wrap cycles that can be adjusted for top-heavy or irregular loads. Additional wraps can be applied to the base or top to ensure stability during transport.

Are there mobile pallet stretch wrapper machine options available?

Yes, mobile robot-style pallet stretch wrapper machines are available. These units move around the pallet instead of requiring a turntable, making them ideal for wrapping oversized or extremely heavy loads.

How much floor space is needed for a pallet stretch wrapper machine?

Most standard turntable pallet stretch wrapper machines require approximately an 8-foot by 10-foot footprint to allow for safe operation. Compact or low-profile models are also available for facilities with limited space.

What maintenance does a pallet stretch wrapper machine require?

Maintenance is minimal and typically includes lubricating chains, inspecting film carriage rollers, and keeping sensors clean. Regular upkeep ensures consistent performance and accurate pallet height detection.

Are pallet stretch wrapper machines compatible with different types of stretch film?

Yes, pallet stretch wrapper machines are compatible with a wide range of film gauges, from ultra-thin to heavy-duty wraps. Proper calibration of tension settings ensures optimal performance for each film type.

Home /
Stretch Wrappers

Stretch Wrappers

Semi-automatic stretch wrappers are machines designed to efficiently wrap palletized loads with stretch film, improving stability and protection during storage or transport. Operators manually attach the film to the load, while the machine automatically wraps and applies consistent tension for secure coverage. These wrappers increase productivity, reduce film waste, and provide a cost-effective solution for medium-volume packaging operations.

Semi-automatic stretch wrap machines significantly improve your packaging operations. They can drastically reduce the time needed to wrap pallets compared to your current manual processes. Save both time and money with our robust line of semi-automatic pallet wrappers.

Choose from one of several models below and click on the one that best fits your needs.

Need help determining which one is right for you? Check out our comparison table below.

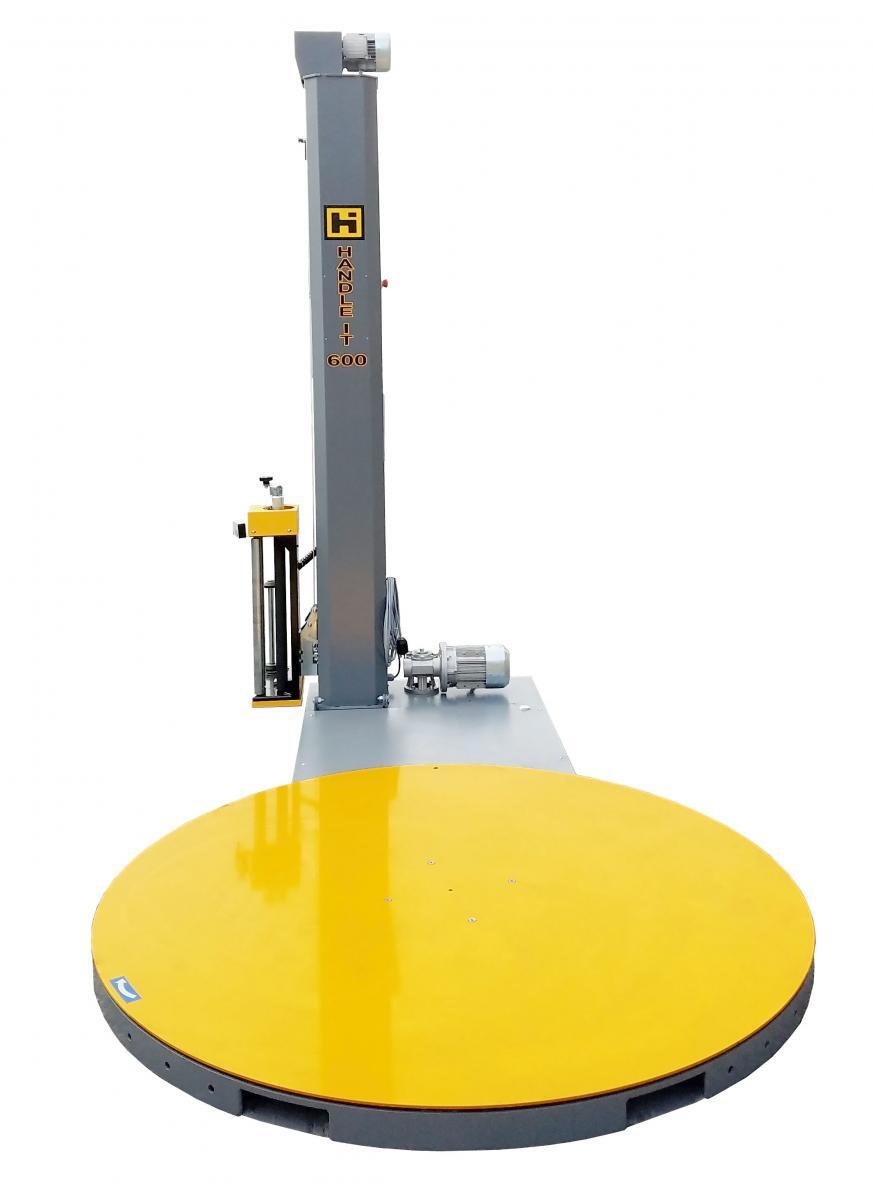

Model (SWM-SA – 0###)	600	800	850PS	1100	1200UL	2200	2300
Max Average Loads Per Day	20	100	100	300	200	300	300
Load Capacity	2600lbs.	4400lbs.	4400lbs.	4400lbs.	2600lbs.	Unlimited	Unlimited
Machine Dimensions (L x W x H)	93” x 59” x 88”	93” x 59”x 88”	93” x 59” x 88”	104” x 59” x 97”	119” x 82” x 95”	125” L x 113” W x 140” H	125” L x 113” W x 140” H
Load Dimensions (L x W x H)
Photo Eye	✓	✓	✓	✓	✓	–	–
Electronic Film Tension Control	–	✓	✓	✓	✓	✓	✓
Power Pre-Stretch 250%	–	–	✓	✓	✓	✓	✓
Variable Power Pre-Stretch (600%)	–	–	–	Optional	Optional	Yes	Yes
Auto Film Cut	–	–	–	Optional	Optional	Optional	Optional
Max Wrap Height	86”	86”	86”	94”	94”	94″	94″
Extended Mast Wrap Height.	–	98”	98”	118”	118”	118”	118”
Custom Top & Bottom Wraps	✓	✓	✓	✓	✓
Rack & Pinion Carriage Drive	–	✓	✓	✓	✓	✓	✓
Integrated Scale	Optional	Optional	Optional	Optional	–	Floor scale recommended	Floor scale recommended
Playback Recordable Cycles	–	✓	✓	–	–	–	–
Onboard Diagnostics	–	–	–	✓	✓	✓	✓
Total pallets wrapped counter	✓	✓	✓	✓	✓	✓	✓
# Of Cycle Parameters	7	6	6	57	57
# Of User Saved Cycle Programs	3	9 regular & 9 recordable		32	32	32	32
Quick Select Parameters	–	–	–	✓	✓	✓	✓
Ergonomic Film Change	–	–	–	✓	✓	✓	✓

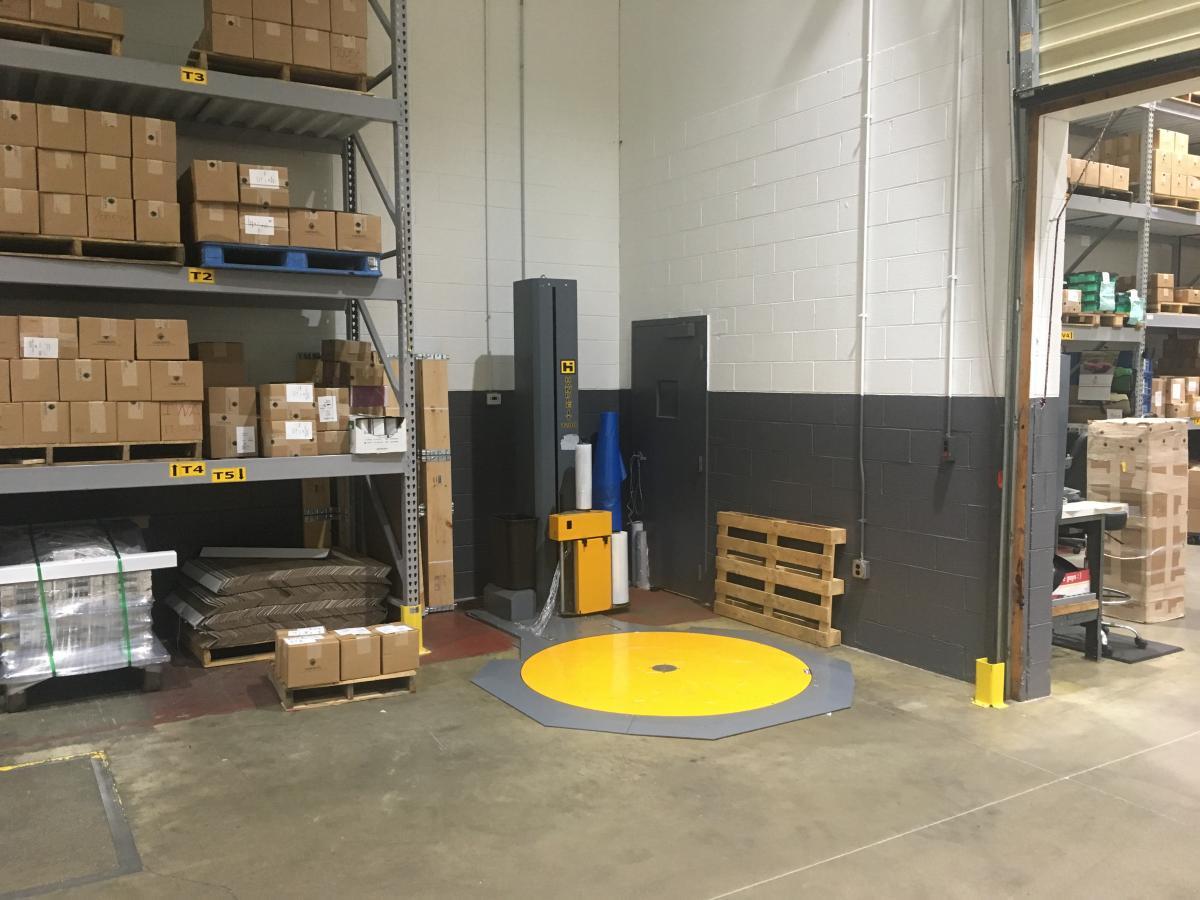

Patented Ultra Low Frame No Ramp Needed, Turntable height less than 3/4”					✓	–	–

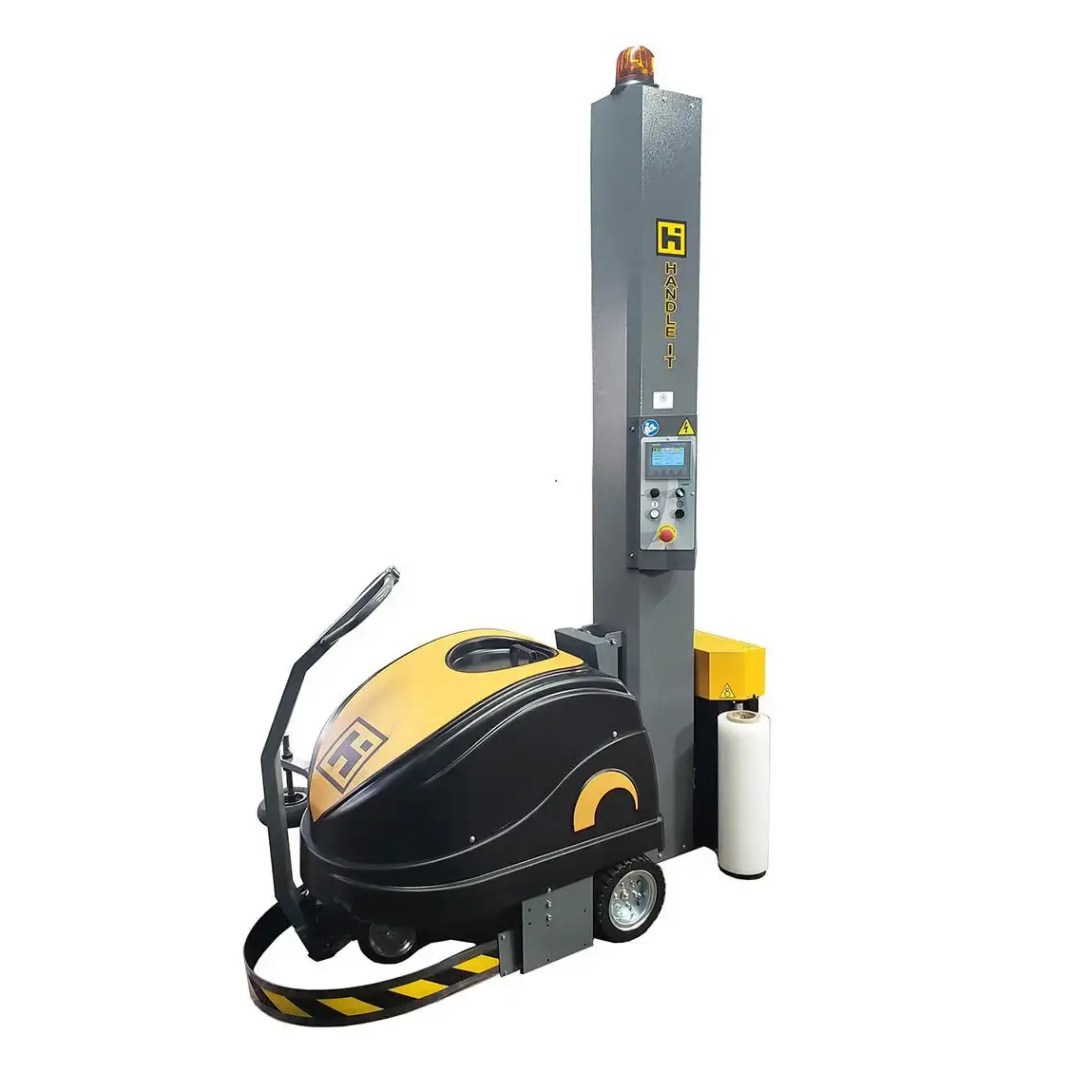

Mobile-Robot-Stretch-Wrapper-Model-MR3000-Handle-It

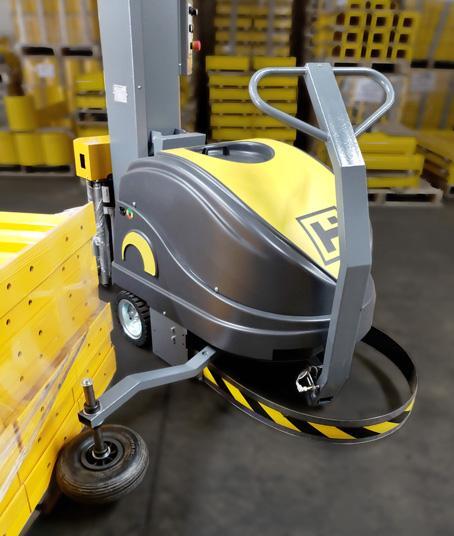

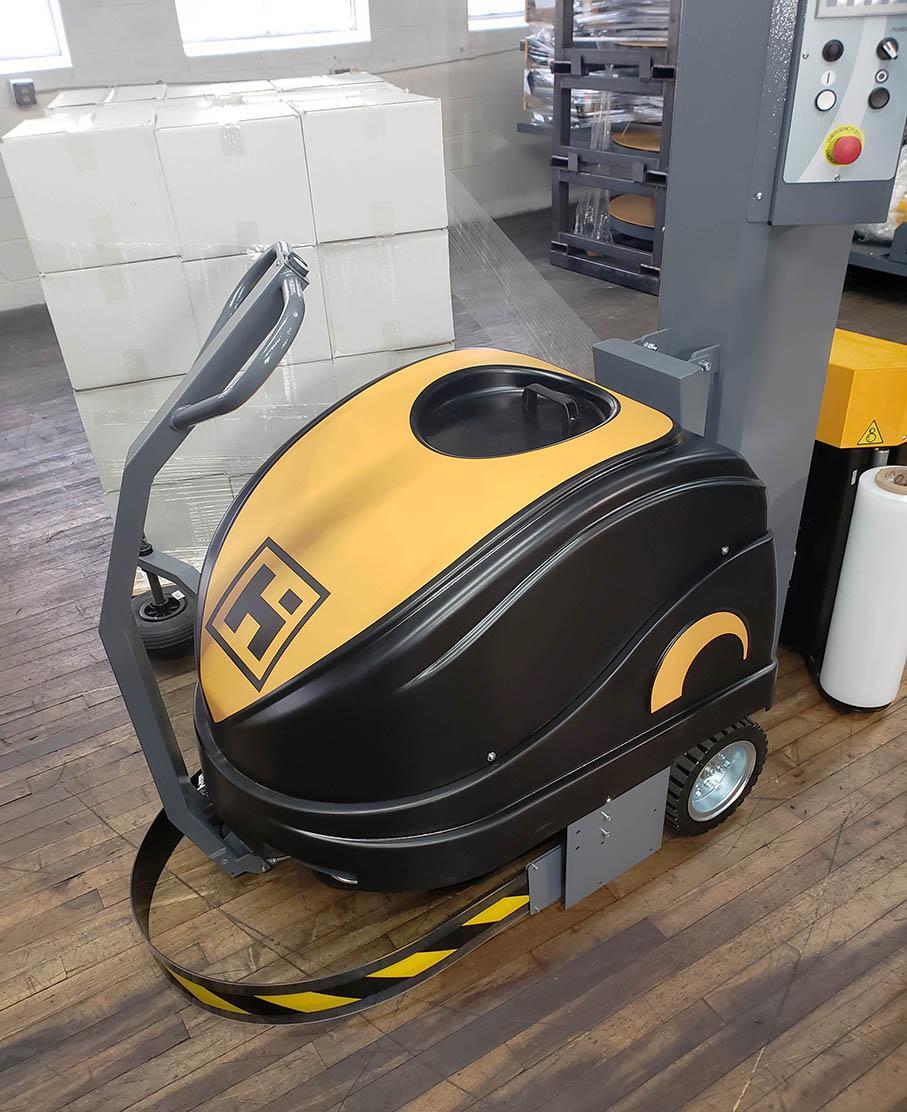

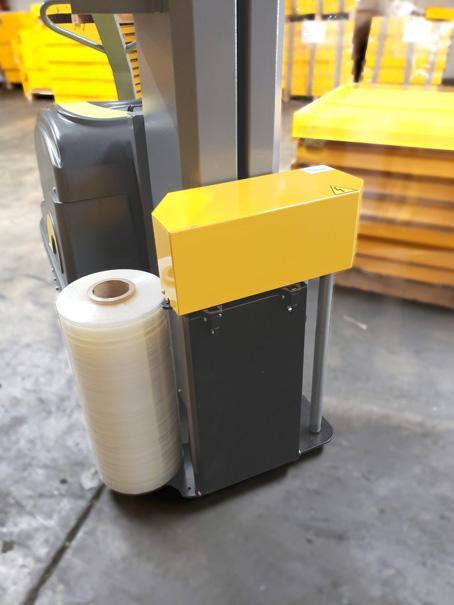

Mobile pallet wrappers are capable of wrapping very long, heavy, or unsteady pallet loads. These types of machines are ideal for locations that lack a central shipping area. Since they are portable, you can move them from one pallet to the next in a shipping area. You can then put the machine away when you are finished.

Mobile-Robot-Stretch-Wrapper-Model-MR-3000-1

Handle-It-robotic-mobile-pallet-wrapper-model-3000-sm-1

Handle-It-mobile-pallet-wrapper-model-3000-rear-view-sm_0-2

Main Features

Mobile Stretch Wrap Machine for Pallets of All Sizes & Weights
250% Powered Film Pre-Stretch Carriage
Wraps Unstable, Heavy, or Irregular Loads Without Rotation

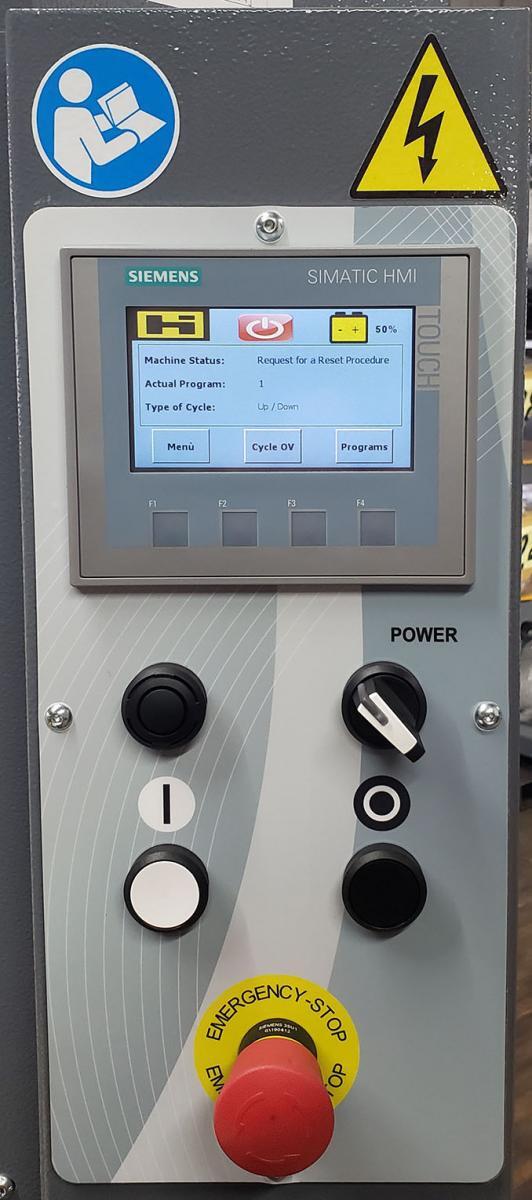

Programmable Control Panel with Custom Wrap Cycles
Battery Powered (Charger Included)
Compact and Maneuverable Frame Design

Product Specifications

Battery Operated (Standard Battery & Charger Included)
250% Powered Film Pre-Stretch
Wrap Height: up to 86″
Adjustable Wrap Cycles (Top/Bottom Wraps)
LED Display for Settings and Monitoring
Charge Time: Approx. 8 hours
Up to 120 loads per charge (varies by wrap cycle)
Machine Dimensions: 71” L x 31” W x 48” H

Why should I switch from manual hand-wrapping to a stretch wrap machine?

Machines provide consistent tension that human hands can't match, which significantly reduces shipping damage caused by shifting loads. Additionally, automated wrappers use up to 50% less film, paying for themselves through material savings and reduced labor hours.

What is "pre-stretch" and why does it matter?

Powered pre-stretch carriages mechanically stretch the film up to 250% or more before it is applied to the pallet. This process maximizes the film's yield and strength, allowing you to wrap more pallets with a single roll of plastic.

Can these machines handle irregular or unstable pallet loads?

Yes, our wrappers feature programmable wrap cycles that can be adjusted for top-heavy or lightweight loads. The machines can apply "extra wraps" at the base or top to ensure that even the most awkward shapes stay secure during transport.

Does Big Joe offer mobile stretch wrappers?

We offer robot-style mobile wrappers that navigate around the pallet rather than spinning it on a turntable. This is the perfect solution for extremely heavy or oversized loads that are difficult to move onto a standard machine.

How much floor space is required for a turntable stretch wrapper?

Most standard turntable models require a roughly 8-foot by 10-foot footprint to allow for the machine and safe operator movement. For facilities with very limited space, we can discuss low-profile or integrated models that fit into your existing workflow.

What maintenance do stretch wrap machines require?

These machines are relatively low-maintenance, requiring only periodic lubrication of chains and inspection of the film carriage rollers. Keeping the sensors clean and free of dust ensures the machine correctly identifies the height of every pallet automatically

Are these wrappers compatible with different types of stretch film?

Our machines are designed to work with a wide range of film gauges, from ultra-thin high-performance films to heavy-duty wraps. We can help you calibrate the tension settings to ensure your specific film choice performs at its highest level.
