Walkie stackers are compact machines used to lift, stack, and transport pallets in tight spaces. They’re ideal for warehouses, retail stores, and small storage areas where larger forklifts can’t easily maneuver, providing an efficient solution for handling materials at lower to medium lift heights.
Big Joe's award-winning line of walkie stackers have set the industry standard since day one. Big Joe offers both straddle stackers with a tight turning radius, as well as counter-balance stackers that have the ability to maneuver in and out of trailers.
Straddle Stackers

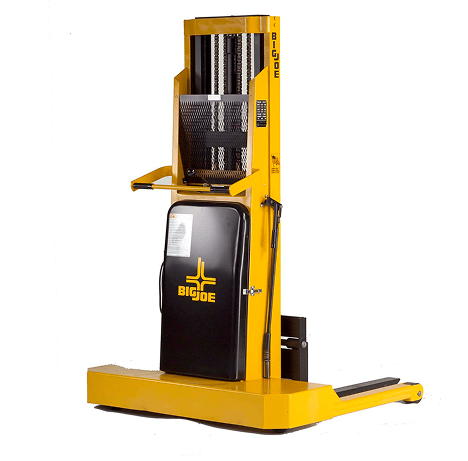

IBH (In-Between Handling) Lift Truck
Capacity: 1,000 - 2,500 lbs.
Features
- 1,000 to 2,000lb. Capacity depending on vehicle configuration
- 12volt electrical power with built-in battery pack and charger
- Premium steel frame construction protects components and reduces maintenance.
- Premium steel mast construction provides extended service life and load stability.
- Compact vehicle design provides exceptional maneuverability in tight areas.
- Shaft type forks provide for easy adjustment.
- Chrome plated lift cylinder with pressure compensation lowering valves.
- A wide variety of vehicle options to meet your specific application needs.
- Optional add on attachments designed for a variety of special industry applications.
Specifications
|
Vehicle Type
|
Manual straddle stacker
|
|
Capacity
|
1,000lbs. to 2,000lbs. @ 18” or 24” load center
|
|
Power
|
12 volt electric with battery pack and charger
|
|
Max Lift Height
|
Masts available from 57” to 144”
|
|
Collapsed Height
|
Based on configuration and max lift height |
|
Fork Dimensions
|
A wide variety of options available
|
|
Vehicle Dimensions
|
Varies see media tab to download product sheet
|
|
Turning Radius
|
As little as 46” up to 54.25” depending on model
|
|
Battery Capacity
|
105AH / 125 AH/ 155AH available
|
|
Charger
|
Internal included
|

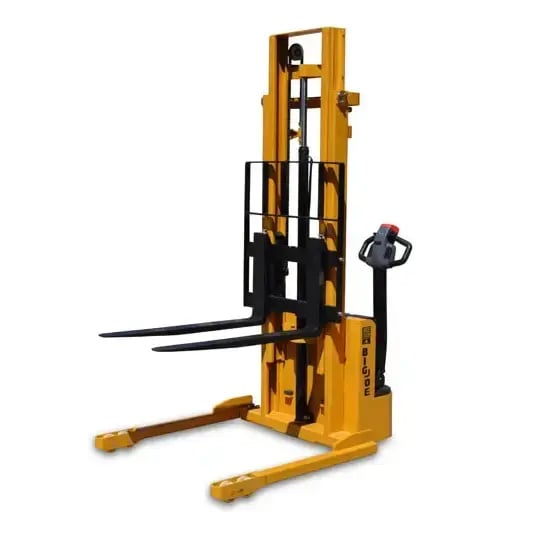

S22 - S22-R Walkie Stacker
Capacity: 2,200 lbs.
Features
- 24 volt system
- High efficiency drive motors.
- Adjustable straddles. S22-62R Fork over configuration available.
- Infinitely variable speed operation for tight turning in close quarters
- Ergonomic handle with safety reversing switch and horn
- Maintenance free integral batteries and 110volt charger
- Battery discharge indicator, Emergency power disconnect
- Key switch to limit access to approved personnel
Specifications
| Vehicle Type | Walkie Straddle Stackers |
| Capacity | 2,200lbs. @ 24” load center |
| Power | 24 volt - S22 DC / S30 AC |
| Max Lift Heights | S22 62", 96", 116" |
| Fork Dimensions | 42" x 4" x 1.5" / S22-62R 45" x 22" |
| Vehicle Dimensions | See specification sheet |
| Turning Radius | See specification sheet |
| Travel Speed | 2.5 mph |
| Battery Compartment | See specification sheet |
| Battery Capacity | S22 60AH to 85AH |
| Charger | Integral to pack, 110v plug-in |

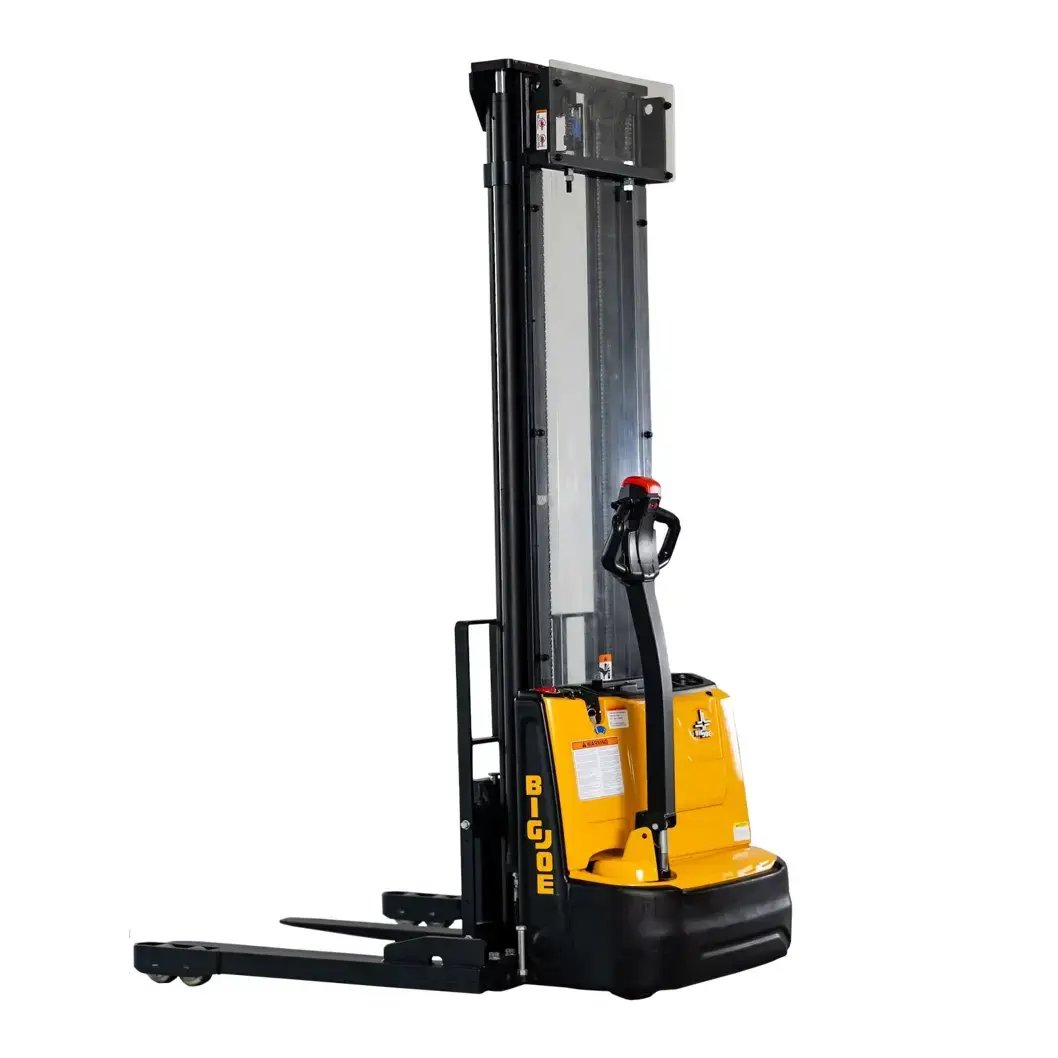

S26 Walkie Stacker
Capacity: 2,600 lbs.
Features
- 24V infinitely variable travel control
- DC drive and lift motor
- UL-recognized 24V 100Ah lithium-ion bettery
- 30A, 120 VAC integral, plug-in smart charger
- Adjustable straddle legs: 42" to 51" in 3" increments
- Offset control handle, thumb control travel functions
- Lift and lowering controls in the handle
- Battery discharge indicator, hour meter, and key switch
Specifications
Drive: Electric
Load capacity: 2,600lbs.
Load center distance: 24 inches
Load distance, center of drive axle to fork: 30.4 inches
Wheelbase: 48.6 inches
Service weight: 1808 lbs.
Axle loading, laden (front/rear) lb. 1698 / 2756
Axle loading, unladen (front/rear) lb. 1323 / 485
Wheel type: Polyurethane
Wheel size, front in. 8.5 x 3
Wheel size, rear in. 4 x 2
Additional wheels in. 5 x 2
Wheels, number (front/rear) - x=drive wheels 1x, 1/4
Tread width, front in. 21.4
Tread width, rear in. 42.1 / 45.1 / 48.1 / 51.1
Max lift height: in. 149
Retracted mast height: in. 83
Extended mast height: in. 185
Height of tiller handle in drive position (min / max) in. 30 / 45
Height of base legs: in.4
Lowered height in. 2.5
Overall lengthin. 67.7
Length to face of forks in. 25.6
Fork dimensions in. 1.6 x 4 x 42
Fork carriage width in. 32.5
Fork spread in. 7.9 - 30.7
Distance between base legs and loading surfaces in. 39 / 42 / 45 / 48
Ground clearance, laden, below mast in. 1.2
Ground clearance, center of wheelbase in. 1.6
Right angle stack (assumes 40” W x 48” D pallet Ast in. 84.6” + Clearance
Turning radius in. 58

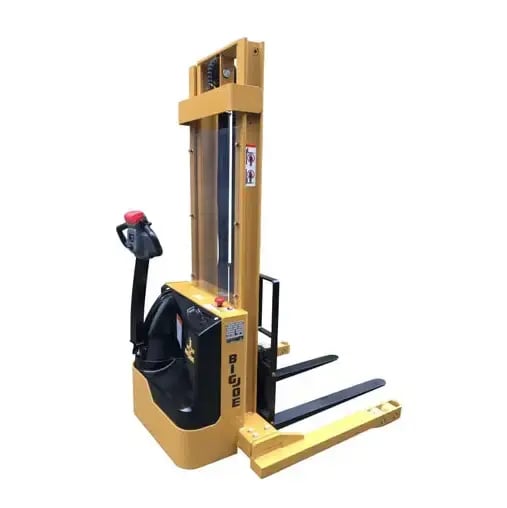

S30 Walkie Straddle Stacker
Capacity: 3,000 lbs.
Features
- 24volt system
- High efficiency drive motors.
- Adjustable straddles. S22-62R Fork over configuration available.
- Infinitely variable speed operation for tight turning in close quarters
- Ergonomic handle with safety reversing switch and horn
- Maintenance free integral batteries and 110volt charger
- Battery discharge indicator, Emergency power disconnect
- Key switch to limit access to approved personnel
Specifications
| Vehicle Type | Walkie Straddle Stackers |
| Capacity | 3,000lbs. @ 24” load center |
| Power | 24 volt - S22 DC / S30 AC |
| Max. Lift Heights | S30 128" |
| Fork Dimensions | 42" x 4" x 1.5" |
| Vehicle Dimensions | See specification sheet |
| Turning Radius | See specification sheet |
| Travel Speed | 2.5 mph |
| Battery Compartment | Integral |
| Battery Capacity | 100AH |
| Charger | Integral to pack, 110v plug-in |
PDS25 Straddle Truck
Capacity: 2,500 lbs.
Features
- 24 volt ZAPI transistor control
- High torque AC drive motor.
- Double reduction helical ZF GK10 transmission
- Shaft mounted electromechanical brake
- Creep speed operation for tight turning in close quarters
- Ergonomic handle with safety reversing switch and horn
- 224AH Maintenace free battery pack with integral charger
- Battery discharge indicator with hour meter
- Key switch to limit access to approved personnel
Specifications
|
Vehicle Type
|
Walkie Straddle Stackers
|
|
Capacity
|
2,500lbs. @ 24” load center
|
|
Power
|
24 volt AC electric with ZAPI transistor control-inverter
|
|
Max Lift Height
|
Masts available up to 157"
|
|
Collapsed Height
|
Masts available as low as 71"
|
|
Fork Dimensions
|
42" L x 4" W x 1.5" Thick |
|
Vehicle Dimensions
|
64.5" OAL x 44" OAW
|
|
Turning Radius
|
60.7" |
|
Travel Speed
|
Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded)
|
|
Battery Compartment
|
26.37” x 9.06” x OPEN
|
|
Battery Capacity
|
224AH Maintenace free battery pack
|
|
Charger
|
Integral to pack, 110v plug-in
|
PDS30-40 Straddle Truck
Capacity: 2,200 lbs.
Features
- 24volt ZAPI transistor control
- High torque AC drive motor.
- Double reduction helical ZF GK10 transmission
- Shaft mounted electromechanical brake
- Creep speed operation for tight turning in close quarters
- Ergonomic handle with safety reversing switch and horn
- 224 AH Maintenace free battery pack
- Battery discharge indicator with hour meter
- Key switch to limit access to approved personnel
Specifications
|
Vehicle Type
|
Walkie Straddle Stackers
|
|
Capacity
|
3,000lbs./4,000lbs. @ 24” load center
|
|
Power
|
24 volt AC electric with ZAPI transistor control-inverter
|
|
Max Lift Height
|
Masts available up to 177"
|
|
Collapsed Height
|
Masts available as low as 71"
|
|
Fork Dimensions
|
42" L x 4" W x 1.5" Thick |
|
Vehicle Dimensions
|
See specification sheet |
|
Turning Radius
|
See specification sheet |
|
Travel Speed
|
Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded)
|
|
Battery Compartment
|
26.37” x 9.06” x OPEN
|
|
Battery Capacity
|
224AH Maintenance free battery pack
|
|
Charger
|
Integral to pack, 110v plug-in
|
WS25-40 Walkie Stacker
Capacity: 2,500 - 4,000 lbs.
Features
- Class-leading performance and maneuverability
- Proportional hydraulic controls for steady and precise load handling
- Maintenance-free Lithium-ion battery
- Onboard battery charger plugs into standard 120V outlets
- Adjustable performance modes via main display tailor to the operator
- Operator convenience tray and USB charging ports
- Adjustable width straddle legs
- Wide view mast for visibility of fork tips and load
Specifications
| Vehicle Type | High Performance Straddle Stackers |
| Capacity | 2,500-4,000 lbs |
| Fork Dimensions | 42" x 4" x 1.6" |
| Vehicle Dimensions | See specification sheet |
| Turning Radius | See specification sheet |
| Max Travel Speed (mph) | 3.1 laden/3.4 unladen |
| Battery | 24V / 100Ah |
| Charger | Integral to pack, 110v plug-in |

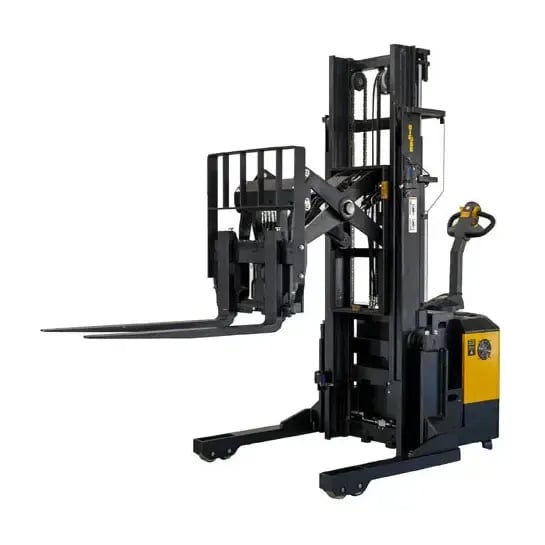

PDSR Walkie Reach Truck
Capacity: 3,000 lbs.
Features
- 24volt ZAPI transistor control with high torque AC drive motor.
- Pantograph extends forks beyond straddle legs.
- Power steering, sideshift, tilt and proportional lift, lower, extend & retract
- Choice of 34"/42" or 42"/50" fixed straddle legs.
- Ergonomic control handle with safety reversing switch and horn
- Industrial battery or 224 AH Maintenace free battery pack
- Battery discharge indicator with hour meter
- Key switch to limit access to approved personnel
Specifications
| Vehicle Type | Walkie Reach Stacker |
| Capacity | 3,000lbs.@ 24” load center |
| Power | 24 volt AC electric with ZAPI controller |
| Max Lift Height | Masts available up to 189" |
| Collapsed Height | Masts available as low as 76.5" |
| Fork Dimensions | 42" L x 4" W x 1.5" Thick |
| Vehicle Dimensions | See specification sheet |
| Turning Radius | See specification sheet |
| Travel Speed | Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded) |
| Battery Compartment | 31.6” x 9.06” x OPEN / 31.6" x 13.0" x OPEN |
| Battery Capacity | Industrial battery or 224AH AGM battery pack |
| Charger | External or 120v integral to battery pack |
Counter Balance Stackers

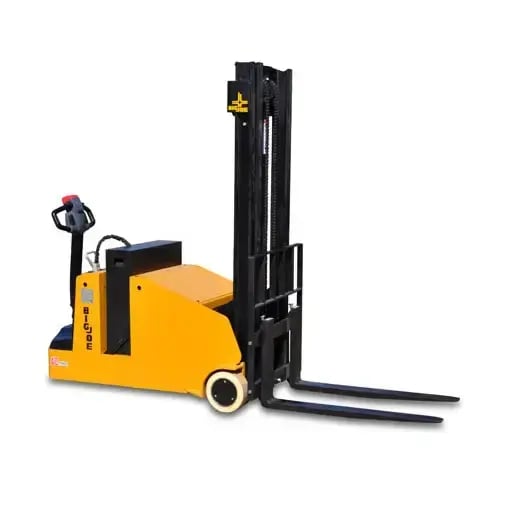

CB22 Walkie Stacker
Capacity: 2,200 lbs.
Features
- 24 volt Zapi AC Controllers
- High torque AC drive motor
- Lift, lower and tilt buttons in handle
- Forward and back tilt for accurate positioning of loads
- High visibility I-beam mast with lift heights to 157"
- Base mounted tiller provides low steering effort on CB22
- Premium AGM battery pack or industrial battery options
- Battery discharge indicator with hour meter
- ITA Class II fork carriage
Specifications
|
Vehicle Type
|
Counterbalanced Stackers
|
|
Capacity
|
2,200 @ 24” load center
|
|
Power
|
24 volt AC electric with Zapi controller
|
|
Max Lift Height
|
Masts available up to 157"
|
|
Collapsed Height
|
Masts available as low as 71"
|
|
Fork Dimensions
|
42" L x 4" W x 1.5" Thick
|
|
Vehicle Dimensions
|
See specification sheet
|
|
Turning Radius
|
See specification sheet
|
|
Travel Speed
|
See specification sheet
|
|
Battery Compartment
|
See specification sheet
|
|
Battery Capacity
|
224AH AGM pack or Industrial
|
|
Charger
|
Integral to pack or external available
|

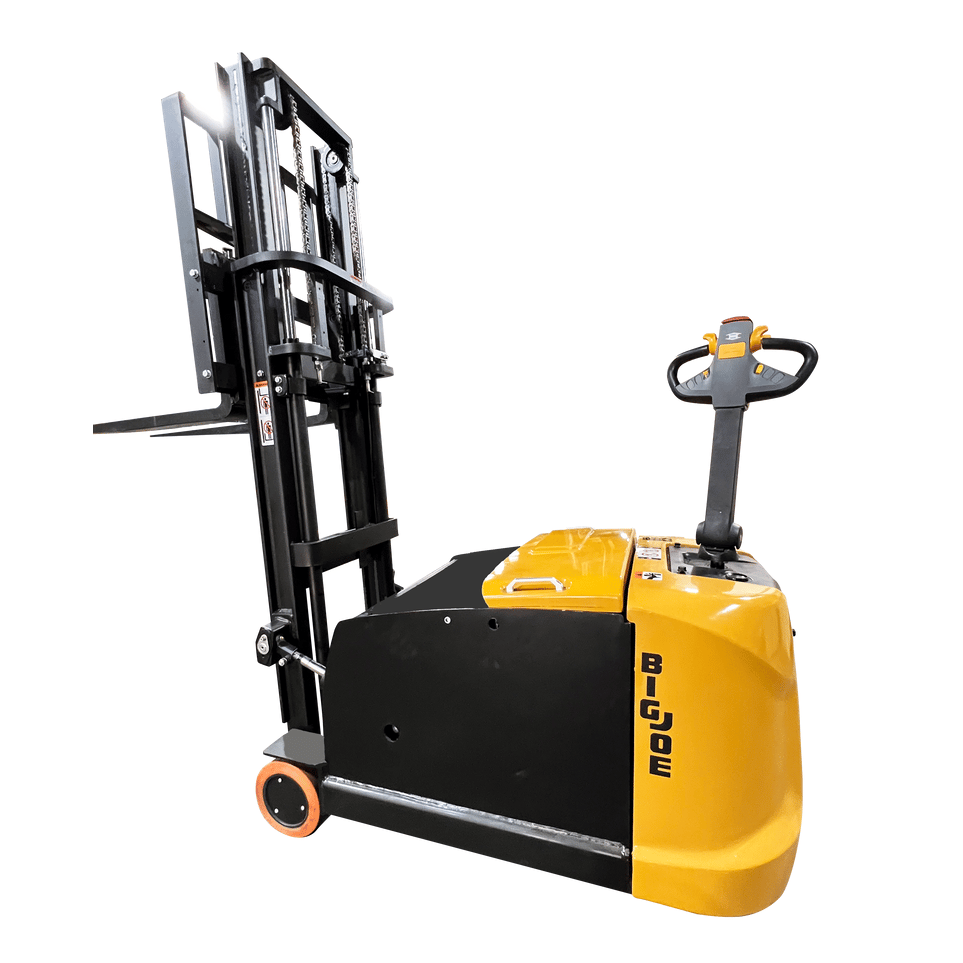

CB30/35 Walkie Stacker
Capacity: 3,000 - 3,500 lbs.
Features
- 24 volt Zapi AC Controllers
- High torque AC drive motor
- Lift, lower and tilt buttons in handle
- Forward and back tilt for accurate positioning of loads
- High visibility I-beam mast with lift heights to 157"
- Power steering
- Premium AGM battery pack, industrial or lithium battery options
- Battery discharge indicator with hour meter
- ITA Class II fork carriage
Specifications
| Vehicle Type | Counterbalanced Stackers |
| Capacity | 3,000lbs. & 3,500lbs. @ 24” load center |
| Power | 24 volt AC electric with Zapi controller |
| Max Lift Height | Masts available up to 157" |
| Collapsed Height | Masts available as low as 72.4" |
| Fork Dimensions | 42" L x 4" W x 1.5" Thick |
| Vehicle Dimensions | See specification sheet |
| Turning Radius | See specification sheet |
| Travel Speed | See specification sheet |
| Battery Compartment | See specification sheet |
| Battery Capacity | 224AH AGM pack or Industrial |
| Charger | Integral to pack or external available |

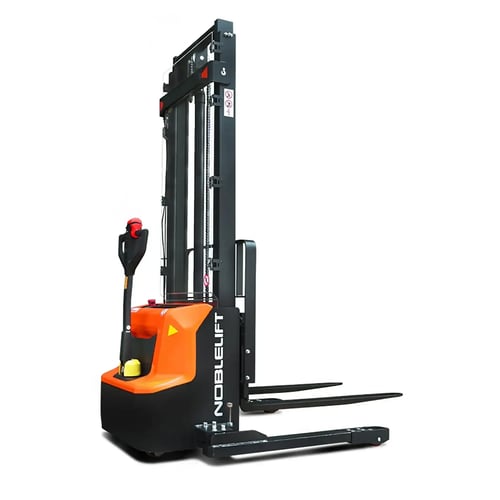

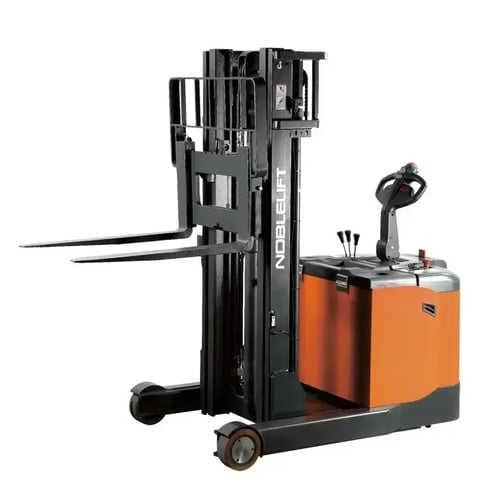

Noblelift walkie stackers bring together compact, maneuverable design with robust performance, along with easy maintenance and a lower cost of ownership.
Get Pricing & Availability Today
Related Products
Frequently Asked Questions
What is the maximum lift height for Big Joe walkie stackers?
Our stackers offer a variety of mast options, with some models capable of reaching heights up to 194 inches. The specific height depends on whether you choose a non-telescopic, two-stage, or three-stage mast configuration.
What is the difference between a straddle stacker and a counterbalanced stacker?
Straddle stackers use outriggers that "straddle" the pallet for stability, making them perfect for standard pallet racking. Counterbalanced models use internal weights instead of outriggers, allowing them to drive in and out of trailers at loading docks.
Can a walkie stacker replace a traditional sit-down forklift?
In facilities with narrow aisles or lower volume needs, a walkie stacker is often a more maneuverable and cost-effective alternative. However, they are slower than sit-down forklifts and are intended for shorter travel distances within a warehouse.
Are Big Joe stackers suitable for use in cold storage environments?
We offer specialized "cold storage conditioning" packages for many of our stacker models to ensure hydraulic fluids and electronics function correctly. These modifications allow the units to operate in temperatures as low as -20°F without component failure.
How wide do my aisles need to be for a Big Joe walkie stacker?
One of the main advantages of our stackers is their small turning radius, often requiring aisles as narrow as 7 to 8 feet. This allows you to increase your storage density significantly compared to using traditional material handling equipment.
What power options are available for the stacker lineup?
We offer traditional lead-acid batteries for standard use and advanced lithium-ion batteries for high-uptime applications. Many of our smaller stackers also feature integrated 110V chargers that can be plugged into any standard wall outlet.
