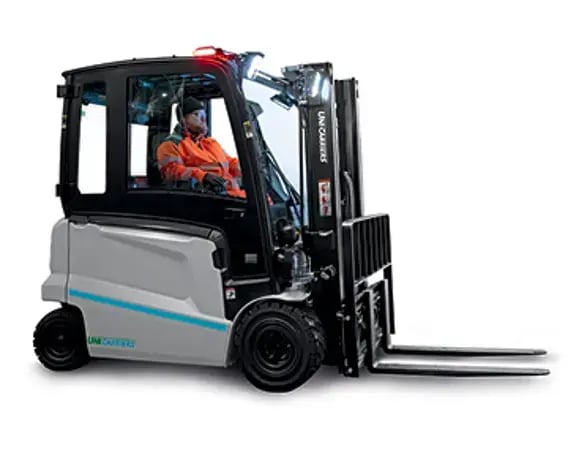

MX2-25-MX2-35L
5000 - 7000 lb Load Capacity
The MX2 Series of four-wheel electric pneumatic tire forklifts trucks feature high efficiency, durable build quality, and easy serviceability to help minimize downtime, maintain productivity, and lower total cost of ownership in some of the most demanding applications in the market.
Features
The Brakes You Need
Sealed wet disc brakes tend to have longer life than traditional dry brake systems. The MX2 was designed with standard wet disc brakes in mind to minimize brake wear and extend timing needed between brake service helping to reduce maintenance costs and total cost of ownership.

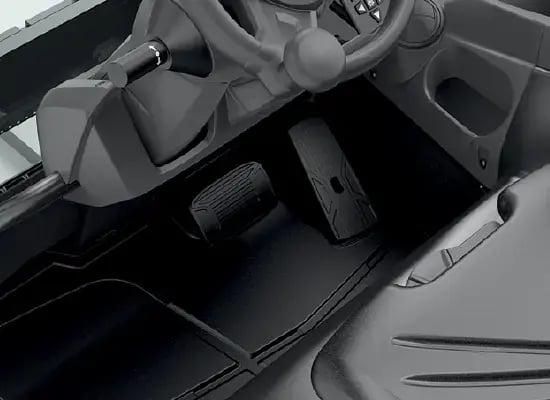

The spacious footwell provides additional comfort to enjoy a natural, ergonomic, foot position. The automatic parking brake activates without the need for traditional pedals, levers, or buttons.

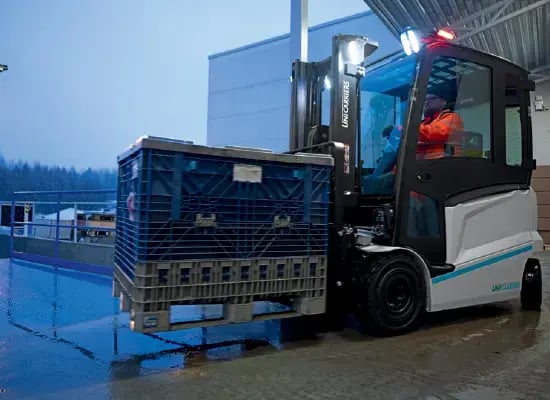

Built With Smart Systems
Intelligent curve control
Smoothly reduces lift truck speed when the truck senses that it is cornering. This reduces lateral forces on the operator, lift truck, and load.
Intuitive Drive System
Adapts performance in reaction to operator activation of travel and hydraulic functions to help ensure smooth movements, starts, and stops. Sensors react to the pressure that is applied to the accelerator pedal or hydraulic controls, which allows for an intuitive “feel”.
Specifications
| Model | Capacity (lb) | Lift Height (in) 2 | Power Type | Length (in) | Width (in) | Height (in) 1 | Weight (lb) 1 |
|---|---|---|---|---|---|---|---|
| MX2-25L | 5,000 | 171.5 | 80 V | 99.6 | 38.2 | 88.2 | 10362 |
| MX2-25 | 5,000 | 171.5 | 80 V | 94.1 | 38.2 | 88.2 | 10188 |
| MX2-30 | 6,000 | 170.3 | 80 V | 95.2 | 38.2 | 88.2 | 11539 |
| MX2-30L | 6,000 | 170.3 | 80 V | 100.7 | 38.2 | 88.2 | 4,107.2 |
| MX2-35L | 7,000 | 171.5 | 80 V | 100.7 | 38.2 | 88.2 | 4107.2 |
¹ Where applicable, does not reflect optional mast collapsed height or additional weight.
² Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.
