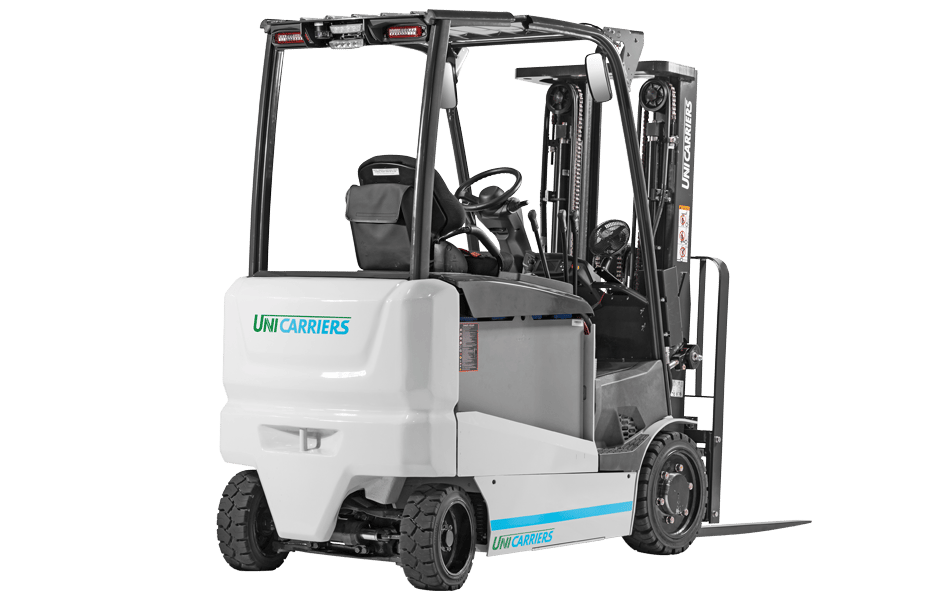

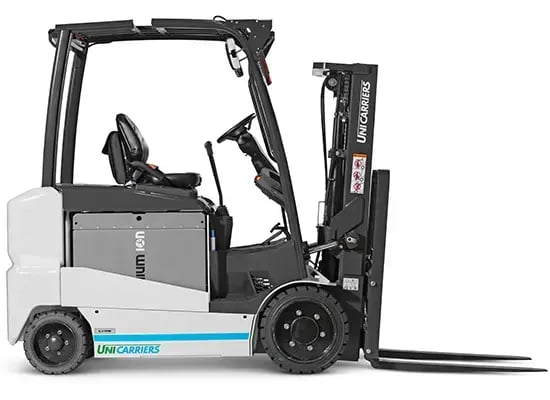

BXCQ Electric Forklift
4000 - 8000 lb Load Capacity
The BXC40Q – BXC80Q Series of electric cushion tire lift trucks deliver powerful performance and exceptional efficiency in a compact design. With capacities from 4,000 to 8,000 lbs., they offer unmatched maneuverability and IC-level strength without sacrificing load stability. Enhanced visibility and ergonomic features keep operators comfortable, confident, and productive all shift long.
Features
IC Level Hydraulic Performance
The new generation electric cushion trucks are engineered for maximum performance with 48V lithium-ion power, delivering:
- Hydraulic speeds up to 110.2 FPM - outperforming electric competitors and matching IC counterparts
- Travel speeds up to 12.5 MPH - more pallets moved per shift
- Up to 10% greater energy efficiency with lithium-ion
Specifications
| Model | Capacity (lb) | Lift Height (in) 2 | Power Type | Length (in) | Width (in) | Height (in) 1 | Weight (lb) 1 |
|---|---|---|---|---|---|---|---|
| BXC40Q | 4,000 | 107.9 | 36 / 48 V | 85 | 42.1 | 88 | 5,853 |
| BXC50CQ | 5,000 | 107.9 | 36 / 48 V | 85 | 42.1 | 88 | 6,747 |
| BXC50Q | 5,000 | 107.9 | 36 / 48 V | 88.7 | 42.1 | 88 | 6,247 |
| BXC60Q | 6,000 | 153.5 | 36 / 48 V | 90.3 | 43.3 | 88 | 8,394 |
| BXC65Q | 6,500 | 159.4 | 36 / 48 V | 90.7 | 43.3 | 88 | 8,780 |
| BXC80Q | 8,000 | 159.4 | 36 / 48 V | 136.3 | 43.3 | 88 | 9,797 |
¹ Where applicable, does not reflect optional mast collapsed height or additional weight.
² Various lift heights available to match your exact needs. Where applicable, value shown is maximum fork height available as an optional mast.
