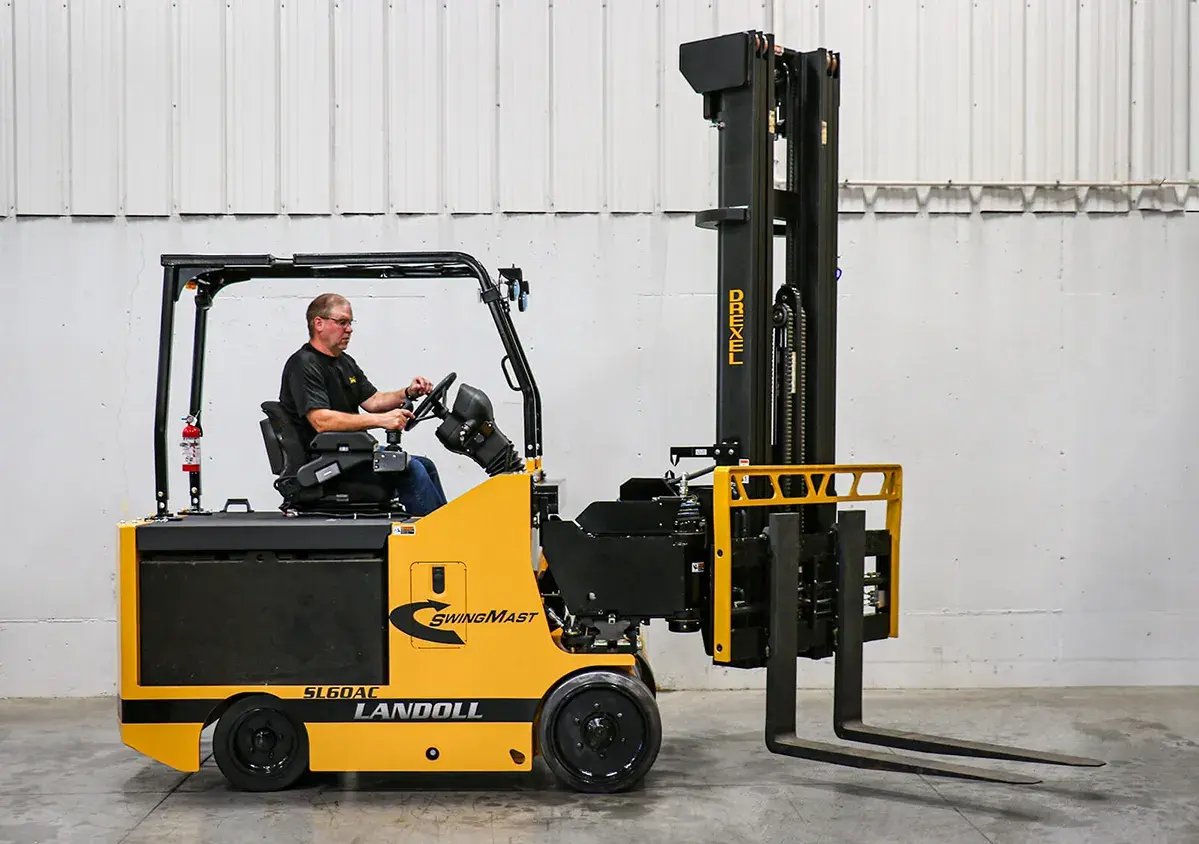

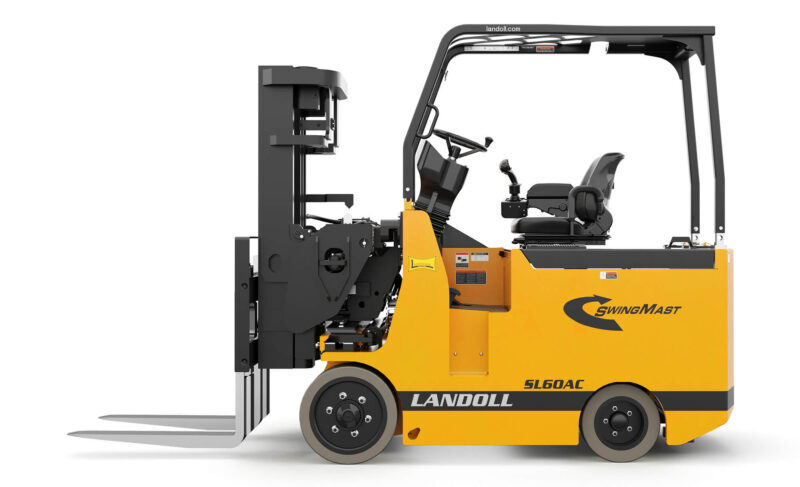

SL60 / SL80 Drexel Forklift

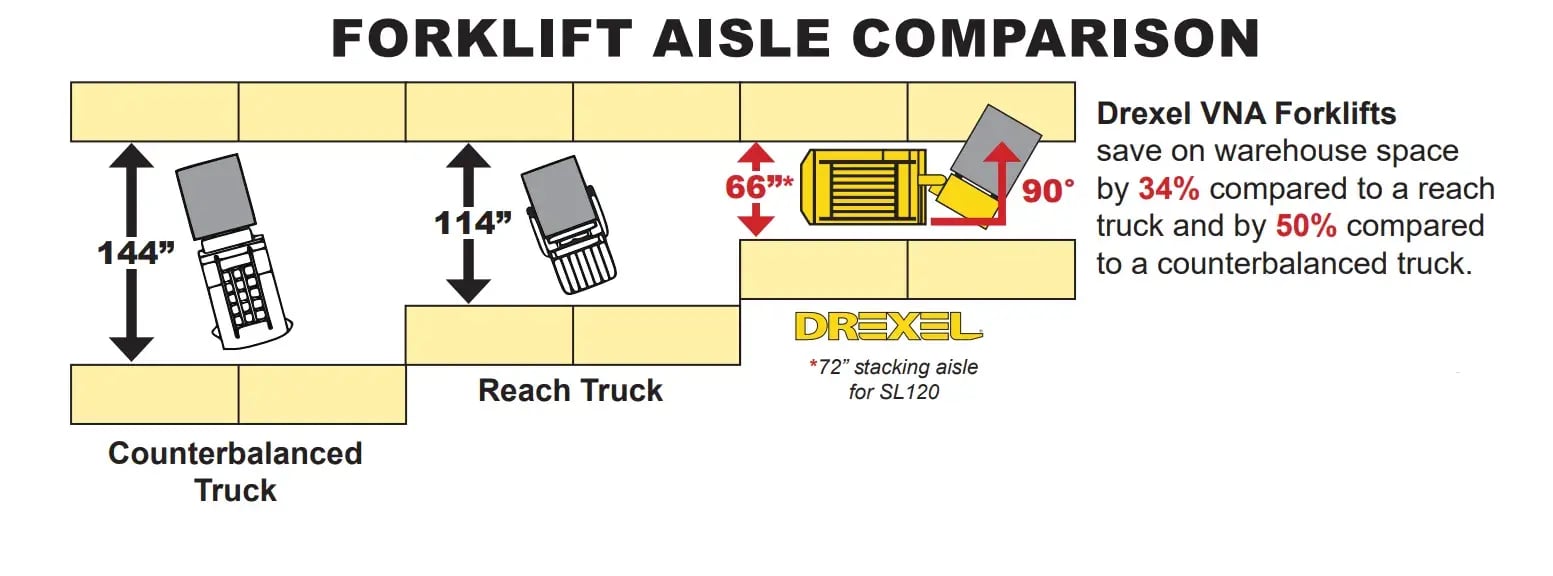

The Drexel SL60AC and SL80AC forklifts are high-capacity SwingMast® models that work in aisles as narrow as 66″ (1.67M)*, have a starting capacity of 6,000 lbs (2722kg) or 8,000 lbs (3629kg) at 24″ (600mm) load center and lift heights available to 289” (7.34M).
They are 4-Wheel SwingMast® VNA and Side-Loading forklifts with independently driven front wheels and dual rear steer tires. The front mast rotates 90°, has side shift of 30” (762mm), allows easy stacking in Very Narrow Aisles. The Drexel SL60AC and SL80AC can work inside and outside on paved surfaces and can perform the jobs of high-capacity front loading and side-loading forklifts including working in bulk storage, cantilever rack, push-back rack, double deep and climbing steep ramps. The SL range does the same jobs of reach and counterbalanced trucks in aisles over 40% smaller. The ability to store and transport heavy long loads as a side loader increases versatility and maximizes utilization.
* Based on 48” (1200mm) long x 40” (1000mm) wide load.
They are 4-Wheel SwingMast® VNA and Side-Loading forklifts with independently driven front wheels and dual rear steer tires. The front mast rotates 90°, has side shift of 30” (762mm), allows easy stacking in Very Narrow Aisles. The Drexel SL60AC and SL80AC can work inside and outside on paved surfaces and can perform the jobs of high-capacity front loading and side-loading forklifts including working in bulk storage, cantilever rack, push-back rack, double deep and climbing steep ramps. The SL range does the same jobs of reach and counterbalanced trucks in aisles over 40% smaller. The ability to store and transport heavy long loads as a side loader increases versatility and maximizes utilization.
* Based on 48” (1200mm) long x 40” (1000mm) wide load.
Features
- 6,000 lb. (2722kg) and 8,000 lb. (3629kg) Capacities at 24″ (600mm) Load Center
- Four-Wheel Design, Independently Driven Front Drive Wheels and Dual Rear Steering Wheels Provide Excellent Maneuverability and Traction
- Ergonomic Design for Exceptional Operator Comfort and Safety
- Dual Joysticks Control all Hydraulic Functions
- Hydrostatic Power Steering Provides Smooth, Reliable, Long-Lasting Steering Control
- Adjustable Suspension Seat Improves Operator Comfort
- 80 Volt Electrical System
- Large Battery Compartment Allows Maximum Battery Capacity for Long Run Times
- High Visibility Mast Allows Optimum Safety and View of Loads and Forks
- AC and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
- High Efficiency Curtis SEPEX Controllers Provide Trouble-Free Operation
- Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
Specifications
- Four-Wheel Configuration – 6,000 lb. (2,722kg) and 8,000 lb. (3,629kg) Capacity
- 80 Volt Electrical System
- Curtis SEPEX Dual Traction Motor Controllers
- Curtis Series Hydraulic Motor Controller
- Meets ANSI B56.1
- Battery Discharge Indicator with Lift Interrupt
- Hydrostatic Power Steering
- 30” (762mm) of Shift-Includes 3” (76mm) of Reach
- 40” (1,016mm) Long Shank Forks with Standard Taper
- Poly Drive and Steer Tires
- 42” (1066mm) High Load Backrest
- Type E Construction
- Anderson SBX350 Green Connector
- Seat Belt (Retractable)
- Horizontal Fork Indicator, Overhead Guard
- Key Switch, Hand Parking Brake and Hour Meter
