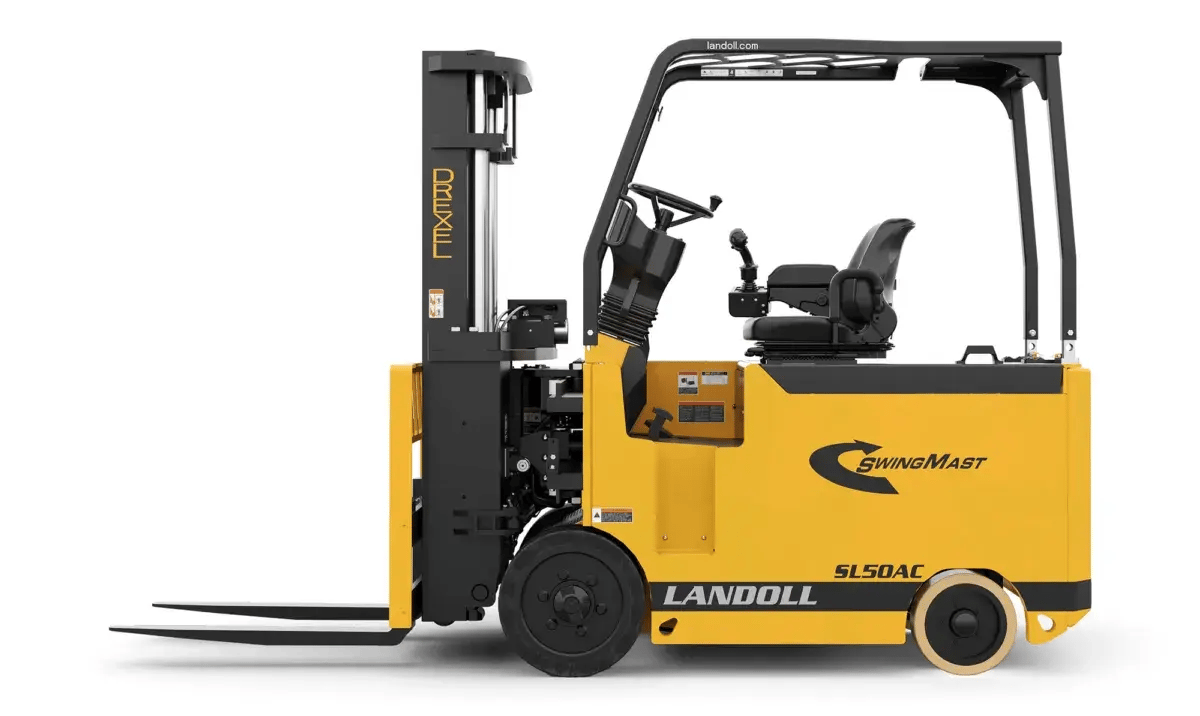

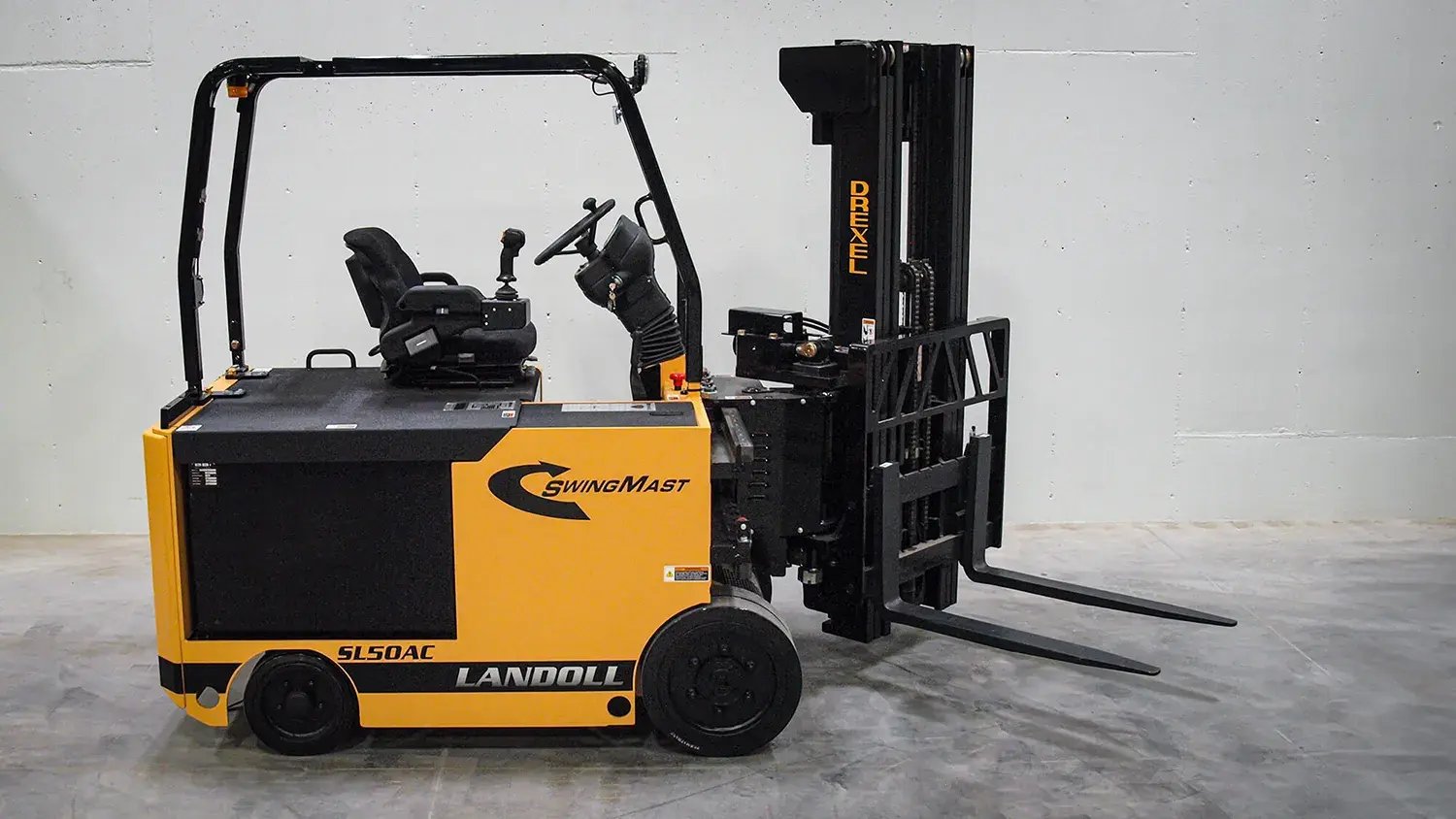

SL40AC / SL50AC Drexel Forklift

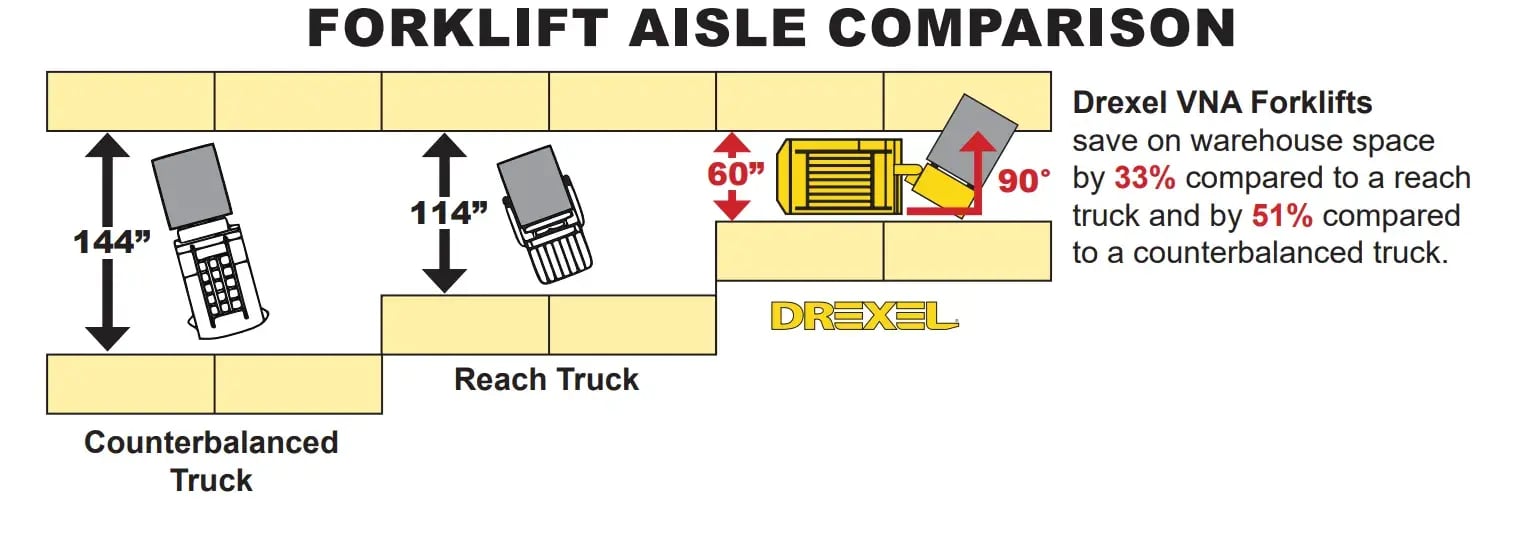

The Drexel SL40AC and SL50AC forklifts work in aisles as narrow as 60″ (1.52M)*, have a starting capacity of 3,000 lbs (1361kg), 4,000 lbs (1814kg) or 5,000 lbs (2268kg) at 24″ (600mm) load center and lift heights available to 31′ (9.5M).
They are 4-Wheel SwingMast® VNA and Side-Loading Forklifts with independently driven front wheels and dual rear steer tires. The front mast rotates 90° and has side shift of 22” (559mm), allowing easy stacking in Very Narrow Aisles. The Drexel SL40AC and SL50AC can work inside and outside on paved surfaces. They can perform the jobs of a normal front-loading and side-loading forklifts including loading and unloading highway trucks and containers, working in bulk storage, drive-in rack, cantilever rack, push back rack, double deep and climbing steep ramps. The SL range does the same jobs of reach and counterbalanced trucks in aisles over 50% smaller. The ability to store and transport long loads as a side loader increases versatility and maximizes utilization.
* Based on 48” (1200mm) long x 40” (1000mm) wide load.
Features
-
3,000 lb. (1361kg), 4,000 lb. (1814kg) and 5,000 lb. (2268kg) Capacity at 24″ (600mm) Load Center
-
Four-Wheel Design, Independently Driven Front-Drive Wheels and Dual Rear-Steering Wheels Provide Excellent Maneuverability and Traction
-
Ergonomic Design for Exceptional Operator Comfort and Safety
-
Single Joystick Controls Hydraulic Functions, Directional Control, Horn and Wire Guidance
-
Hydrostatic Power Steering Provides Smooth, Reliable, Long-Lasting Steering Control
-
Adjustable Swivel Seat Improves Operator Comfort while Traveling in Reverse
-
Large Battery Compartment Allows Maximum Battery Capacity for Long Run Times
-
High Visibility Mast Allows Optimum Safety and View of Loads and Forks
-
AC Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
-
High Efficiency Curtis AC Controllers Provide Trouble Free Operation
-
Interactive LCD Status Monitor (BDI with Lift Interrupt, Hour Meter with Service Monitor, Diagnostic Code Display, Input Device Calibration)
-
48 Volt Electrical System
-
Optional Cold Storage Conditioned to -22°F (-30°C)
Specifications
- 3,000 lb. (1,361kg), 4,000 lb. (1,814kg) and 5,000 lb. (2,268kg) Capacity at 24” (600mm) Load Center
- Lift Heights to 374” (9.5M)
- 56” (1.4M) Stacking Aisle
- High Visibility 3-Stage or 4-Stage Mast
- 48 Volt CAN-Bus Electrical System
- Dual AC Traction Motor Controllers
- AC Hydraulic Motor Controller
- Hydraulic Power Steering by Main Hydraulic Pump (No Separate Power Steering Pump or Motor)
- Full Diagnostic Intelligent Display with Battery Discharge Indicator and Hour Meter
- Four-Wheel Design, Dual Front Wheel Planetary Drives and Heavy Duty Articulating Rear Steer Axle
- Right Side 16½” (419mm) Deep Long Load Deck
- Large Diameter Poly Drive (Rubber on SL30AC) and Poly Steer Tires
- 22” (559mm) of Mast Shift, Includes 3” (76mm) of Reach and 90° Right Side Mast Rotation
- Comfortable Seated Operation with Single Joystick Hydraulic and Directional Control on Armrest
- Mast Tilt of 3° Forward and 4° Back (Restricted to 1° Forward and 2° Back at 294” and Higher Lift Height)
- Adjustable Cloth Suspension Swivel Seat with Adjustable Armrests
- Adjustable Steering Column, Key Switch, Rear View Mirror, Horn, Seat Belt
- Safety Seat Switch and Retractable Seat Belts
- Hydraulic Front-Wheel Disc Brakes
- Horizontal Tilt Indicator
- 4-Post Adjustable Overhead Guard
- 40” (1,000mm) Long End Tapered Forks, 37” (940mm) Wide Carriage and 36” (914mm) High Load Backrest
- Provisions for RF Terminals
- Accepts Class II Attachments
- Easily Accessible Components for Low Cost Maintenance
