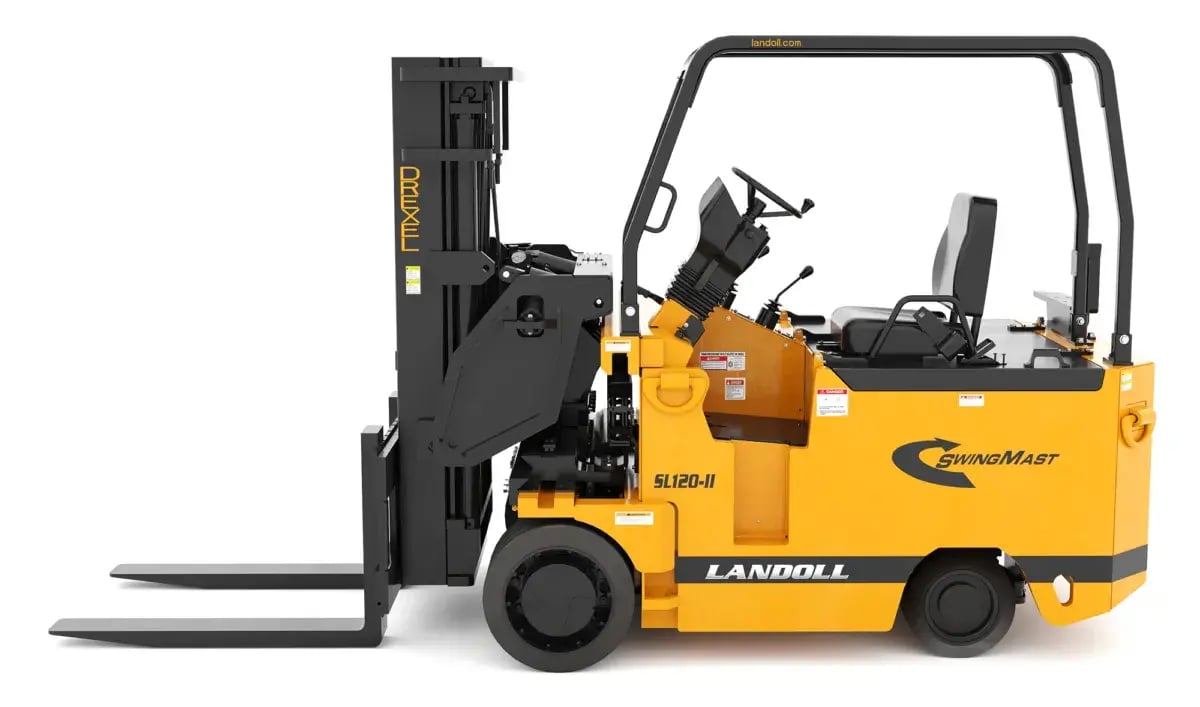

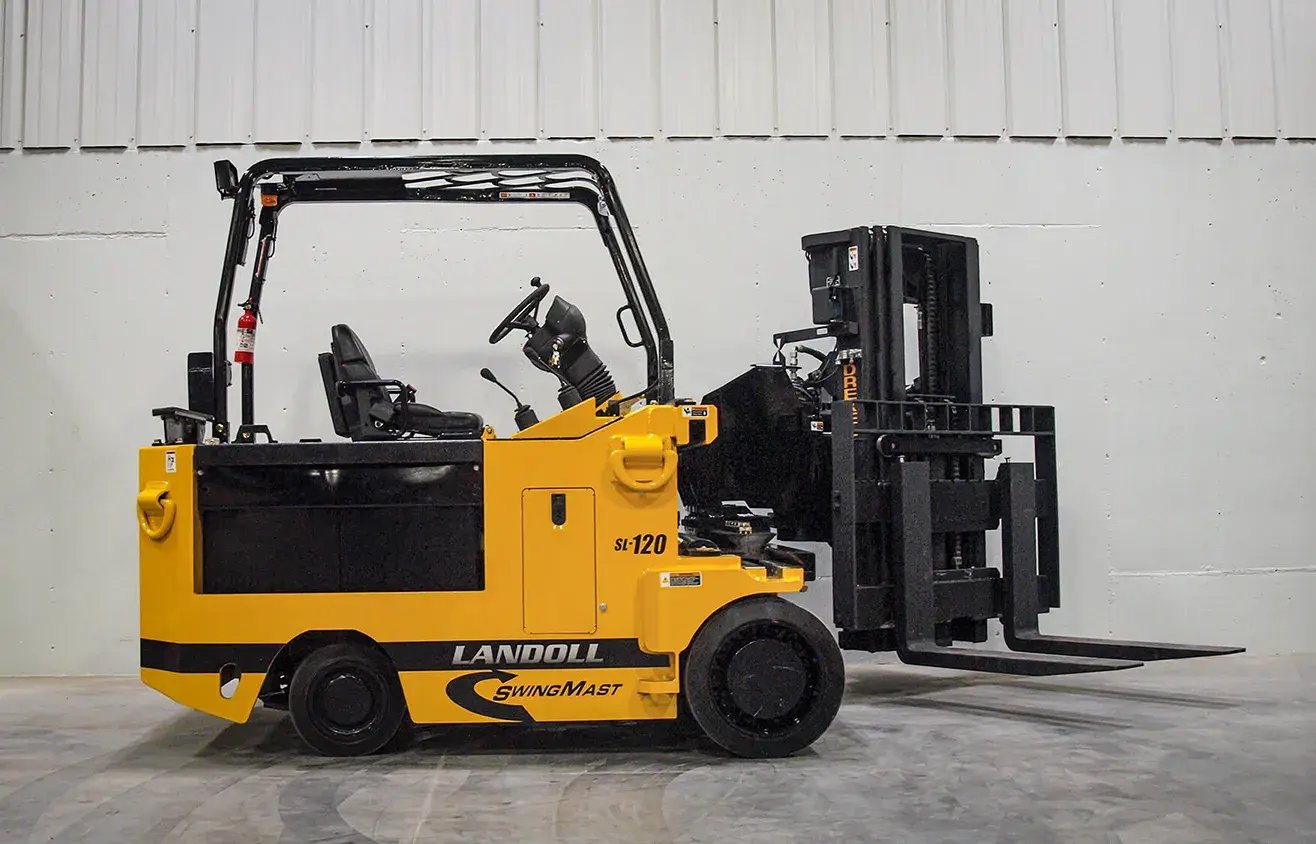

SL120 Drexel Forklift
DREXEL HIGH-CAPACITY SWINGMAST®

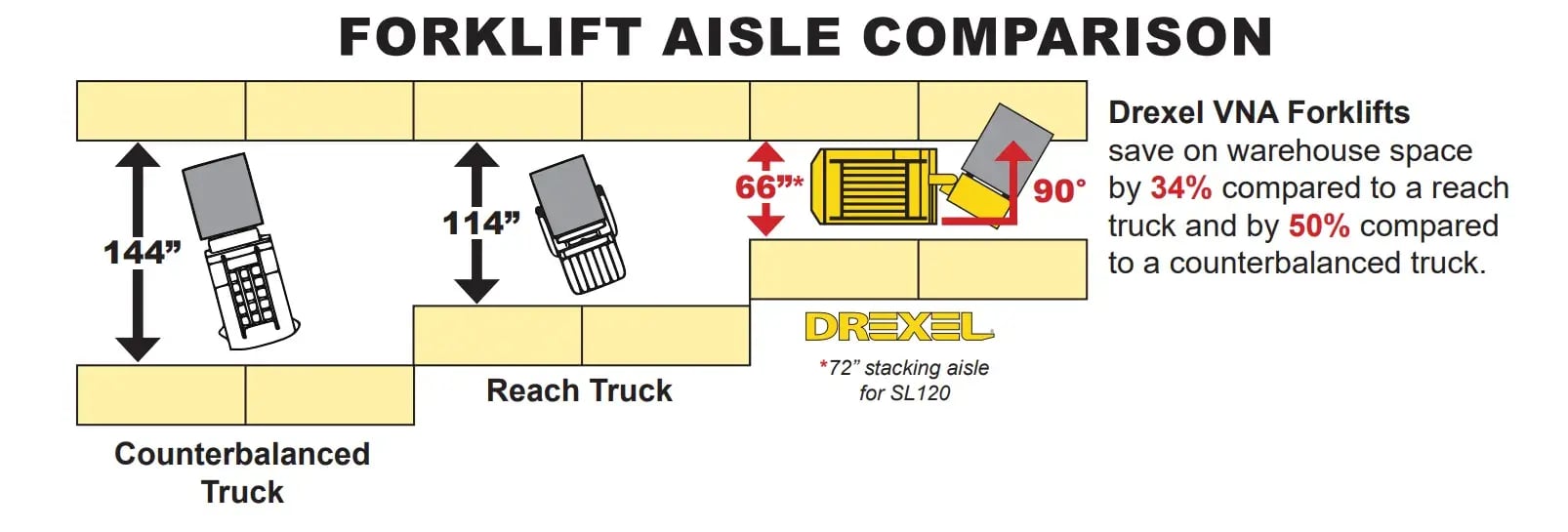

The Drexel SL120 forklift is a specialized high-capacity SwingMast® model that works in aisles as narrow as 72″ (1.82M)*, has a starting capacity of 12,000 lbs (5443kg) at 24″ (600mm) load center and lift heights available to 243” (6.17M).
It’s a 4-Wheel SwingMast® VNA and Side Loading Forklift with independently driven front wheels and dual rear steer tires. The front mast rotates 90° and has a side shift of 44” (1118mm), allowing stacking easily in Very Narrow Aisles. The Drexel SL120 can also work inside and outside on paved surfaces, and can perform the jobs of high-capacity front-loading and side-loading forklift combined including working in bulk storage, cantilever rack and climbing steep ramps. The SL120 performs the jobs of a high-capacity counterbalanced truck but in aisles over 40% smaller. The ability to store and transport heavy, long loads as a side loader increases versatility and maximizes utilization.
* Based on 48” (1200mm) long x 40” (1000mm) wide load.
Features
- 12,000 lb. (5443kg) Capacity at 24″ (600 mm) Load Center
- Four-Wheel Design, Independently Driven Front Drive Wheels and Dual Rear Steering Wheels Provide Excellent Maneuverability and Traction
- Ergonomic Design for Exceptional Operator Comfort and Safety
- Dual Joysticks Control all Hydraulic Functions
- Hydrostatic Power Steering Provides Smooth, Reliable, Long-Lasting Steering Control
- Large Battery Compartment Allows Maximum Battery Capacity for Long Run Times
- Adjustable Suspension Seat Improves Operator Comfort
- High Visibility Mast Allows Optimum Safety and View of Loads and Forks
- Series Traction and Hydraulic Motors Ensure Minimal Maintenance and High Efficiency
- High Efficiency Controllers Provide Trouble Free Operation
- Battery Discharge Indicator with Lift Interrupt, Hour Meter with Service Monitor and Diagnostic Code Display are Standard
- 72 Volt Electrical System
Specifications
- Four Wheel Design, Front Wheel Drive, Rear Wheel Steering
- High Visibility 3-Stage Mast
- 72 Volt Electrical System
- Safety Seat Switch and Retractable Seatbelt
- GE “SCR” Controls
- Front-Wheel, Self-Adjusting Wet Disc Brakes
- Hand Actuated Parking Brake
- Adjustable Steering Column with Battery Discharge Indicator and Hour Meter
- Type “E” Construction
- Hydrostatic Power Steering
- Automatic Return-to-Neutral
- Locking Differential
- Load Backrest
- Horizontal Tilt Indicator
- Polyurethane Drive & Steer Tires
