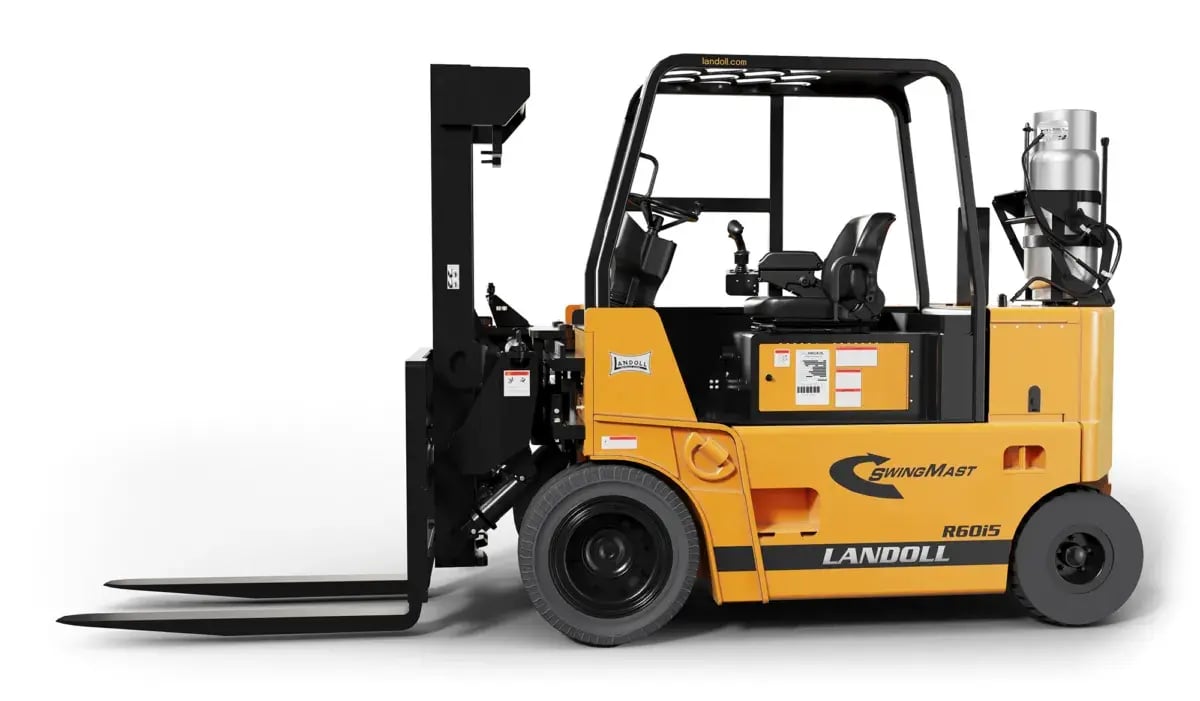

R60I5 Drexel Forklift

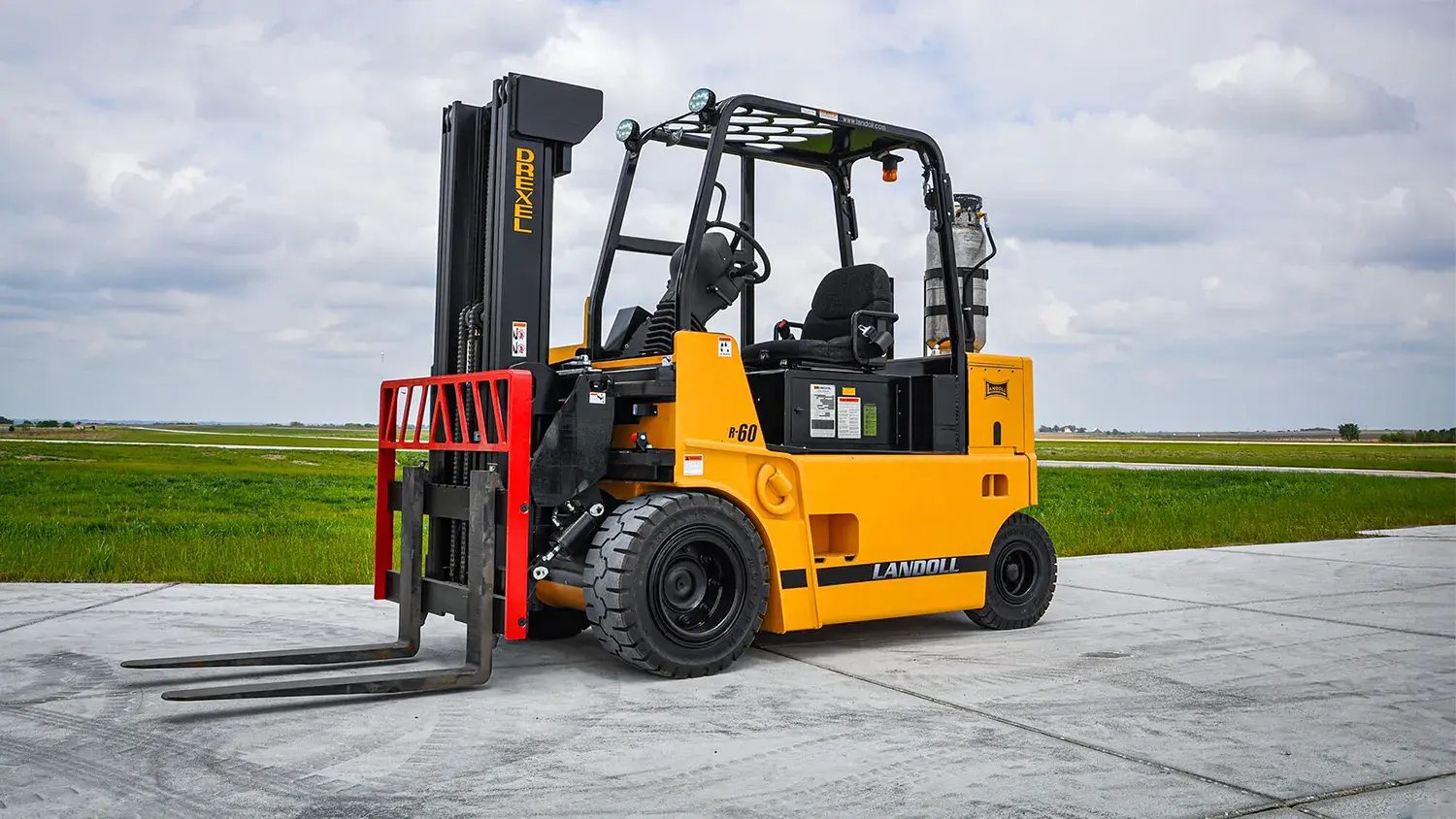

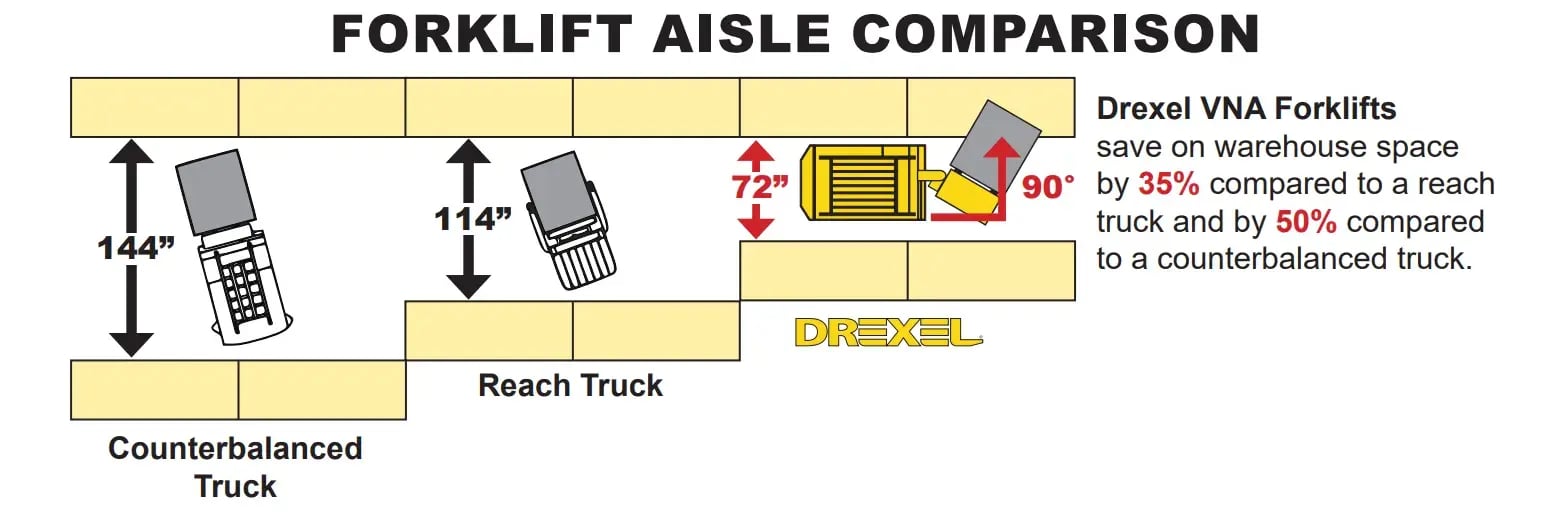

The 4-wheel Drexel R60i5 SwingMast® is an LP Gas powered, hydrostatically driven, front/side loading forklift that works in aisles as narrow as 72″ (1.82M)*, has a starting capacity of 6,000 lbs (2722kg) at 24″ (600mm) load center and lift heights available to 240″ (6.1M).
* Based on 48” (1200mm) long x 40” (1000mm) wide load.
* Based on 48” (1200mm) long x 40” (1000mm) wide load.
Features
- 6,000 lbs. (2722kg) Capacity at 24” (600mm) Load Center
- Four-Wheel Design, Dual Hydrostatically Driven Front Wheels
- Solid, Pneumatic-Style Drive and Steer Tires
- LPG Engine, GM 4.3L Tier III and LPG Fuel System (Tank Not Included)
- Integrated Computer Controlled Hydrostatic Drive and Efficient Fuel System
- Hydrostatic Power Steering with Tilt Steering Wheel
- Dual Joystick Hydraulic Control Levers
- 23″ (584mm) of Shift Includes 2″ (51mm) of Reach
- 40″ (1016mm) Forks with Standard Bottom Taper and Class III Carriage and Long Load Handling Package
- Dash Display Contains Engine Coolant Temperature Gauge, Hour Meter, Clock, Warning Icons and Display Function Buttons
- Neutral Start, Anti Restart, Operator Presence Seat Switch
- Adjustable Steering Column, Key Switch, Rear View Mirror, Horn and Seatbelt
- Comfortable Seated Operation with Vinyl Suspension Seat
- All Weather Cab With Heater and Windshield Wipers is Optional
Specifications
- 6,000 lb. (2722kg) Capacity at 24” (600mm) Load Center
- Four-Wheel Design, Dual Independently Driven Front Wheels
- Solid, Pneumatic-Style Drive and Steer Tires
- LPG Engine, GM 4.3L Tier III and LPG Fuel System (Tank Not Included)
- Integrated Computer Controlled Hydrostatic Drive
- Hydrostatic Power Steering with Tilt Steering Wheel
- Dual Joystick Hydraulic Control Levers
- 23” (584mm) of Shift Includes 2” (51mm) of Reach
- 40” (1016mm) Forks with Standard Bottom Taper and Class III Carriage and Long Load Handling Package
- Dash Display Contains: Engine Coolant Temperature Gauge, Hour Meter, Clock, Warning Icons, and Display Function Buttons
- 91” (2311mm) High Overhead Guard
- 42” (1067mm) High Load Backrest, 48” (1219mm) Wide Fork Carriage
- Neutral Start, Anti Restart, Operator Presence Seat Switch
- Adjustable Steering Column, Key Switch, Rear View Mirror, Horn and Seat Belt
- Comfortable Seated Operation with Vinyl Suspension Seat
- Mast Tilt of 3° Forward and 4° Backward
