RT33-44SP / RT33DP

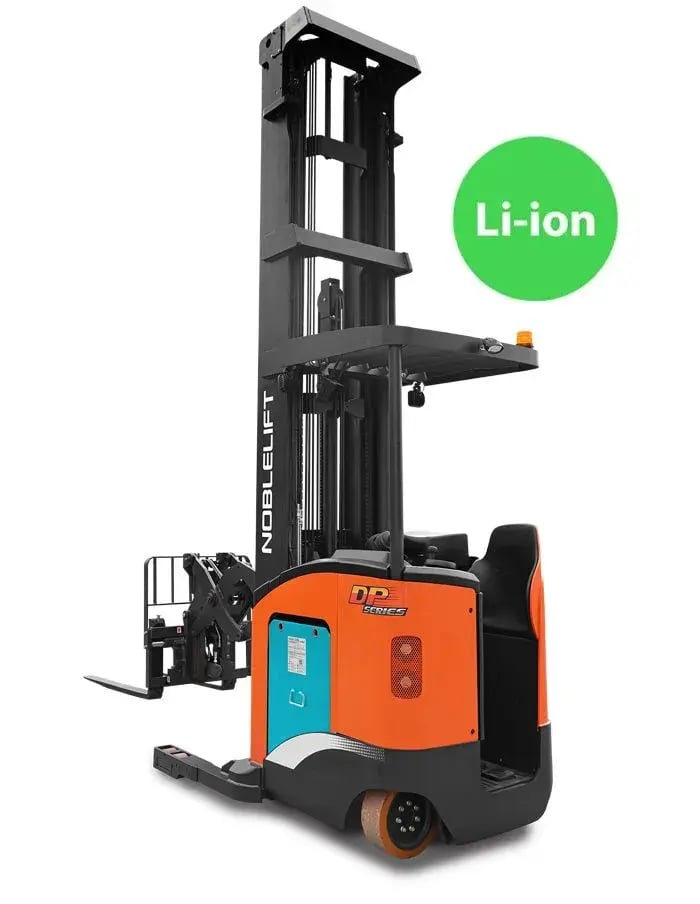

The RT33-44SP / RT33DP Lithium Single & Double Scissor Stand-Up Pantograph Reach Trucks have a lifting capacity of 3,300 to 4,400 lbs and operate within a narrow aisle. They have lift heights ranging from 177” to 453”, and a fork reaching distance ranging from 22.4” to 41.7”. They offer high-speed lifting and lowering and are equipped with a lithium battery capable of multiple shift operation. High-maneuverability and high-reach capabilities make these reach trucks the ideal choice for your most demanding applications where efficient, narrow aisle, high-lift height material handling is required.
They are equipped with dual independent AC drive motors with separate drive controllers that provide a superior driving experience. Lithium charger included. Boost your productivity with these highly maneuverable, very low maintenance, ultra-smooth, lithium reach trucks.
Features
Wireless mast mounted fork view camera with HDMI color monitor provides an unrestricted view of the pallet and racking for increased productivity and increased safety.
Multi-Functional Handle controls key vehicle functions – forward/backward travel speed, side shifting and proportional lifting and lowering.
One-Button Tilt Control System ensures safety by limiting the tilt of cargo when forks are lifted high.
Smart Lithium Battery
Large capacity, fast-charging (2.5 hours) maintenance-free Lithium battery, capable of multiple shift operation. Side extraction reduces maintenance time.
Wireless 4G advanced battery monitoring system for remote battery monitoring and system data.
The integrated BMS (Battery Management System) controls all important parameters and performance of the lithium battery.
Curtis Controller and CAN-BUS Technology
Easily check condition and troubleshoot with Curtis controller and CAN-bus technology.
Adjustable Backrest and Hip Pad contour the body to ensure operator comfort throughout the entire work shift.
Adjustable Armrest can be adjusted to maximize the comfort of operators of different heights.
The Floor Suspension System adapts to the weight of the operator and provides impact and vibration protection.
Dual Independent AC Drive Motors with separate drive controllers provide superior maneuverability while turning.
AC Drive and Gearbox Technology ensure accurate control and travel speed.
Dual-Brake/Presence Pedal Design protects the operator and the forklift. If both pedals are not depressed, the forklift will be not travel in any direction.
Large LED Screen Large LED screen conveniently displays lifting weight, lifting height, speed, power, steering, fault code, alarm and more.
Wide View and Clear Visibility Cab design, open view mast and overhead guard gives operator a clean line of site to the load and their surroundings for increased efficiency and improved safety.
Equipped with LED headlights, safety blue light and a buzzer for safe driving.
USB connector for charging and powering of additional devices during operations.
Easy-Maintenance Convenient and fast access to any component of the truck. No Special tools are required.
Dual Independent AC Drive Motors with separate drive controllers provide superior maneuverability while turning.
AC Drive and Gearbox Technology ensure accurate control and travel speed.
Dual-Brake/Presence Pedal Design protects the operator and the forklift. If both pedals are not depressed, the forklift will be not travel in any direction.
Large LED Screen Large LED screen conveniently displays lifting weight, lifting height, speed, power, steering, fault code, alarm and more.
Wide View and Clear Visibility Cab design, open view mast and overhead guard gives operator a clean line of site to the load and their surroundings for increased efficiency and improved safety.
Equipped with LED headlights, safety blue light and a buzzer for safe driving.
USB connector for charging and powering of additional devices during operations.
Easy-Maintenance Convenient and fast access to any component of the truck. No Special tools are required.
Specifications
MODEL RT33SP177 RT33SP193 RT33SP256 RT33SP295 RT33SP334 RT33SP374 RT33SP413
Unit Type Lithium Man-Up Order Picker - Single Reach
Load Capacity 3,300lb
Load Center 24"
Power 36V / 560Ah Lithium Battery
Battery Charger 36V/200A
Fork Dimensions 42" Standard
Max Lift Height 177" 193" 256" 295" 334" 374" 413"
Mast Stages 3
Turning Radius 71.9" 71.9" 71.9" 71.9" 71.9" 71.9" 73.8"
Vehicle Dimensions Download Brochure
Travel Speed Download Brochure
OPTIONS
Height pre-selection system
Fork lengths: 54”, 60”
MODEL RT44SP177 RT44SP193 RT44SP256 RT44SP295 RT44SP334 RT44SP374 RT44SP413 RT44SP433 RT44SP453
Unit Type Lithium Man-Up Order Picker - Single Reach
Load Capacity 4,400lb
Load Center 24"
Power 36V / 560Ah Lithium Battery
Battery Charger 36V/200A
Fork Dimensions 42" Standard
Max Lift Height 177" 193" 256" 295" 334" 374" 413" 443" 453"
Mast Stages 3
Turning Radius 71.9" 71.9" 71.9" 71.9" 71.9" 73.8" 75.8" 75.8" 75.8"
Vehicle Dimensions Download Brochure
Travel Speed Download Brochure
OPTIONS
Height pre-selection system
Fork lengths: 54”, 60”
MODEL RT33DP177 RT33DP193 RT33DP256 RT33DP295 RT33DP334 RT33DP374 RT33DP413 RT33DP433 RT33DP453
Unit Type Lithium Man-Up Order Picker - Double Reach
Load Capacity 3,300lb
Load Center 24"
Power 36V / 560Ah Lithium Battery
Battery Charger 36V/200A
Fork Dimensions 42" Standard
Max Lift Height 177" 193" 256" 295" 334" 374" 413" 443" 453"
Mast Stages 3
Turning Radius 71.9" 71.9" 71.9" 71.9" 73.8" 75.8" 75.8" 75.8" 75.8"
Vehicle Dimensions Download Brochure
Travel Speed Download Brochure
OPTIONS
Height pre-selection system
Fork lengths: 54”, 60”
