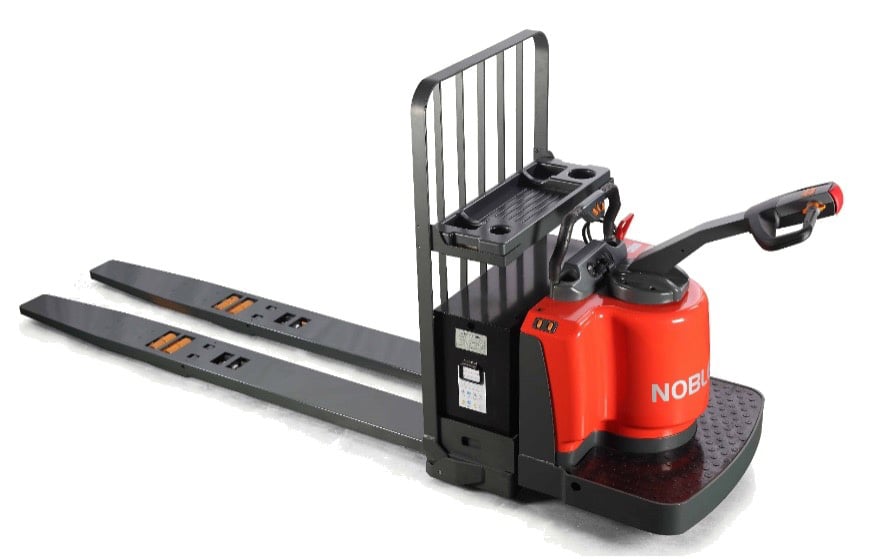

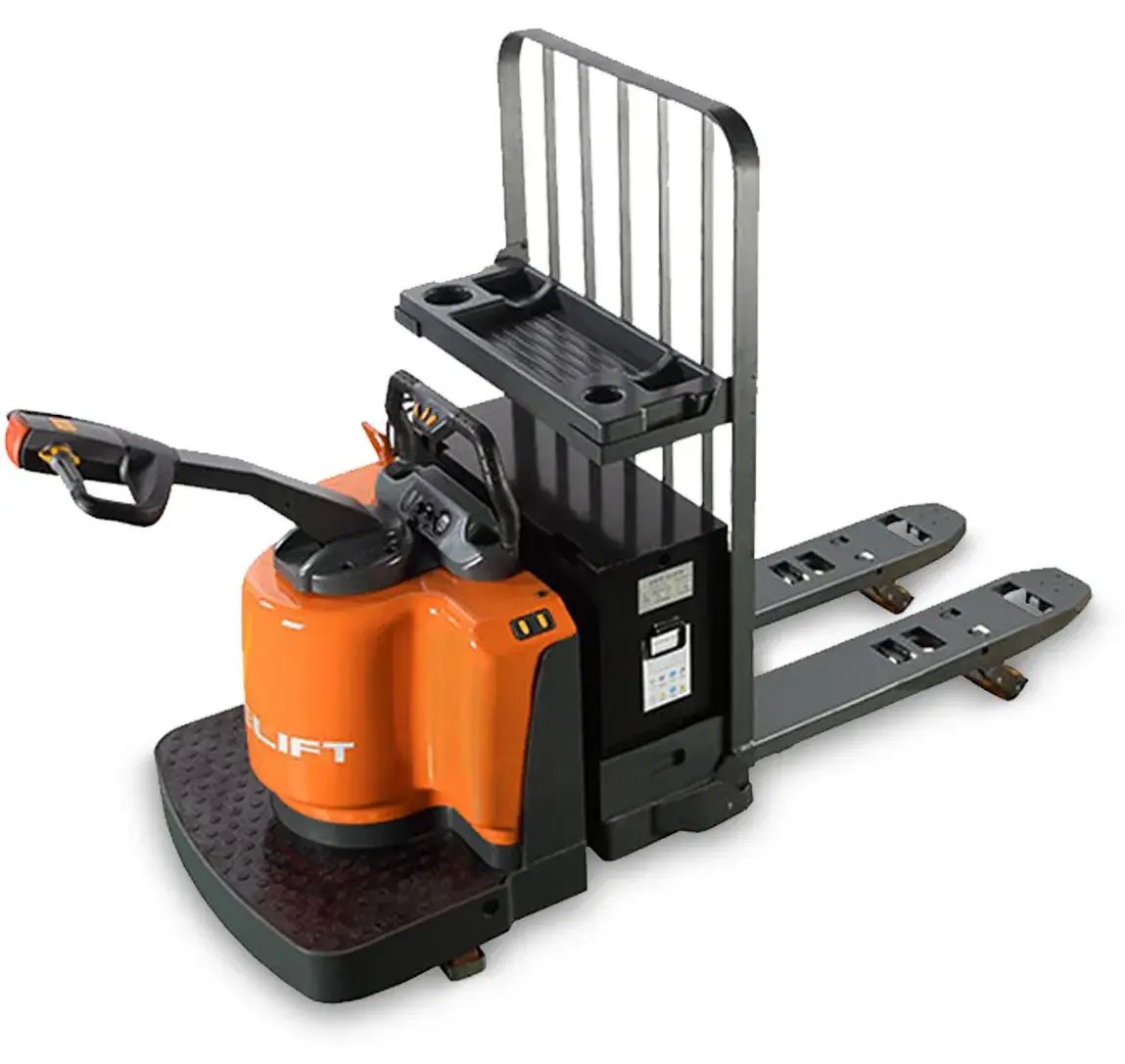

PT60-80R Rider Pallet Jack
The PT55N 5,500lb capacity, rider electric pallet truck is a heavy duty, fully electric pallet jack. Its integrated and compact body design provide an extremely tight turning radius for maximum efficiency in narrow applications. It is designed to withstand the most demanding applications in order picking, warehousing, loading docks and more.
This ergonomic, heavy-duty pallet truck is equipped with high-quality components like German Schabmueller AC Drive motor, German ZF AC gearbox, Italian ZAPI Controller, German REMA control handle, Intorq electromagnetic brake, industrial battery and a 110 volt charger. It's high-speed allows operators to move more product in less time - Competitively priced - Highly Productive - One of the best values on the market.
Available in Lithium also.
Features
Generous Platform
The roomy platform ensures operator comfort throughout the day.
Ergonomic Robust German Tiller
Operator friendly robust metal casted German tiller provides maximum ergonomics and safety in riding and walking mode. Equipped with horn button and belly button.
Optional Jog Button
Jog button allows operator to walk beside the truck. Additional sidetracker for traveling in tiller direction increases productivity in order picking operations. The coast mode allows slow coasting.
Dual Butterfly-Style Thumb Controls
Crawl Button
Crawl/Slow speed button for safe and easy operation within confined spaces.
Load Backrest
Heavy duty load backrest with tilt-down design helps facilitate battery change out. Optional battery rollers provides easier battery change out.
Grab Bar with Electric Controls
All control elements ensure safety and productivity. They are ergonomically placed to make operations effortless. The coated grab bar keeps you safe during the whole day.
Work Tray Tray provides a place for your work equipment.
Key switch limits access to approval personnel.
Emergency power disconnect
Specifications
MODEL PT60R PT80R
Unit Type Rider Electric Pallet Truck
Load Capacity 6,000lb 8,000lb
Load Center 24" 48"
Power 24V / 350Ah Battery
Battery Charger 24V/55A Charger 110V
Fork Dimensions 27" W x 48" L Standard
Max Lift Height 9.15" 9.15"
Collapsed Height 3.25" 3.25"
Turning Radius 84.4" 104.7"
Vehicle Dimensions Download Brochure
Travel Speed Download Brochure
Options
- Optional Fork Configurations
- Optional Lithium-ion Battery/Charger (PT80R)
- Optional Side Coast and Brake Buttons for Order Picking (PT80R)
