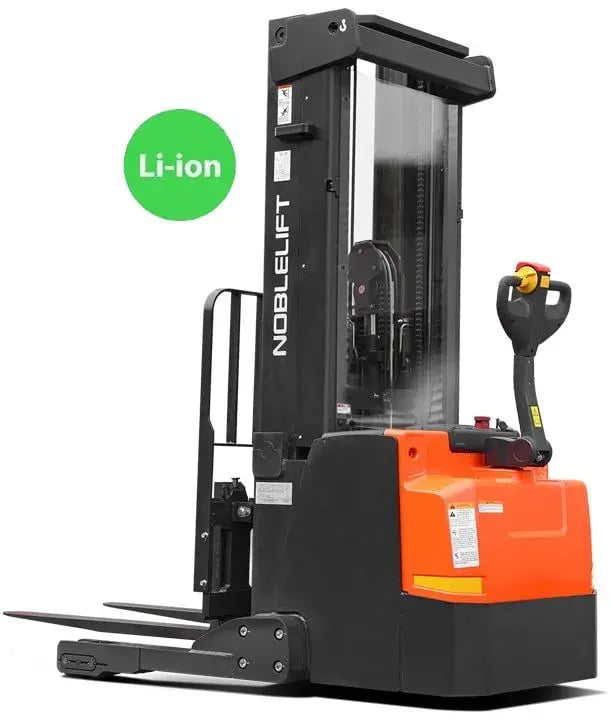

PSR30 Lithium - Walkie Reach Truck
MOON WALKING: A Leap for Safety and Storage Density

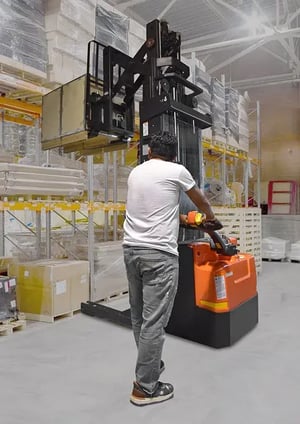

Moon Walking mode allows operators to turn the tiller 90° and stand safely at the side of the machine instead of directly behind it. This positioning delivers three critical advantages:
- Unmatched Visibility: Operators have a clear view of both the load and surroundings during pick and place operations
- Space Savings: The PSR30 requires just 95.13 inches to right-angle stack a standard 40” × 48” pallet, dramatically shrinking aisle width requirements
- Safer Operation: By removing the operator from behind the truck, Moon Walking significantly reduces the risk of injury, product damage or fixture damage
Versatility of TWO TRUCKS IN ONE

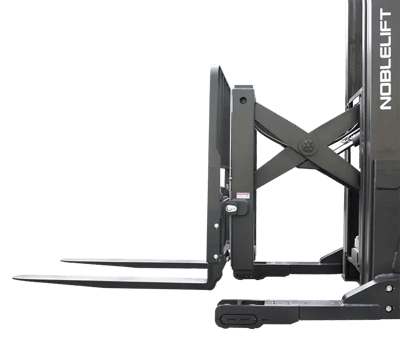

- When the pantograph is extended, the PSR30 functions like a sit-down counterbalanced truck, supporting any size pallet or load and allowing direct placement from height to the floor
- When the pantograph is retracted, the unit operates like a compact straddle truck, executing extremely tight turns even with a load. This makes it ideal for narrow aisles, tight storerooms, and sideloading flatbed trailers where maneuverability is essential
Features
Turtle Speed Button - Pinwheel Capability - By holding the Turtle button down, the stacker will operate with the handle in the upright position, providing safe and easy operation within confined spaces.
Dual Butterfly-Style Thumb Controls - for traveling. Emergency reverse, horn and electric lifting / lowering / right / left /forward / back / tilt buttons.
Proportional hydraulics - ensure precise load positioning, while reducing the risk of product or rack damage.
Integrated side shift - allows for movement of the fork carriage without having to move the entire stacker.
Adjustable Straddle Leg Design - Straddle support legs are easily adjusted to meet operator’s needs: I.D. 34” to 50”, in 4” increments.
The Smooth Proportional Carriage Tilt - retains loads during transit and compensates for unlevel floors during pick and place operations.
Smart Lithium Battery Fast-charging (2 hours) maintenance-free Lithium battery, capable of multiple shift operation.
Two-Stage Mast - Provides 6 inches of free lift, allowing pallets to be raised off the ground without extending the mast, keeping overall height under 84 inches.
Three-Stage Mast - Delivers full free lift, offering maximum flexibility when working under low ceilings.
Wide View and Clear Visibility - Mast layout is optimized for a wide view and clear visibility while operating.
USB connector - for charging and powering of additional devices during operations.
Easy-Maintenance - Convenient and fast access to any component of the truck. No Special tools are required.
External Programming Port - for diagnosing faults without removing the cover.
CAN-BUS Technology - Easily check condition and troubleshoot with CAN-bus technology.
