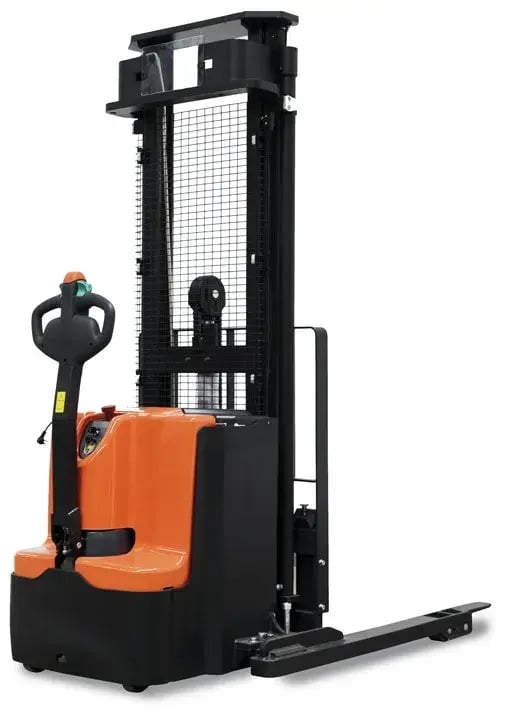

PS35TSL-PS40TSL Walkie Stacker
The PS35TSL and PS40TSL series (3,500 and 4,000lb capacity) electric stackers are available in (2) different maximum lift heights and are professional grade, fully electric stackers. Their robust construction makes them the ideal choice for handling loads within your most demanding warehouse applications.
This ergonomic stacker is equipped with high-quality components like German Schabmueller maintenance free AC Drive motor, German Kordel gearbox, Intorqe brake, Wicke drive wheel, and an Italian ZAPI controller. Highly Productive - Competitively priced - One of the best values on the market.
Available in Lithium also.
Features
German AC Drive Technology - The powerful German Schabmueller maintenance free AC Drive motor in combination with the German Kordel gearbox, Intorqu brake, Wicke drive wheel, and an Italian ZAPI controller, deliver performance, efficiency and reliability - reducing your running costs while providing gentle or fast acceleration.
Long Tiller Design for Ergonomics and Safety - The operator can always keep a safe distance to the truck. The long design ensures lower operational forces and the tillers operating height is naturally positioned for optimum ergonomics. German control handle equipped with dual butterfly-style thumb controls, horn button and belly button. Crawl speed button provides safe operation in tight spaces.
Electric Proportional Lifting and Lowering - The electrically controlled proportional lifting system ensures accurate positioning and stacking operations at every lifting height.
Straddle Leg - Adjustable straddle leg design is suitable for diverse pallet sizes and provides more stability.
Built-In USB Connector - USB connector for charging of additional devices during warehouse operations
Maintenance Friendly - Engineered from the ground up to make service and maintenance easy. Remove the main cove with 2 screws to gain access to all components. Drive and castor wheel are easy to exchange without craning the truck.
Long Lasting Battery Capacities
Robust and Reliable Design - The robust chassis with the strong 0.31 inch thick apron protects the truck and the components against mechanical impacts from the outside.
In combination with the strong metal battery cover, the truck is well-equipped to reduce service work and damages.
Dirty floor environments have less effect to the vertical AC motor design as the components and the brake are out of reach of direct impact.IP 54 protected controller, safe against dust and splash water.
Key switch limits access to approval personal
Emergency power disconnect
Specifications
MODEL PS35TSL PS40TSL
Unit Type Electric Stacker
Load Capacity 3,500lb 4,000lb
Load Center 23.6" 23.6"
Power 24V/270Ah Industrial Battery 24V/350Ah Industrial Battery
Battery Charger Built-In Charger 24V/35A 110V
Fork Dimensions 42" Standard
Max Lift Height 113" to 205" 113" to 178" Depending Upon Mast Selection Depending Upon Mast Selection
Min Lift Height 2" 2"
Mast Stages 2 or 3 2 or 3
Turning Radius 61" 61"
Vehicle Dimensions Download Brochure
Travel Speed Download Brochure
