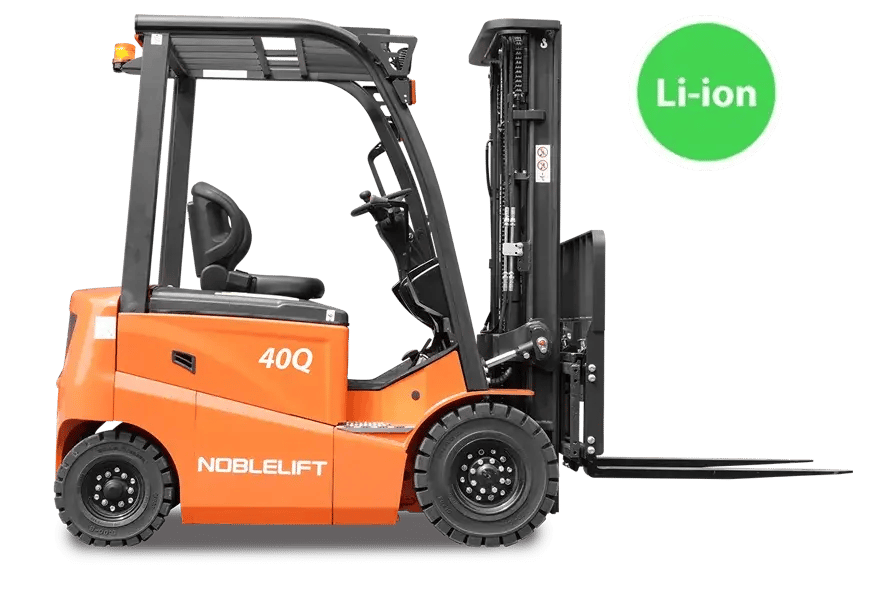

FE4P40Q
Lithium-4-Wheel Electric Forklift
The FE4P40Q 4,000lb capacity, lithium electric forklift uses AC drive technology to achieve high performance with low operating and maintenance costs. Greatly increase your work productivity with this economical, quiet, very low maintenance, ultra-smooth, lithium forklift. Its low-profile design provides a low center of gravity and makes it the ideal choice for applications requiring access to confined spaces.
This ergonomic sit-down forklift is equipped with high-quality, proven components, Deluxe Suspension Seat, solid pneumatic tires, On-Demand Fully Hydrostatic Power Steering, Intelligent Monitoring System (IMS) Display Indicators, and many safety features.
Highly Productive - Competitively priced - One of the best values on the market.
Features
Lithium Battery
Equipped with a maintenance-free Lithium battery that offers fast charging and opportunity charging, allowing you to charge between operations and during breaks.
Low Profile Design
Low Profile design with low center of gravity allows forklift to be smaller in size and more flexible, which is more suitable for working in confined areas where other forklifts cannot.
Ergonomic Hydraulic Controls
provide comfortable operation with wide mast view and easy right-sided control levers and steering wheel with knob.
InMotion Controller CAN-bus Technology
Advanced InMotion electronic controller regulates and monitors all required forklift functions in all situations to assure the AC motor's best efficiency and performance. This technology also provides easy troubleshooting and diagnostics.
Multi-Function Display Screen
with fault alarm, low battery reminder. High, medium and low speed modes.
Intelligent Buffering
when descending to the ground, effectively protects the ground and cargo from damage.
LED Lights
Equipped with standard LED lights: headlights, front turn lights, rear combination lights, warning lights. Bright light with low power consumption allows you to operate freely at night.
Electromagnetic Brake
Adopts car control mode and electromagnetic braking to make the driver's operation more comfortable while improving safety. Electromagnetic brake button provides the ability to cut off power at one time.
Steer Axle Shock Absorption
is designed to protect the vehicle and prolong the service life of the forklift.
Battery Diagnostics
Battery can be diagnosed via CAN connection and provides information about the battery condition: balance of cells, amount of charging/discharging cycles, current, energy consumption, temperature, charging/discharging, parameters, voltage of every cell, faults and alarms, settings of timing for automatic turn off.
Easy Service and Maintenance Access
Specifications
MODEL FE4P40Q
Unit Type Lithium 4-Wheel Electric Forklift, Front Wheel Drive
Load Capacity 4,000lb
Load Center 24"
Power Lithium-ion: 48V/200Ah Standard
Battery Charger 48 volt/100 amp 220 volt 3 phase charger
Fork Dimensions 42" Standard
Std Lift Height 118" Standard
Collapsed Height 78.1"
Mast Stages 2 or 3
Turning Radius 78.3"
Vehicle Dimensions Download Brochure
Travel Speed Download Brochure
Options
-
Side-shift fork positioner
- Internal hosing for optional Mast selections (2-Stage Free View Mast, 2-Stage Full Free View Mast, 3-Stage Full Free View Mast
- White Non-marking Solid Pneumatics
- Rear LED work lights
- Comfort Package (Including Rear Grab Bar with Horn + Left & Right Rearview Mirrors, USB Connector + Deluxe Grab Bar + Deluxe Full Suspension Seat)
- Blue light
- Forward and Reverse on Hydraulic handle
- Fire extinguisher
- Ignition Lock-out seat belts
- Optional Fork Lengths
- Optional Batteries and Chargers
