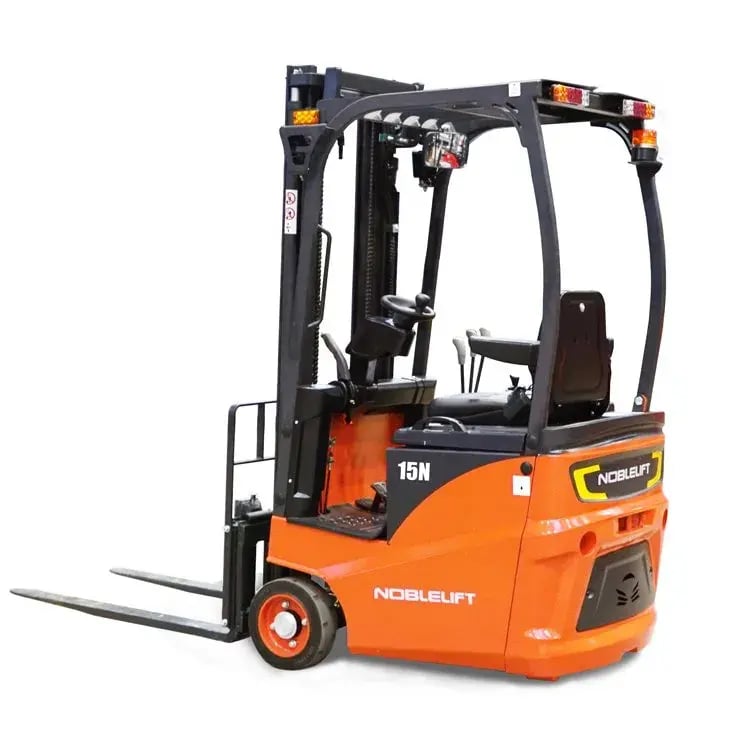

FE3R N Series
3-Wheel Electric Forklift Rear Wheel Drive
The FE3R N Series 1,500 to 2,500lb capacity, cushion electric forklift offers a smart and compact design with great mobility. The FE3R N can turn within its own radius and will provide maximum efficiency for your smaller operations. It uses AC drive technology to achieve high performance, reliability, low operating and maintenance costs.
This ergonomic sit-down forklift is equipped with advanced ZAPI and Curtis electronic controller/self-diagnostic system and has many safety features. Highly Productive – Extreme mobility!
Available in Lithium also.
Features
Intelligent ZAPI or Curtis Self-Diagnostic Display Provides for easy operation and maintenance, standard rear wheel position sensor and display with speed reduction at turning.
Small Diameter Steering Wheel with Spinner KnobAdjustable steering wheel position and seat ensure optimal comfort to the operator, reducing fatigue while improving safety.
Small Diameter Solid Front Wheels for easy and smooth motion.
Front LED Lights, Rear Combination Lights, Warning Lights
Easy Maintenance Fully openable covers for easy service and maintenance. Standard Side Battery Extraction for easy battery replacement.
Easy Maintenance Fully openable covers for easy service and maintenance. Standard Side Battery Extraction for easy battery replacement.
IPx4 Waterproof Design - Built for outdoor use.
Specifications
MODEL FE3R15N FE3R20N FE3R25N
Unit Type 3-Wheel Electric Forklift, Rear Wheel Drive
Load Capacity 1,500lb 2,000lb 2,500lb
Load Center 19.7" 19.7" 19.7"
Power 24V/280Ah Standard | 24V/420Ah Standard
Battery Charger 24V/35A 110V Single Phase Charger | 24V/65A 240V Single Phase Charger
Fork Dimensions 42" Standard 42" Standard 42" Standard
Std Lift Height 118" 118" 118"
Collapsed Height 77.4" 77.4" 77.4"
Mast Stages 2 or 3 2 or 3 2 or 3
Turning Radius 45.7" 52" 53.1"
Vehicle Dimensions Download Brochure
Travel Speed Download Brochure
