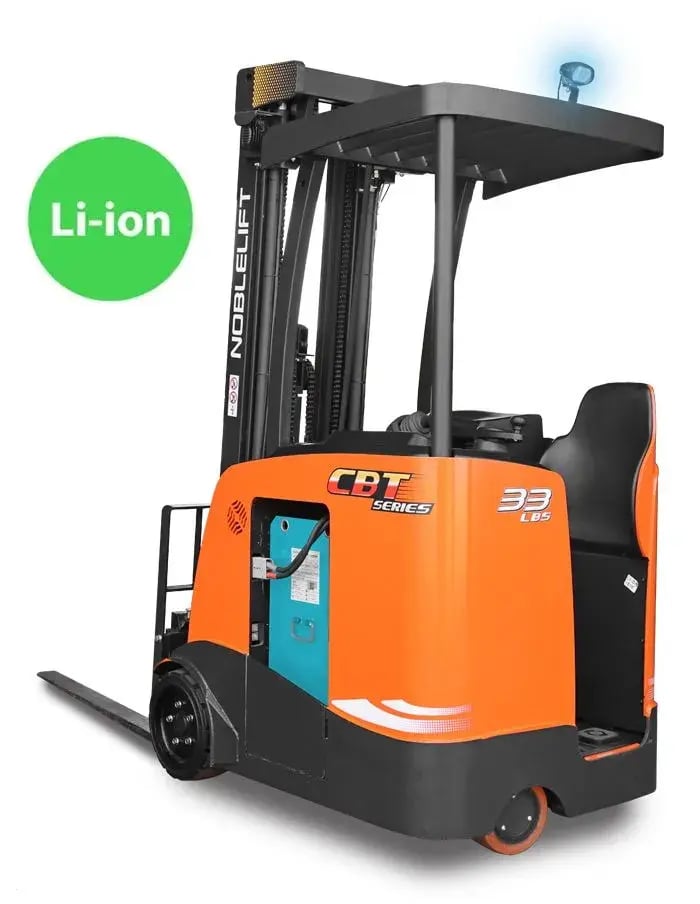

CBT33-40

The CBT33-40 Series 3,300 to 4,000lbs capacity Lithium Stand-Up Counterbalance Forklifts are designed for indoor applications where the operator needs to get on and off the vehicle frequently. Engineered for reliability and performance, these forklifts offer exceptional visibility, ensuring precision and safety in a variety of applications from loading trailers to navigating through busy warehouse aisles.

They offer lift heights from 157” to 276”, a small turning radius and are equipped with dual independent AC drive motors with separate drive controllers that provide a superior driving experience. Lithium charger included. Capable of multiple shift operation. Boost your productivity with these highly maneuverable, very low maintenance, ultra-smooth, lithium forklifts.

Features

Multi-Functional Handle controls key vehicle functions – forward/backward travel speed, side shifting and proportional lifting and lowering.

One-Button Tilt Control System ensures safety by limiting the tilt of cargo when forks are lifted high.

Smart Lithium Battery
Large capacity, fast-charging (2.5 hours) maintenance-free Lithium battery, capable of multiple shift operation. Side extraction reduces maintenance time.

Wireless 4G Battery Monitoring allows for remote battery programming and troubleshooting.

The integrated BMS (Battery Management System) controls all important parameters and performance of the lithium battery.

Curtis Controller and CAN-BUS Technology
Easily check condition and troubleshoot with Curtis controller and CAN-bus technology.

Adjustable Backrest and Hip Pad contour the body to ensure operator comfort throughout the entire work shift.

Adjustable Armrest can be adjusted to maximize the comfort of operators of different heights.
The Floor Suspension System adapts to the weight of the operator and provides impact and vibration protection.

Dual Independent AC Drive Motors with separate drive controllers provide superior maneuverability while turning.

AC Drive and German Gearbox Technology ensure accurate control and travel speed.

Dual-Brake/Presence Pedal Design protects the operator and the forklift. If both pedals are not depressed, the forklift will be not travel in any direction.

Large LED Screen
Large LED screen conveniently displays lifting weight, lifting height, speed, power, steering, fault code, alarm and more.

Wide View and Clear Visibility
Angled columns, overhead guard design and open view mast give operator’s a clean line of site to the load and their surroundings for increased efficiency and improved safety.

USB connector for charging and powering of additional devices during operations.

Easy-Maintenance
Convenient and fast access to any component of the truck. No Special tools are required.

Specifications

MODEL CBT33-157 CBT33-189 CBT33-207 CBT33-225 CBT33-244 CBT33-236 CBT33-256 CBT33-276
Unit Type Lithium Stand Up Counterbalance Forklift
Load Capacity 3,300lb
Load Center 19.7"
Power 36V / 560Ah Lithium Battery
Battery Charger 36V/200A
Fork Dimensions 36" Standard
Max Lift Height 157" 189" 207" 225" 244" 236" 256" 276"
Mast Stages 3 3 3 3 3 4 4 4
Turning Radius 55.4" 55.4" 55.4" 55.4" 55.4" 63.4 63.4 63.4
Vehicle Dimensions Download Brochure
Travel Speed Download Brochure
MODEL CBT40-157 CBT40-189 CBT40-207 CBT40-225 CBT40-244 CBT40-236 CBT40-256 CBT33-240
Unit Type Lithium Stand Up Counterbalance Forklift
Load Capacity 4,000lb
Load Center 19.7"
Power 36V / 560Ah Lithium Battery
Battery Charger 36V/200A
Fork Dimensions 36" Standard
Max Lift Height 157" 189" 207" 225" 244" 236" 256" 276"
Mast Stages 3 3 3 3 3 4 4 4
Turning Radius 55.4" 55.4" 55.4" 55.4" 55.4" 63.4 63.4 63.4
Vehicle Dimensions Download Brochure
Travel Speed Download Brochure
