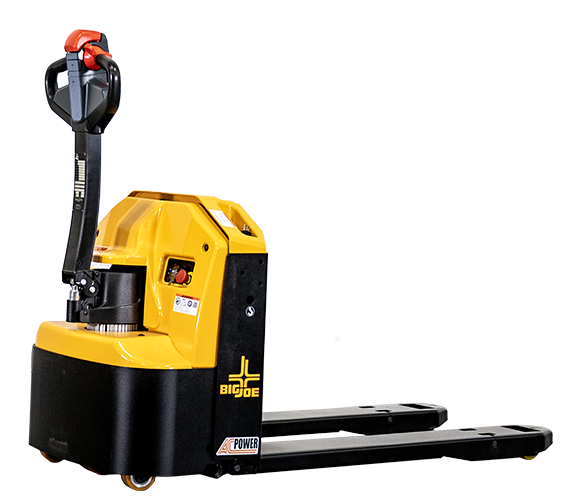

LPT45 Electric Pallet Jack
The Big Joe LPT45 Electric Pallet Jack is a heavy-duty, lithium-ion powered electric pallet truck designed to move and lift palletized loads up to 4,500 lbs with minimal effort. It combines a compact, maneuverable form factor with intuitive operator controls — including ergonomic handle, thumb-activated travel and lift controls, horn, and reversing switch — to enhance safety and precision in busy warehouse, manufacturing, or delivery environments.
Features
- Estimated charging time: 2.7 hours
- Ergonomic handle with reversing switch, horn, and dual “butterfly”
- Thumb controls are intuitive and allow for safe, accurate operation
- The unique Easy Exchange battery system functions like common cordless hand tools
- 24V AC drive motor
- Battery discharge indicator
- Key switch
Specifications
| Capacity at 24in. Load Center | 4,500 lbs. |
| Lowered Height (in.) | 3.2 |
| Maximum Lift Height (in.) | 8.1 |
| Fork Dimensions W x L (in.) | 27 x 36/48 |
| Battery Type | Integrated Lithium-ion |
| Battery Voltage and Capacity | 24V, 100Ah |
| Charger | Onboard Charger |
