LCE50-65S Electric Forklift
Looking to electrify your internal combustion fleet? This is the solution. The LCE50-65S is designed for high productivity in warehouse and logistics operations. Big Joe’s purpose-built, integrated Lithium-ion battery and powertrain deliver high performance in a package that was designed with operator comfort and productivity in mind.
Features
- Designed to Meet or Exceed Performance of Internal Combustion Forklifts
- UL-Recognized Integrated Lithium-ion Maintenance-free Battery
- Available with 18.4kWh and 36.8kWh Batteries
- Onboard 120/240VAC Battery Charger with Power Cords
- Bluetooth-Enabled LCD Display for Diagnostics and Tuning
- 80V AC Drive and Hydraulic Pump Motors
- Foot-Activated Parking Brake Lever
- Low Dash for Excellent Visibility
Charging Made Easy
Every LCE50-65S forklift comes standard with an onboard charger that plugs into a typical single-phase 120V or 240V wall outlet, allowing you to recharge almost anywhere. For operations that require faster charge rates, offboard chargers that conveniently connect to the truck’s integrated charge port are available.
Operator Compartment: Your Employee’s Office
The operator reaps the benefits of a wide-open operator compartment, large step, chamfered hood and natural operating position, all thanks to the integrated design of the battery. For operators accustomed to internal combustion forklifts, LCE50-65S feels natural.

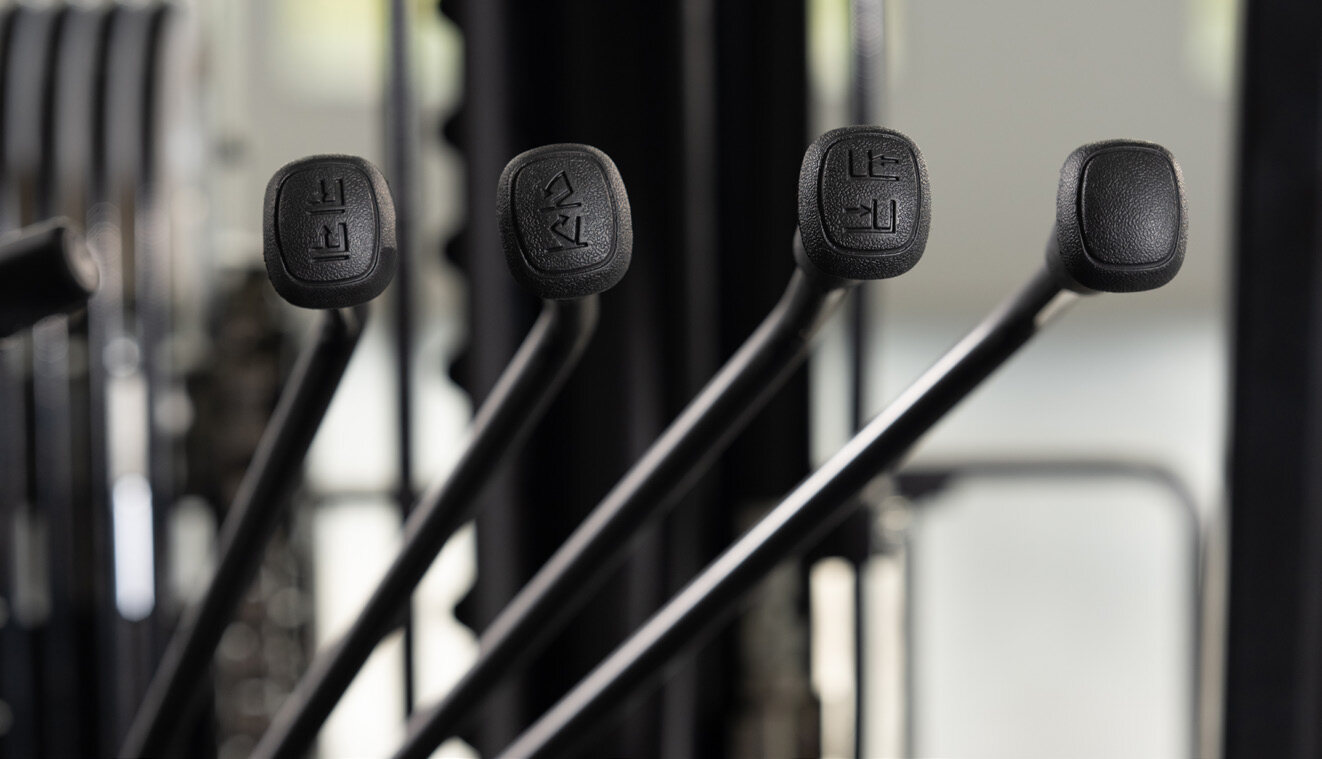

Smooth and Efficient Hydraulic Controls
Ergonomic controls are within easy reach of the operator and allow for smooth, precise load control. Energy efficiency is optimized since the hydraulic pump only activates when flow is needed and utilizes proportional control.
Specifications
| LCE50S | LCE65S | |
| Capacity at 24in. Load Center | 5,000 lbs. | 6,500 lbs. |
| Battery Size | 36.8kWh | 36.8kWh |
| Overhead Guard Height (in.) | 83.1 | 83.1 |
| Overall Width (in.) | 43.0 | 44.2 |
| Right Angle Stack (in.) | 96.3 | 99.3 |
| Max Travel Speed (mph) | 10.6 | 11.2 |
| Max Lift Speed (ft/min.) | 126.0 | 124.0 |
