S22 - S22-R
2,200 lb. Walkie Straddle Stacker

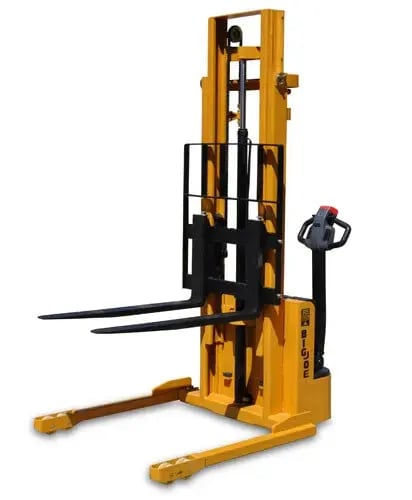

S22 2,200lb. capacity standard model with maximum lift heights from 62"-116".
An easy-to-use and maintain truck that is a good choice for general material handling, stacking, and work positioning in tight areas. Offset tiller and control head improve visibility, turning radius, and safety when traveling in the powerhead's first direction.

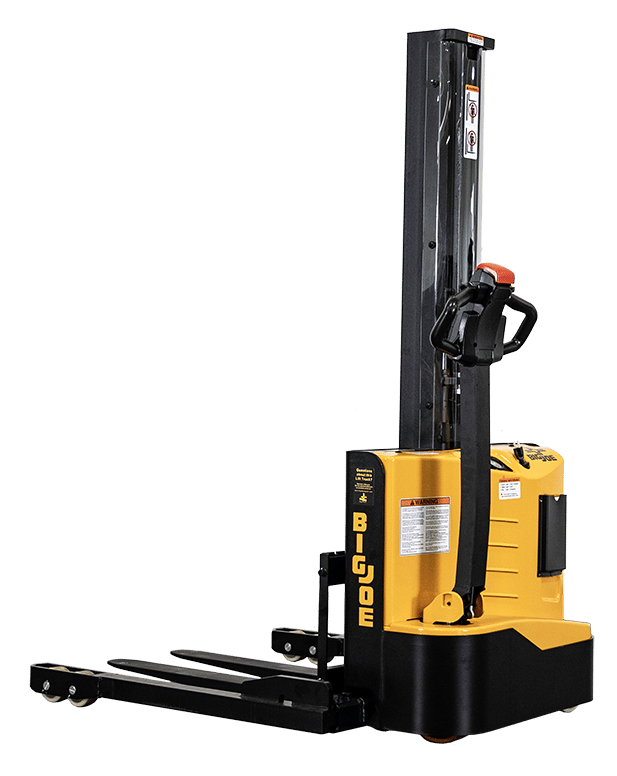

S22-62R forkover model also available for use with skids, general work positioning and transportation.
Features
- 24 volt system
- High efficiency drive motors.
- Adjustable straddles. S22-62R Fork over configuration available.
- Infinitely variable speed operation for tight turning in close quarters
- Ergonomic handle with safety reversing switch and horn
- Maintenance free integral batteries and 110volt charger
- Battery discharge indicator, Emergency power disconnect
- Key switch to limit access to approved personnel
Specifications
| • Vehicle Type | Walkie Straddle Stackers |
| • Capacity | 2,200lbs. @ 24” load center |
| • Power | 24 volt - S22 DC / S30 AC |
| • Max Lift Heights | S22 62", 96", 116" |
| • Fork Dimensions | 42" x 4" x 1.5" / S22-62R 45" x 22" |
| • Vehicle Dimensions | See specification sheet |
| • Turning Radius | See specification sheet |
| • Travel Speed | 2.5 mph |
| • Battery Compartment | See specification sheet |
| • Battery Capacity | S22 60AH to 85AH |
| • Charger | Integral to pack, 110v plug-in |
