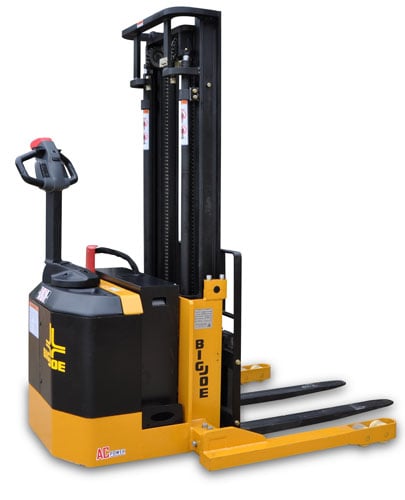

PDS30-40
3,000 or 4,000 lbs. Power Drive Straddle Truck
3,000lb and 4,000 lbs. capacity models with lift heights to 177"

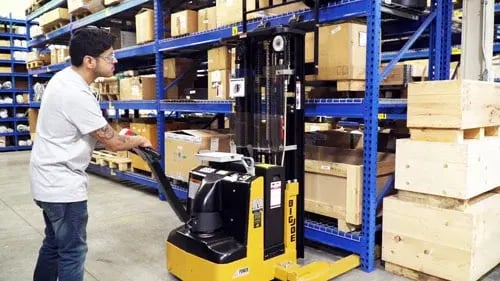

An easy to use and maintain truck that is a good choice for warehouse operations and other environments where space is limited.
Features
- 24 volt ZAPI transistor control
- High torque AC drive motor.
- Double reduction helical ZF GK10 transmission
- Shaft mounted electromechanical brake
- Creep speed operation for tight turning in close quarters
- Ergonomic handle with safety reversing switch and horn
- 224AH Maintenace free battery pack with integral charger
- Battery discharge indicator with hour meter
- Key switch to limit access to approved personnel
Specifications
|
• Vehicle Type
|
Walkie Straddle Stackers
|
|
• Capacity
|
3,000lbs./4,000lbs. @ 24” load center
|
|
• Power
|
24 volt AC electric with ZAPI transistor control-inverter
|
|
• Max Lift Height
|
Masts available up to 177"
|
|
• Collapsed Height
|
Masts available as low as 71"
|
|
• Fork Dimensions
|
42" L x 4" W x 1.5" Thick |
|
• Vehicle Dimensions
|
See specification sheet |
|
• Turning Radius
|
See specification sheet |
|
• Travel Speed
|
Programmable with optional handset (0-3.7mph empty / 0-2.9mph loaded)
|
|
• Battery Compartment
|
26.37” x 9.06” x OPEN
|
|
• Battery Capacity
|
224AH Maintenance free battery pack
|
|
• Charger
|
Integral to pack, 110v plug-in
|
