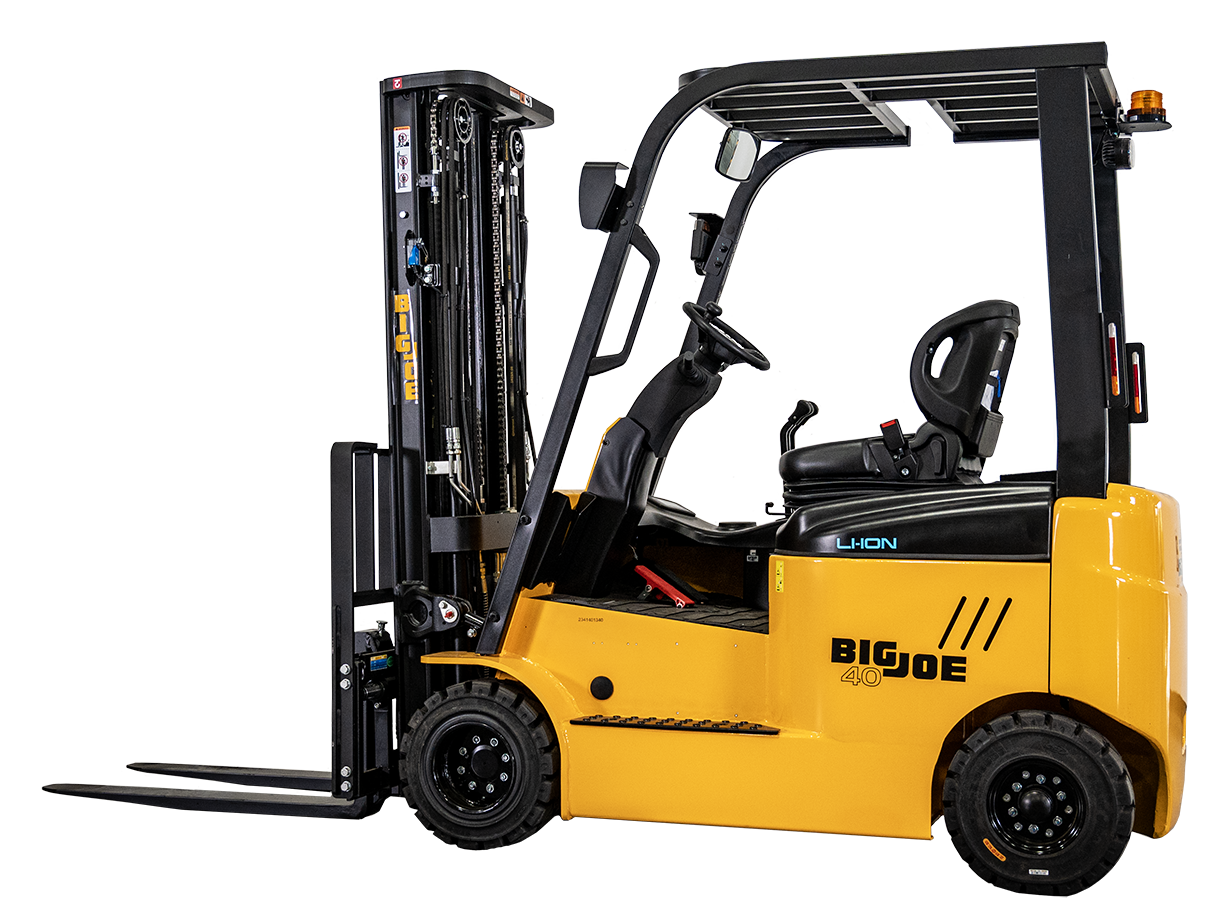

LXE40 4-Wheel Lithium Electric Forklift
Integrated lithium-ion provides simplicity and reduces cost.
Many businesses know that it takes Lithium-ion to get the most efficiency, uptime and cost effectiveness out of an electric forklift. And now customers are learning that it takes an integrated power source for simplicity of operation and optimal ergonomics. The Big Joe LXE40 delivers all of the above—an optimal package that supports the operator while driving down cost of operations. Big Joe is one of the few suppliers to develop and produce both forklift and battery, so customers have one expert supplier to help from end to end.
Features
- UL-Recognized Integrated Lithium-ion 17.3kWh Battery
- Telemetry Monitoring System with Over-the-Air Updating
- Fully-Electric and Maintenance-Free Service Brakes
- Electromagnetic Parking Brake
- 48V AC Drive Motor
- Large Step for Ease of Ingress/Egress
- Low Dash for Excellent Visibility
Specifications
| Capacity at 24in. Load Center | 4,000 lbs. |
| Battery Size | 17.3kWh |
| Overhead Guard Height (in.) | 81.9 |
| Overall Width (in.) | 42.5 |
| Right Angle Stack (in.) | 97.8 |
| Max Travel Speed (mph) | 8.7 |
| Max Lift Speed (ft/min.) | 82.6 |
