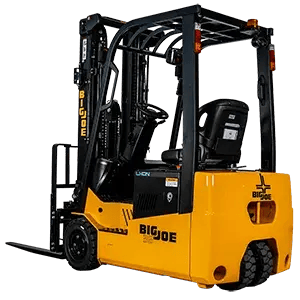

LVE35 3-Wheel Lithium Electric Forklift
Integrated lithium-ion provides simplicity and reduces cost.
Many businesses know that it takes Lithium-ion to get the most efficiency, uptime and cost effectiveness out of an electric forklift. And now customers are learning that it takes an integrated power source for simplicity of operation and optimal ergonomics. The Big Joe LVE35 delivers all of the above—an optimal package that supports the operator while driving down cost of operations. Big Joe is one of the few suppliers to develop and produce both forklift and battery, so customers have one expert supplier to help from end to end.
* Based on 48” (1200mm) long x 40” (1000mm) wide load.
Features
- UL-Recognized Integrated Lithium-ion 18.4kWh Battery
- Telemetry Monitoring System with Over-the-Air Updating
- Onboard 120/240VAC Battery Charger with Power Cords
- Dual AC Drive Motors with Zero Turn Radius
- Wet Disc Service Brakes
- Low Dash for Excellent Visibility
Specifications
| Capacity at 24in. Load Center | 3,500 lbs. |
| Battery Size | 18.4kWh |
| Overhead Guard Height (in.) | 81.8 |
| Overall Width (in.) | 43.3 |
| Right Angle Stack (in.) | 128.6 |
| Max Travel Speed (mph) | 8.7 |
| Max Lift Speed (ft/min.) | 88.6 |
A Battery without Headaches
The Lithium-ion battery is completely maintenance-free. That means no watering, toxic fumes or corrosive and explosive gases. And you only need one battery per truck—no cranes, hoists or roller systems for swapping batteries are required. This simplicity not only saves space in your warehouse—it also reduces overhead since staffing doesn’t need to be dedicated to battery services.

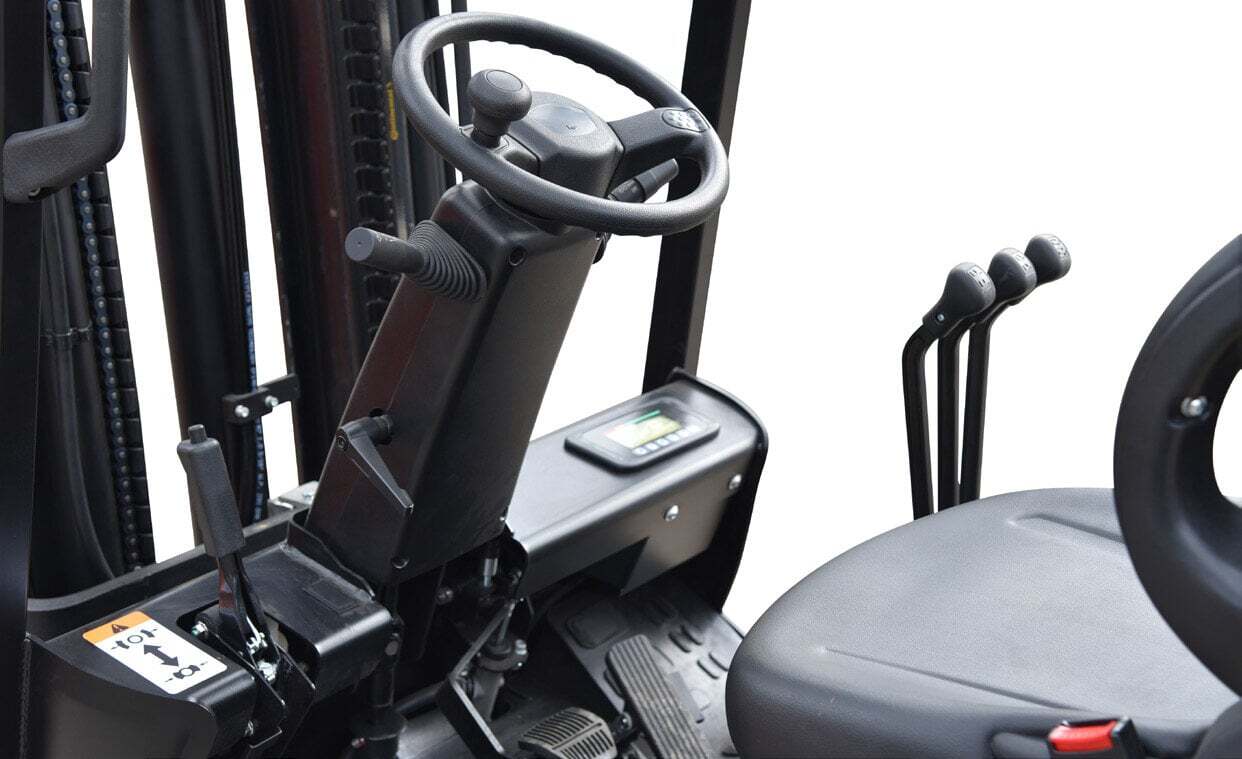

Smooth and Efficient Hydraulic Controls
Ergonomic controls are within easy reach of the operator and allow for smooth, precise load control. Energy efficiency is optimized since the hydraulic pump only activates when flow is needed and utilizes proportional control.

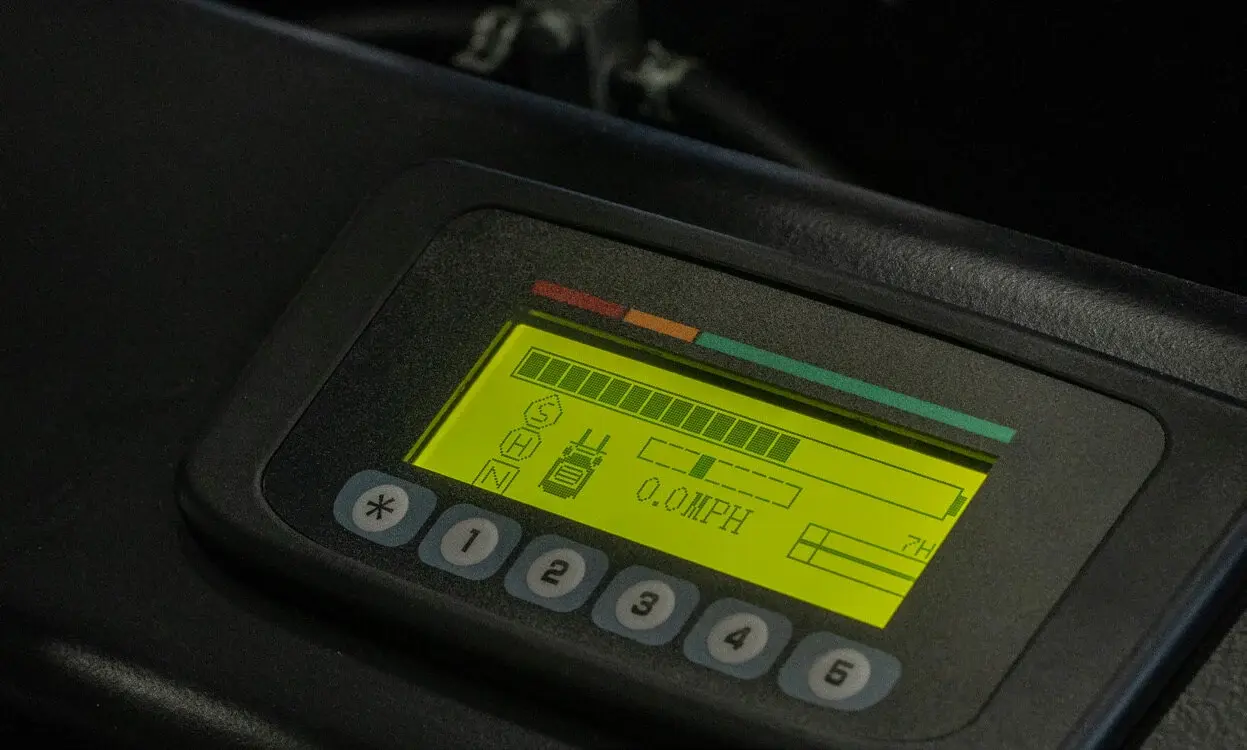

Wireless Telematics for Operational Insights
LVE35 comes standard with onboard telematics that track key utilization metrics like key-on time, energy consumption, error codes and recharging patterns. This data can help spot missed opportunities for recharging, identify peak usage times and monitor the health of your equipment.
