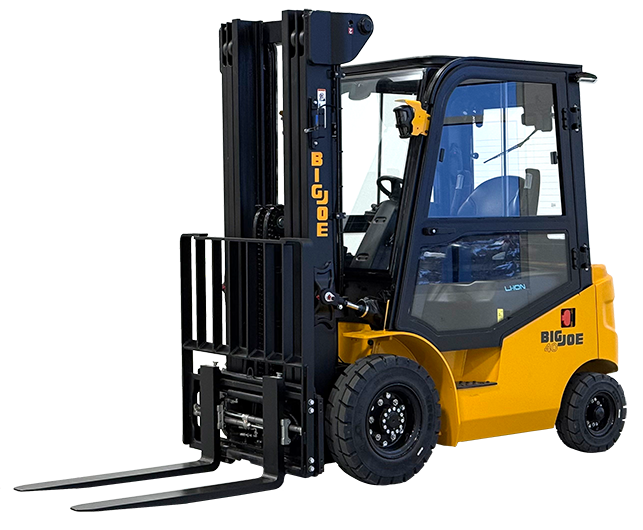

LPX40 Lithium Electric Forklift
4,000 lb. Capacity Integrated Lithium-Ion Four-Wheel Pneumatic Electric Forklift
An electric forklift made to thrive outside.
Want to eliminate fuel and engine maintenance costs but need to work outdoors? This is the solution. The LPX40 features large tires and plenty of ground clearance for outdoor applications where internal combustion forklifts used to dominate. Big Joe’s purpose-built integrated Lithium-ion forklift, available with a full cab and heater, allows operations to go electric without sacrificing productivity or operator comfort.
Features
- Designed to Meet or Exceed Performance of Internal Combustion Forklifts

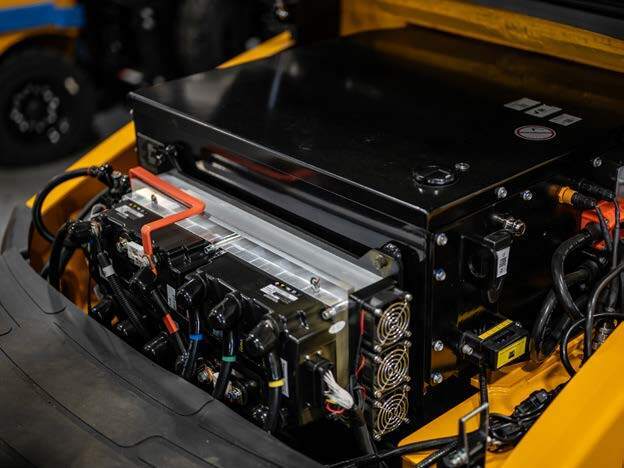

- UL-Recognized Integrated Lithium-ion Maintenance-free Battery
- Available with 18.4kWh and 36.8kWh Battery Capacities

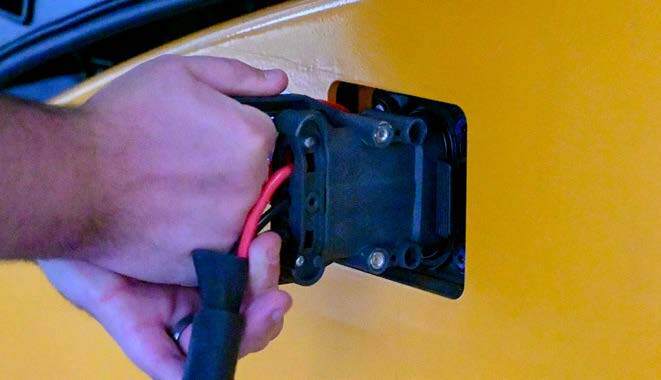

- Onboard 120/240VAC Battery Charger with Power Cords
- Bluetooth-Enabled LCD Display for Diagnostics and Tuning
- Large Tires and Ground Clearance for Outdoor Operation
- IPX4-rated Chassis for Outdoor Operation
- Available with a Full Cab with Heater
Specifications
| LPX40 | |
| Capacity at 24in. Load Center | 4,000 lbs. |
| Battery Size | 36.8kWh |
| Overhead Guard Height (in.) | 85.2 |
| Overall Width (in.) | 45.4 |
| Right Angle Stack (in.) | 102.6 |
| Max Travel Speed (mph) | 12.4 |
| Max Lift Speed (ft/min.) | 106.3 |
FOOTNOTE: Refer to specifications sheet for most up-to-date information. Lift trucks specifications are subject to change without notice. Any specifications critical to the intended application of the forklift should be reviewed with your Big Joe dealer.
Advanced Electrical System
Big Joe AC controller technology delivers high performance efficiently while significantly reducing maintenance costs and extending the vehicle’s service life. The battery management system continuously monitors performance during operation and charging to optimize the battery’s service life.
A Drivetrain for High Productivity and Low Operating Cost
A permanent magnet AC drive motor delivers efficiency and fine inching control when precision matters. This same system delivers responsive torque and smooth acceleration when it’s time to get moving. Regenerative motor braking recharges the battery, while drum brakes provide additional brake performance when needed. Operators working outside can appreciate the lack of a hot, noisy engine under the seat. Business owners can appreciate the lack of fuel costs and not needing to worry about unexpected—and expensive—engine breakdowns.
Wireless Telematics for Operational Insights
LVE35 comes standard with onboard telematics that track key utilization metrics like key-on time, energy consumption, error codes and recharging patterns. This data can help spot missed opportunities for recharging, identify peak usage times and monitor the health of your equipment.
