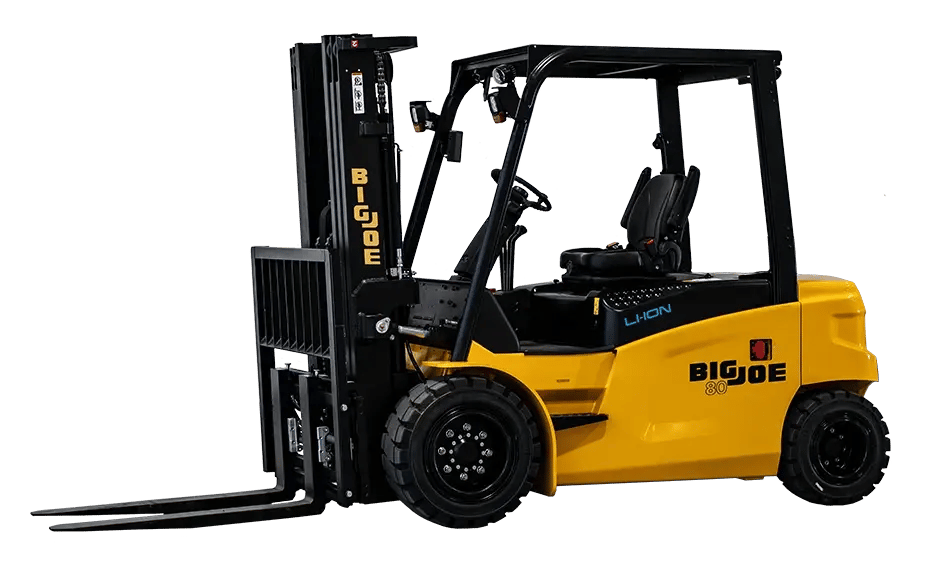

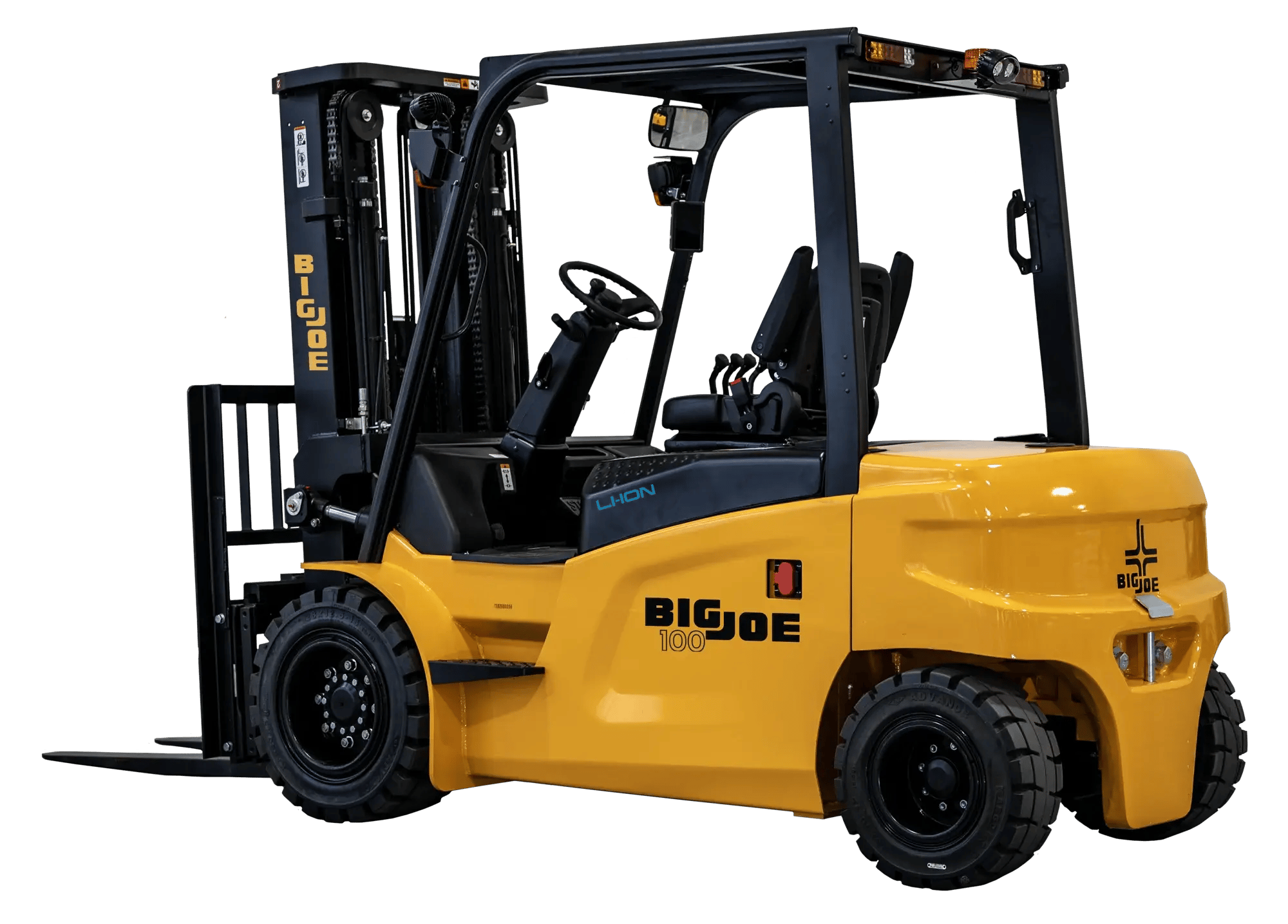

8,000-10,000 lb. Capacity Integrated Lithium-Ion Four-Wheel Pneumatic Electric Forklift
Big returns with integrated lithium-ion.
Ready to stop spending money on fuel and expensive engine maintenance? The LPE80-100S series is equipped with Big Joe’s purpose-built, integrated Lithium-ion battery, so operation is smooth, quiet and cost-effective. A single, brushless AC drive motor provides precise control. The long wheelbase and wide, pneumatic-shaped solid tires contribute to a stable ride. The LPE80-100S series is the ideal electric solution for light to moderate duty applications that need to move those larger loads. With standard onboard charging and over-the-air telematics, going electric with Big Joe is an easy choice.
Features
- Designed to Meet or Exceed Performance of Internal Combustion Forklifts
- UL-Recognized Integrated Lithium-ion Maintenance-free Battery
- Available with 18.4kWh and 36.8kWh Batteries
- Onboard 120/240VAC Battery Charger with Power Cords
- Bluetooth-Enabled LCD Display for Diagnostics and Tuning
- 80V AC Drive and Hydraulic Pump Motors
- Foot-Activated Parking Brake Lever
- Low Dash for Excellent Visibility
Charging Made Easy
Every LPE80-100S forklift comes standard with an onboard charger that plugs into a typical single-phase 120V or 240V wall outlet, allowing you to recharge almost anywhere. For operations that require faster charge rates, offboard chargers that conveniently connect to the truck’s integrated charge port are available.
Remote Work Isn’t Just for the Office

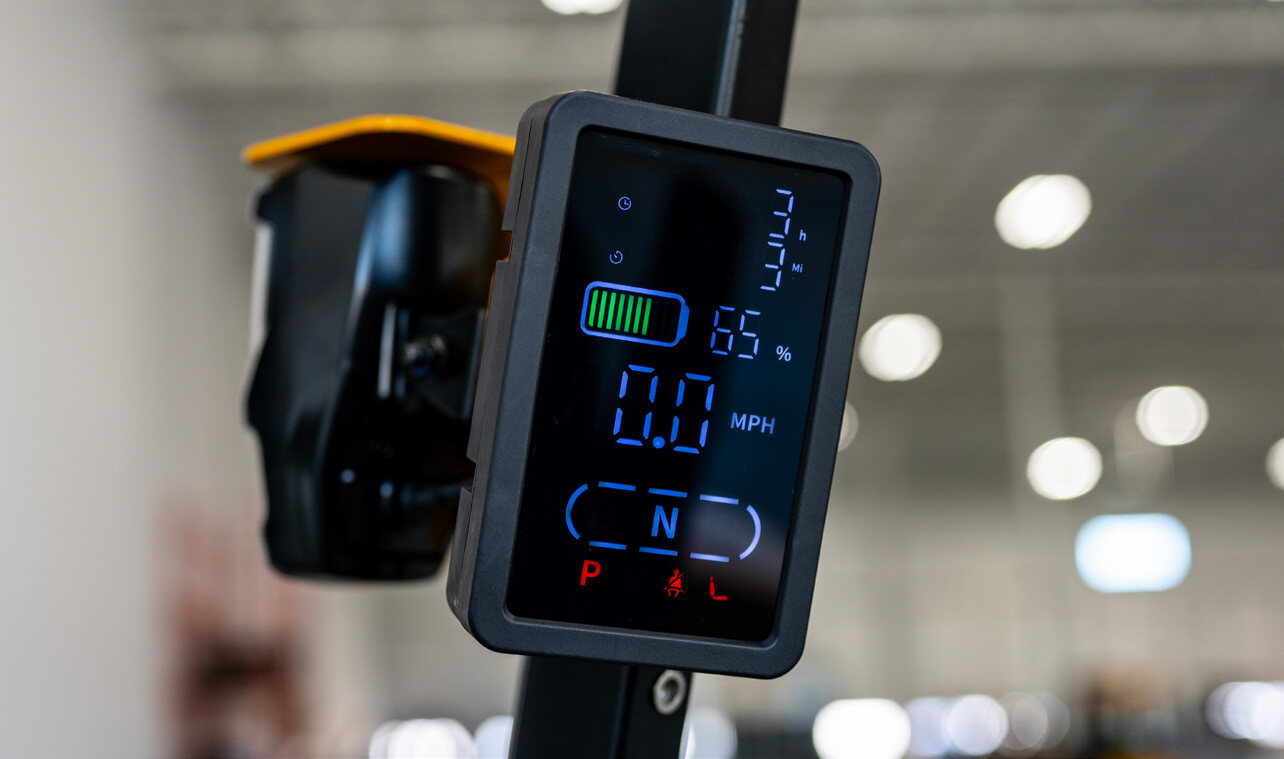

LPE80-100S comes standard with a digital LCD display that enables wireless programming and diagnostics via Bluetooth or the standard telematics system that includes cloud-based maintenance monitoring, GPS tracking and related data services. When maintenance is required, features like a gas-spring assisted hood, removable floor plates and covers, and a design philosophy centered on simplicity help make the technician’s job easier.
Smooth and Efficient Hydraulic Controls
Ergonomic controls are within easy reach of the operator and allow for smooth, precise load control. Energy efficiency is optimized since the hydraulic pump only activates when flow is needed and utilizes proportional control.
Specifications
| LPE80S | LPE100S | |
| Capacity at 24in. Load Center | 8,000 lbs. | 10,000 lbs. |
| Battery Size | 44.8kWh | 44.8kWh |
| Overhead Guard Height (in.) | 92.6 | 92.6 |
| Overall Width (in.) | 61.0 | 61.0 |
| Right Angle Stack (in.) | 129.3 | 130.6 |
| Max Travel Speed (mph) | 9.0 | 9.0 |
| Max Lift Speed (ft/min.) | 88.5 | 88.5 |
