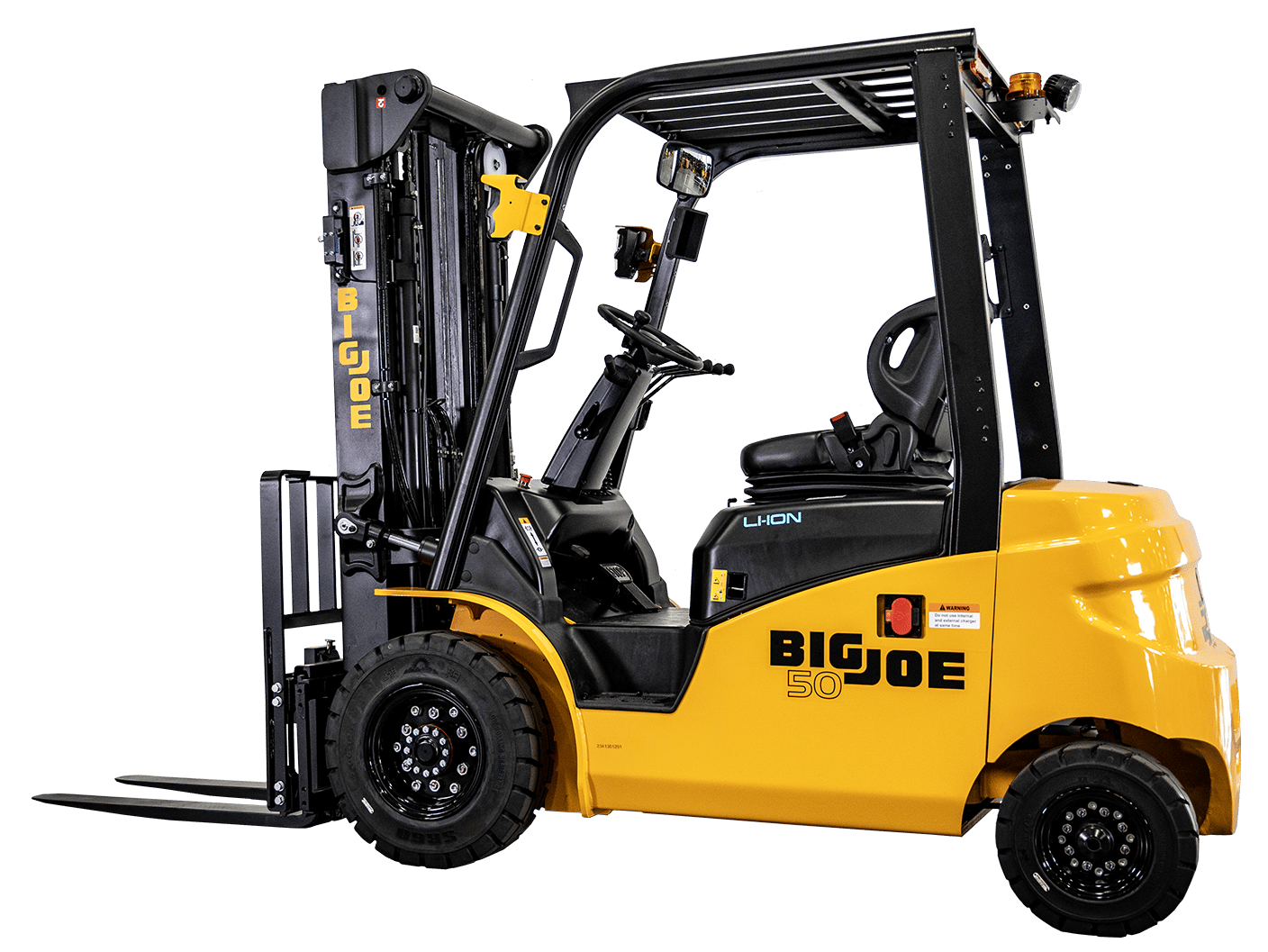

LPE50-70S Lithium Electric Forklift
Designed for Material Handling in Tough Conditions.
Looking to electrify your internal combustion fleet? This is the solution. The LPE50-70S series features large tires and plenty of ground clearance for both indoor and outdoor applications that require navigation over the roughest surface conditions. Big Joe’s purpose-built, integrated Lithium-ion battery and powertrain deliver high performance in a package that was designed with operator comfort and productivity in mind.
* Based on 48” (1200mm) long x 40” (1000mm) wide load.
Features
- Designed to Meet or Exceed Performance of Internal Combustion Forklifts
- UL-Recognized Integrated Lithium-ion Maintenance-free Battery
- Available with 18.4kWh and 36.8kWh Batteries
- Onboard 120/240VAC Battery Charger with Power Cords
- Bluetooth-Enabled LCD Display for Diagnostics and Tuning
- 80V AC Drive and Hydraulic Pump Motors
- Foot-Activated Parking Brake Lever
- Low Dash for Excellent Visibility
Specifications
| LPE50S | LPE60S | LPE70S | |
| Capacity at 24in. Load Center | 5,000 lbs. | 6,000 lbs. | 7,000 lbs. |
| Battery Size | 36.8kWh | 36.8kWh | 36.8kWh |
| Overhead Guard Height (in.) | 85.2 | 85.8 | 85.8 |
| Overall Width (in.) | 45.4 | 47.6 | 47.6 |
| Right Angle Stack (in.) | 110.3 | 111.3 | 111.3 |
| Max Travel Speed (mph) | 10.5 | 10.5 | 10.5 |
| Max Lift Speed (ft/min.) | 98.4 | 98.4 | 98.4 |

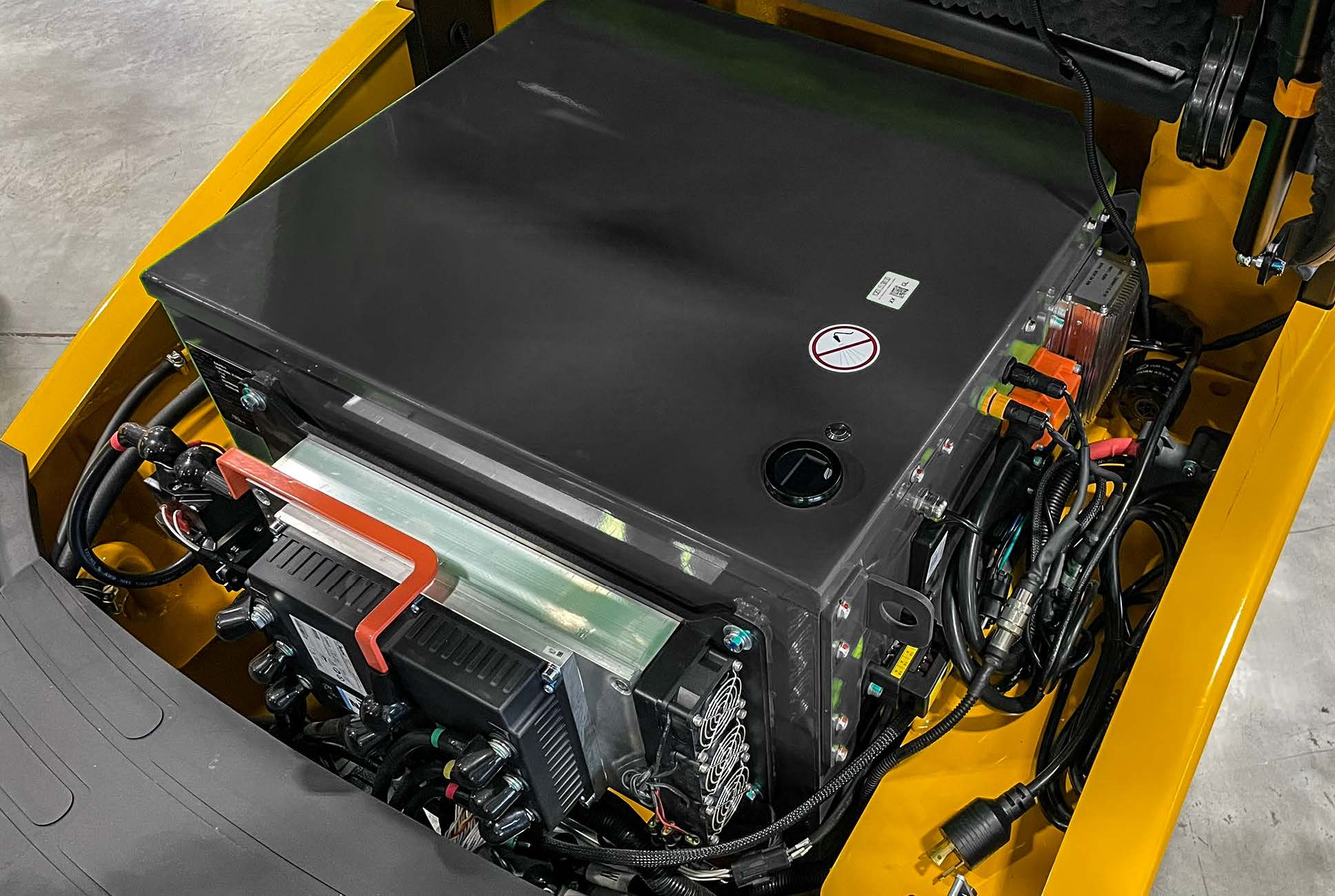

Integrated Lithium: Power That Means Business
The UL-recognized Lithium-ion battery is designed and manufactured by Big Joe, in our state-of-the-art, automated facility to deliver the highest levels of quality, durability and reliability. The battery pairs seamlessly with the truck, requiring no additional displays, connection ports, power buttons or other complications. Simply buckle up, turn the key, release the parking brake and go.

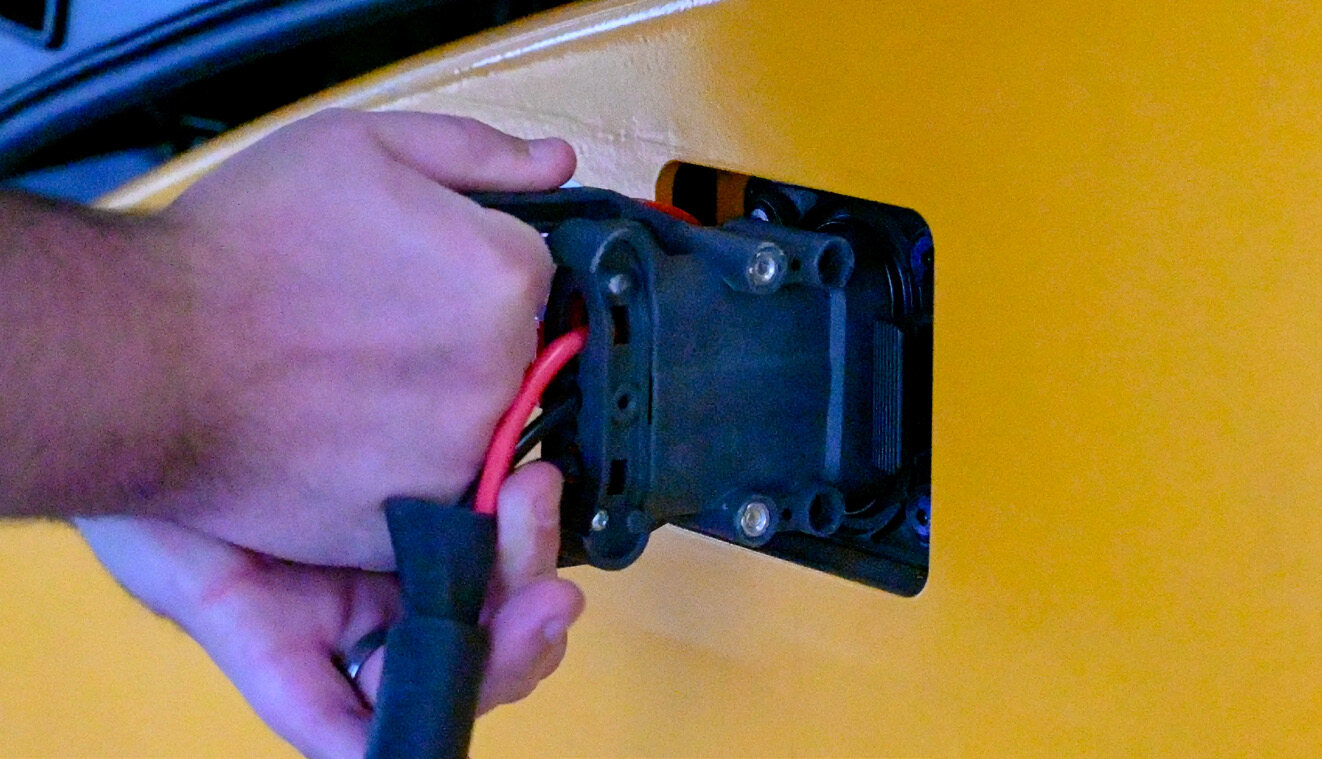

Charging Made Easy
Every LPE50-70S forklift comes standard with an onboard charger that plugs into a typical single-phase 120V or 240V wall outlet, allowing you to recharge almost anywhere. For operations that require faster charge rates, offboard chargers that conveniently connect to the truck’s integrated charge port are available.

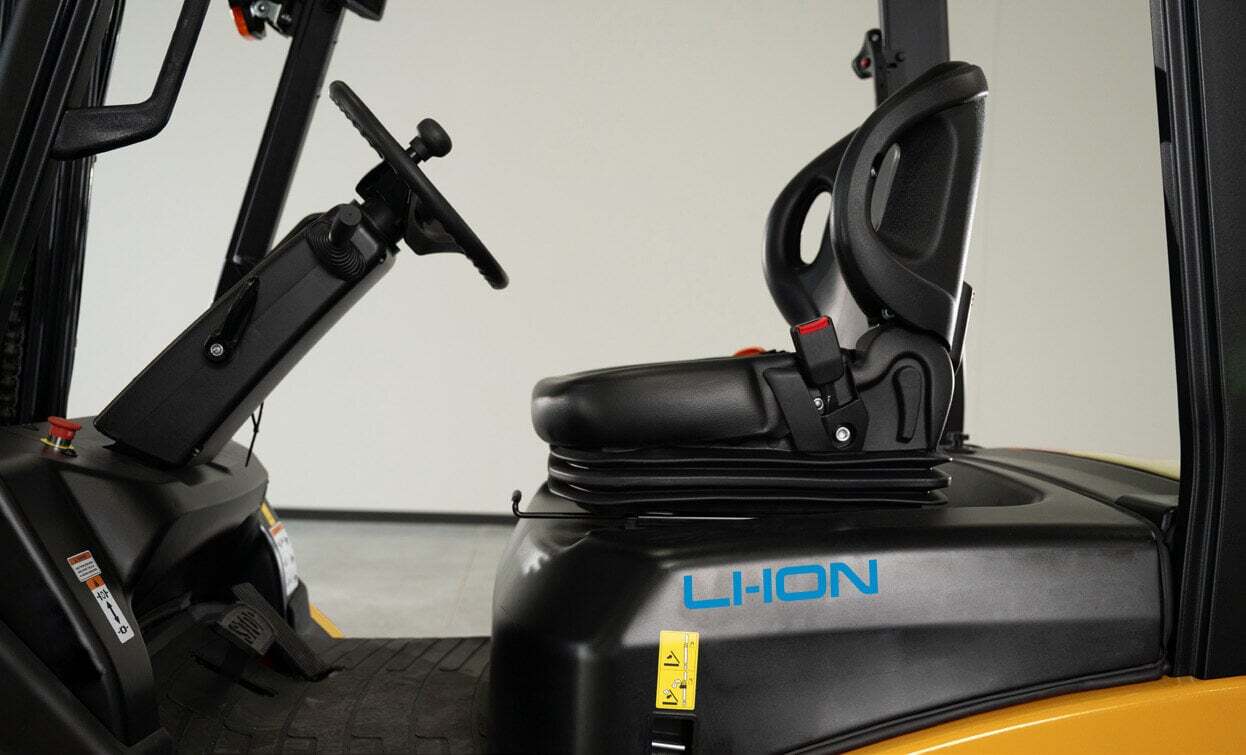

Operator Compartment: Your Employee’s Office
The operator reaps the benefits of a wide-open operator compartment, large step, chamfered hood and natural operating position, all thanks to the integrated design of the battery. For operators accustomed to internal combustion forklifts, LPE50-70S feels natural.
