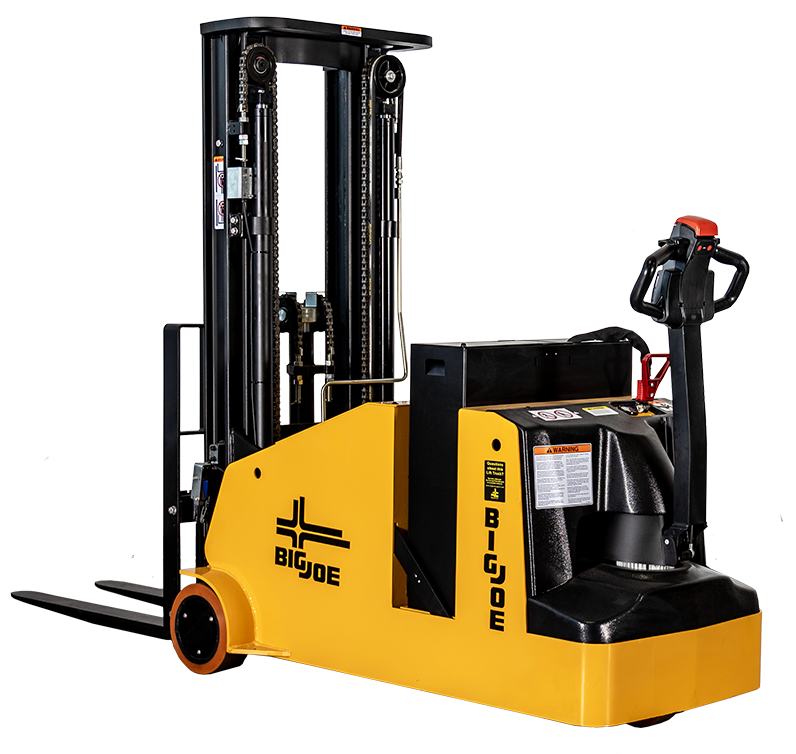

CB22 Walkie Stacker
Counterbalanced Lift Truck is designed for applications where extended straddle legs or outriggers will interfere with loading or unloading.
Operator can easily approach mezzanines and racks with lower braces. Perfect for loading and unloading shipping containers or trucks since there are no stabilization legs to get in the way. Tight 56" turning radius eases maneuverability in confined aisles. 2.2KW lift motor raises loads 25 ft./min. and travels via 0.9KW AC drive motor at 3.1 mph loaded and 3.4 mph unloaded. 42"L x 4"W x 1-½" forks offer 24" load center and adjust from 8" to 28" O.D. Includes (4) 6V 224Ah maintenance-free batteries, battery discharge gauge and integral 25 amp 110V charger. Ergonomic handle controls speed and lift with left or right hand, and offers auto-reverse safety belly button switch. 2 Year Limited Warranty.
Features
Specifications
• 24 volt Zapi AC Controllers
• High torque AC drive motor
• Lift, lower and tilt buttons in handle
• Forward and back tilt for accurate positioning of loads
• High visibility I-beam mast with lift heights to 157"
• Base mounted tiller provides low steering effort on CB22
• Premium AGM battery pack or industrial battery options
• Battery discharge indicator with hour meter
• ITA Class II fork carriage
|
• Vehicle Type
|
Counterbalanced Stackers
|
|
• Capacity
|
2,200 @ 24” load center
|
|
• Power
|
24 volt AC electric with Zapi controller
|
|
• Max Lift Height
|
Masts available up to 157"
|
|
• Collapsed Height
|
Masts available as low as 71"
|
|
• Fork Dimensions
|
42" L x 4" W x 1.5" Thick
|
|
• Vehicle Dimensions
|
See specification sheet
|
|
• Turning Radius
|
See specification sheet
|
|
• Travel Speed
|
See specification sheet
|
|
• Battery Compartment
|
See specification sheet
|
|
• Battery Capacity
|
224AH AGM pack or Industrial
|
|
• Charger
|
Integral to pack or external available
|
