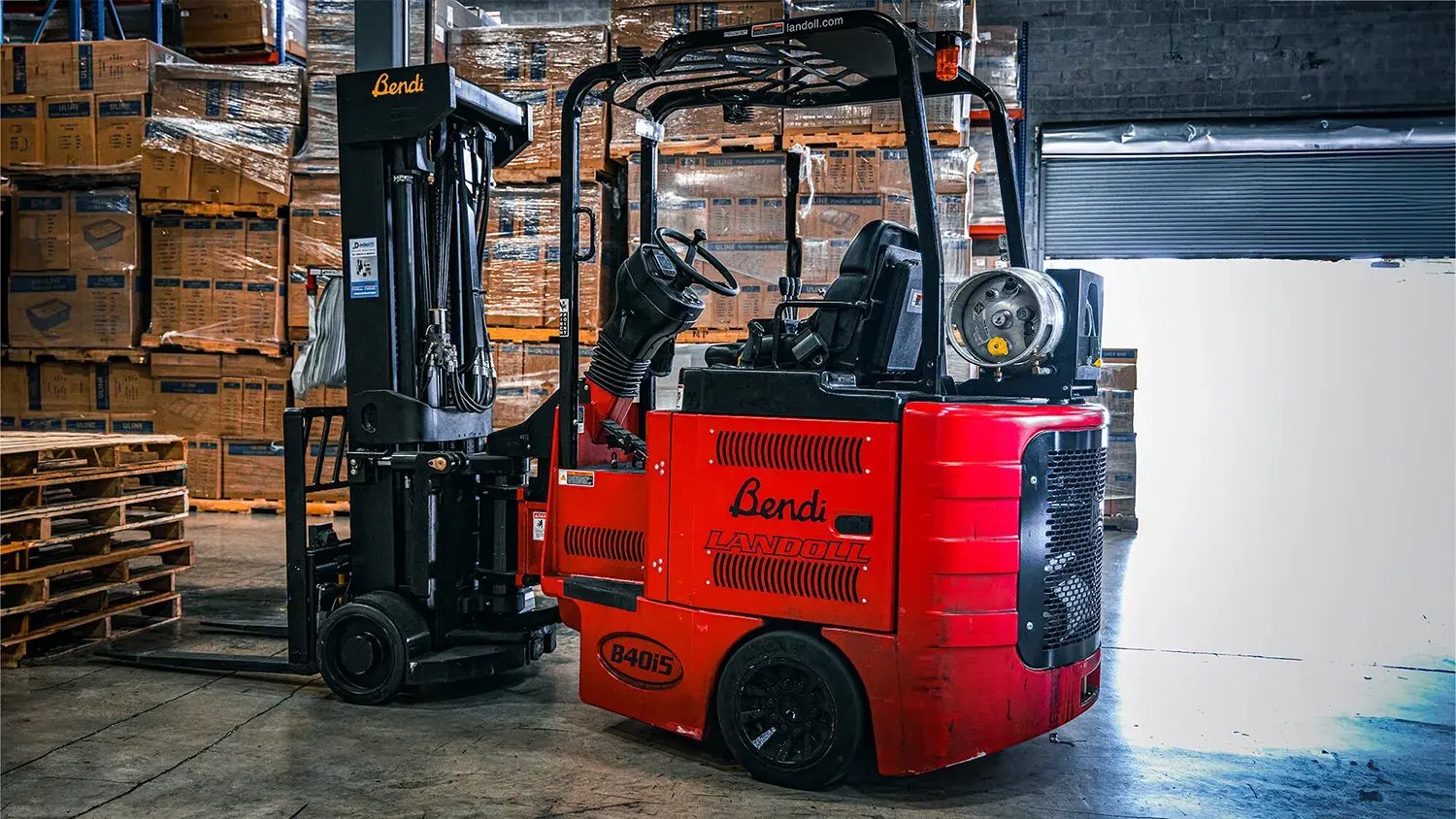

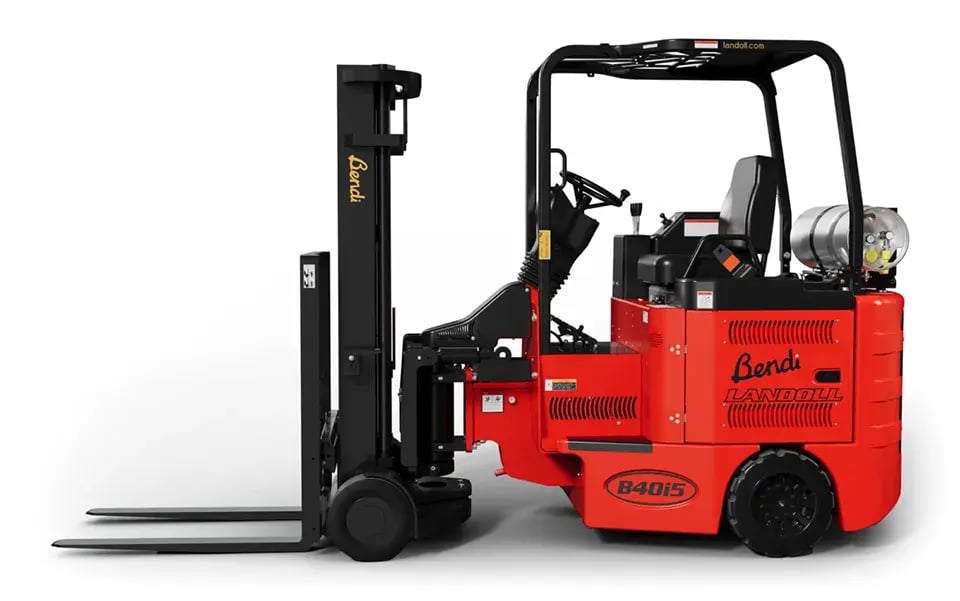

B40I5 Bendi Forklift

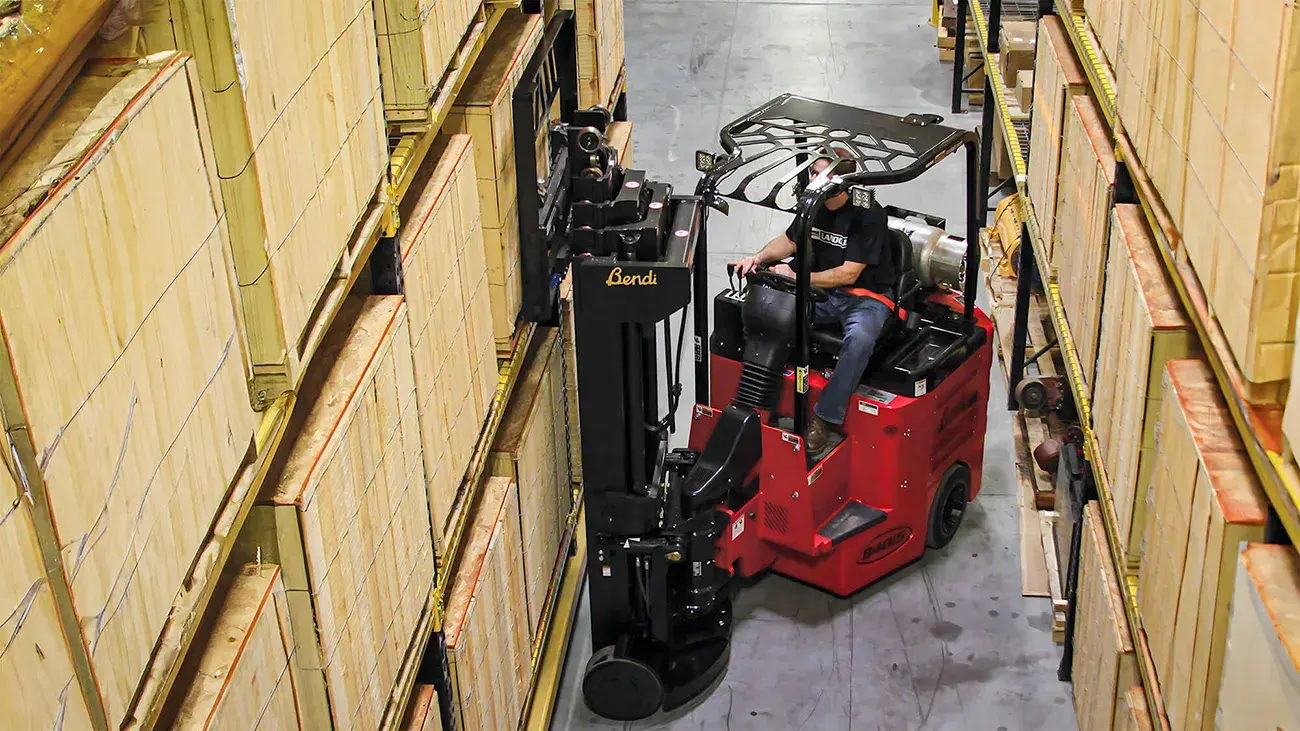

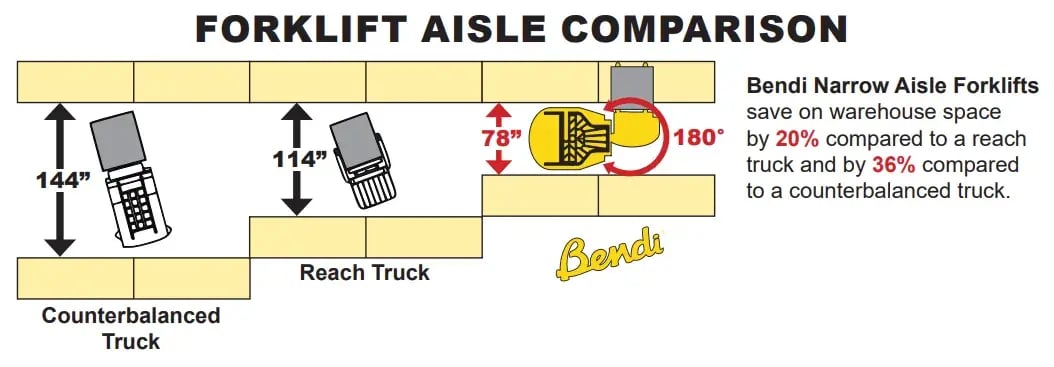

The Bendi B40i5 forklift works in aisles as narrow as 78″ (1.98M)*, has a starting capacity of 4,000 lbs (1814kg) at 24″ (600mm) load center and lift heights available to 30′ (9.14M). The LP Gas engine provides the ability to run 24/7 without battery changing or charging.
It’s a 4-wheel articulating forklift with dual rear-drive tires and soft-poly front load tires. The hydrostatic drive provides excellent traction and braking, high-speed capability and power to enable climbing steep ramps with loads. Three or four stage masts are available making this unit excellent for loading/unloading trailers, containers and highway trailers. The Bendi B40i5 can work inside and outside on paved surfaces and has a floating front axle allowing the truck to ride smoothly over uneven floors. It can do the same jobs as reach and counterbalanced trucks but in much narrower aisles.
* Based on 48” (1200mm) long x 40” (1000mm) wide load.
It’s a 4-wheel articulating forklift with dual rear-drive tires and soft-poly front load tires. The hydrostatic drive provides excellent traction and braking, high-speed capability and power to enable climbing steep ramps with loads. Three or four stage masts are available making this unit excellent for loading/unloading trailers, containers and highway trailers. The Bendi B40i5 can work inside and outside on paved surfaces and has a floating front axle allowing the truck to ride smoothly over uneven floors. It can do the same jobs as reach and counterbalanced trucks but in much narrower aisles.
* Based on 48” (1200mm) long x 40” (1000mm) wide load.
Features
- 4,000 lb. (1814kg) Capacity at 24″ (600mm) Load Center
- Four-Wheel Design, Dual Rear Wheel Drive Provides Excellent Power, Braking and Traction with Fast Travel Speeds
- Ergonomic Design for Exceptional Operator Comfort and Safety
- Integral Wide Stroke Side Shifter Makes Placing and Picking Loads Effortless
- DuraSteerTM Front Wheel Hydraulic Steering Provides Smooth, Reliable, Long-Lasting Steering Control
- Engine RPM is Controlled Automatically for all Hydraulic Functions without the Need for an Inching Pedal
- High Visibility Mast Allows Optimum Safety and Control
- Hydrostatic Braking Assures Automatic Smooth and Safe Braking when the Operator Removes Foot from the Accelerator Pedal
- Integrated on Demand Tier III Fuel System Provides Efficient Control Over Engine RPM Ensuring Maximized Fuel Efficiency
- Dash Display with Hour Meter, Fuel Gauge and Engine Monitoring
- Via-Sonic Fuel Level Sensor with 99.5% Accuracy
- Simplified Maintenance, Diagnostics and Calibration Performed through the Dash Display
Specifications
- Tier III Certified, LP Gas, 2.5L, Kubota Industrial Engine
- Gear Driven Valve Train – No Belts or Chains
- CAN-Bus Electronics for Integrated Control of Drive, Lift and Steering
- Simplified Maintenance, Diagnostics and Calibration through Dash Display
- Dash Display with Hour Meter, Fuel Gauge and Engine Monitoring
Via-Sonic Fuel Level Sensor with 99.5% Accuracy - 180° Front-End “DuraSteer” Articulation / Steering Assembly with Extended Warranty
- Heavy Duty Dual Rear Wheel Hydraulic Motors
- Automatic Hydrostatic Braking and Foot Activated Hydraulic Parking Brake
- Lift Heights to 360” (9.14M)
- 78” (1.98M) Stacking Aisle with 48” (1,219mm) Long Load
- High Visibility 3-Stage or 4-Stage Mast
- Integral 11.2” (285mm) Stroke Side Shifter and 36” (914mm) High Load Backrest
- Dual Indoor / Outdoor Capability
- Articulated 42” (1,067mm) Wide Floating Front Axle
- Large Diameter Smooth Rubber Drive Tires
- Polyurethane Load Tires
- Comfortable Seated Operation with all Truck Controls within Easy Reach
- Adjustable Vinyl Suspension Swivel Seat
- Armrest and Adjustable Steering Column, Key Switch, Horn and Seat Belt
- Hydraulic Power Steering
- 4-Post Heavy-Duty Overhead Guard
- Safety Deadman Seat Switch
- Heavy Duty Unitized Robotic Welded Chassis Design
- Provisions for RF Terminals Provided
- Accepts Class II Attachments
- Easily Accessible Components for Low-Cost Maintenance
